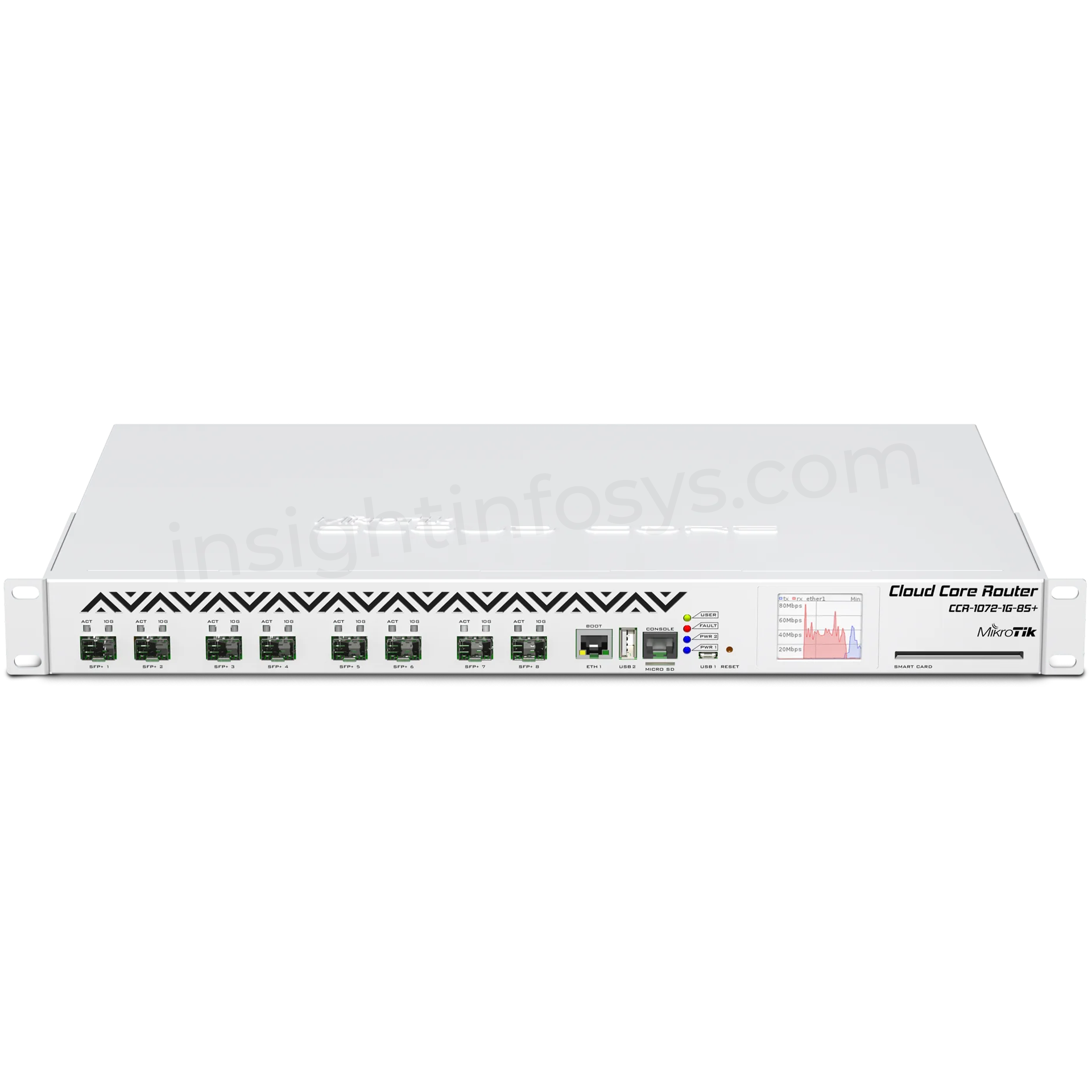

CCR1072-1G-8S+

 482,000.00

Our new flagship router, the CCR1072, is powered by a Tilera 72 core CPU, each core is clocked at 1GHz, and to fully utilize this power, the CCR1072 is equipped with eight independently connected 10G SFP+ ports and single Ethernet port for management purposes.

The unit comes equipped with installed RouterOS L6, 16GB of built in ECC RAM, touchscreen color LCD, two removable (hotplug) power supplies for redundancy, smart card slot, microUSB, regular size USB, microSD and 2x M.2 slots for additional storage.

Thanks to the unique 72 core processor and ports that are directly connected to the CPU, CCR1072 is capable of over 120 million packets per second throughput.

Specifications

Details
Product code CCR1072-1G-8S+
Architecture TILE
CPU TLR4-07280
CPU core count 72
CPU nominal frequency 1 GHz
Dimensions 443 x 315 x 44 mm
RouterOS license 6
Operating System RouterOS
Size of RAM 16 GB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -20°C to 60°C
MTBF Approximately 200’000 hours at 25C
Suggested price $3050.00

Powering

Details

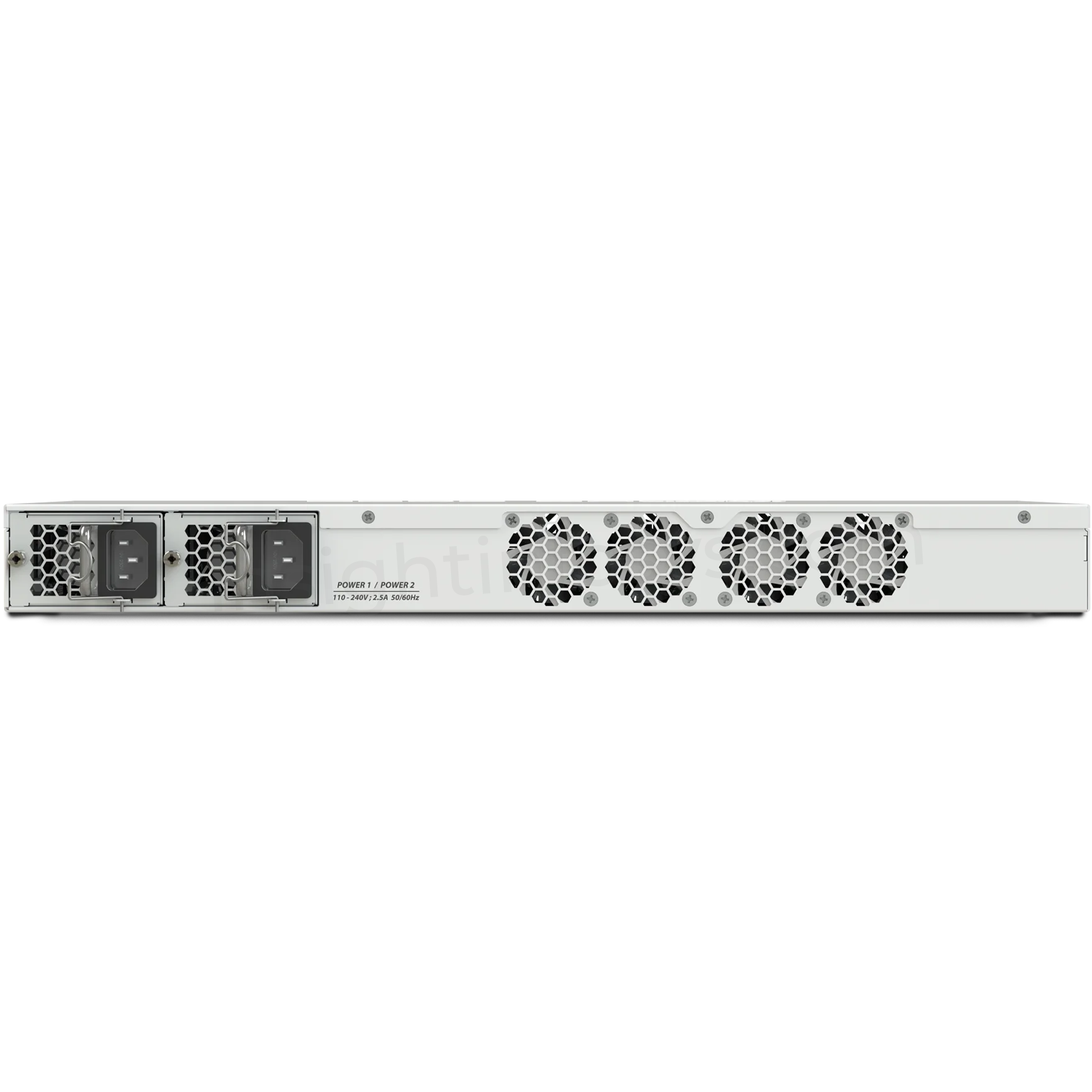

Number of AC inputs 2
AC input range 100-240
Max power consumption 125 W
FAN count 4

Ethernet

Details
10/100/1000 Ethernet ports 1

Fiber

Details
SFP+ ports 8

Peripherals

Details
Memory card type microSD, 2x M.2
Memory Cards 3
Serial port RJ45
Number of USB ports 2
USB Power Reset Yes
USB slot type microUSB type AB; USB type A
Max USB current (A) 1
Smart card slot Yes

Other

Details
CPU temperature monitor Yes
Current Monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
