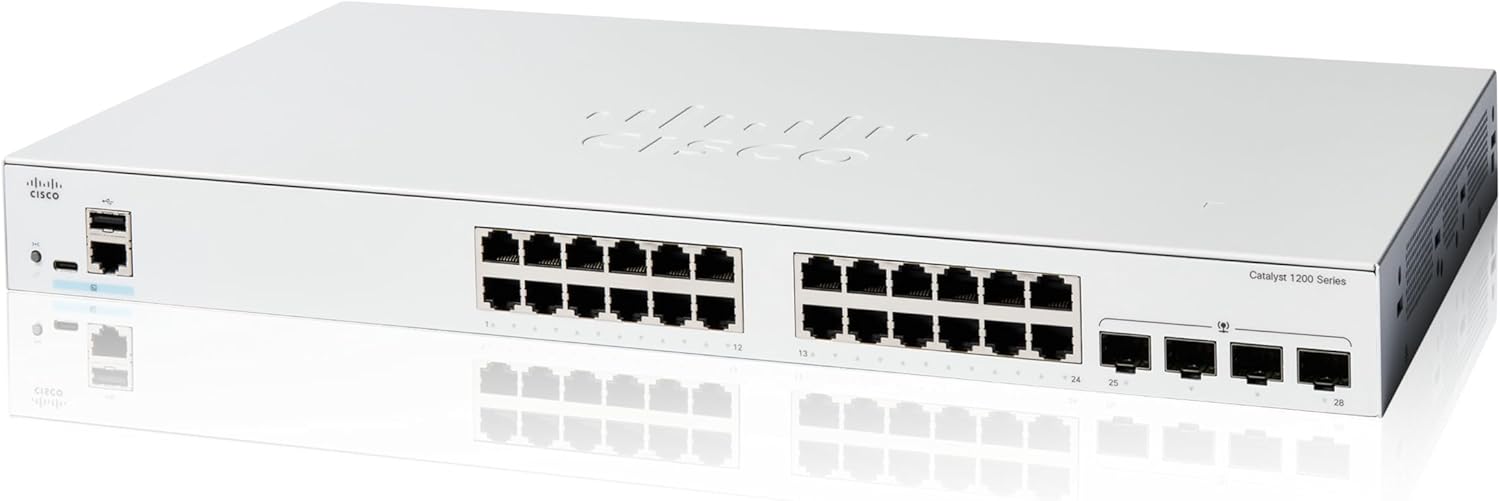

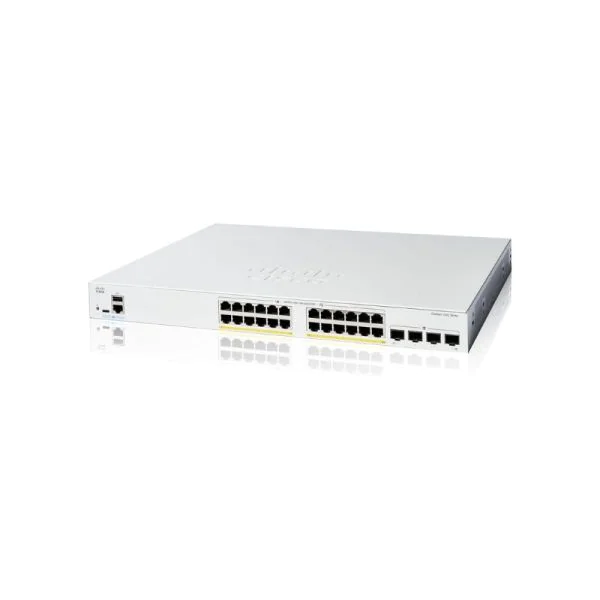

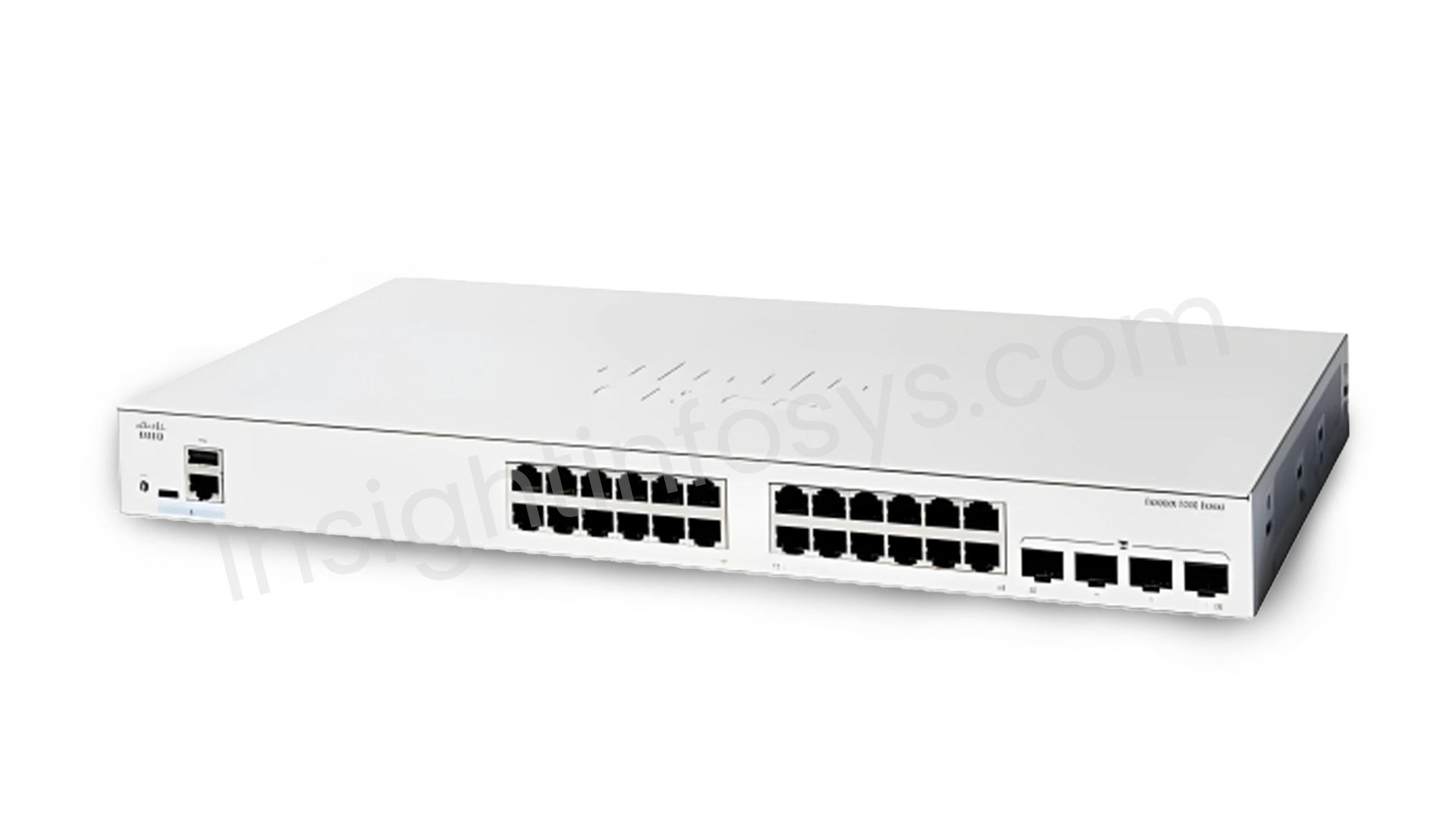

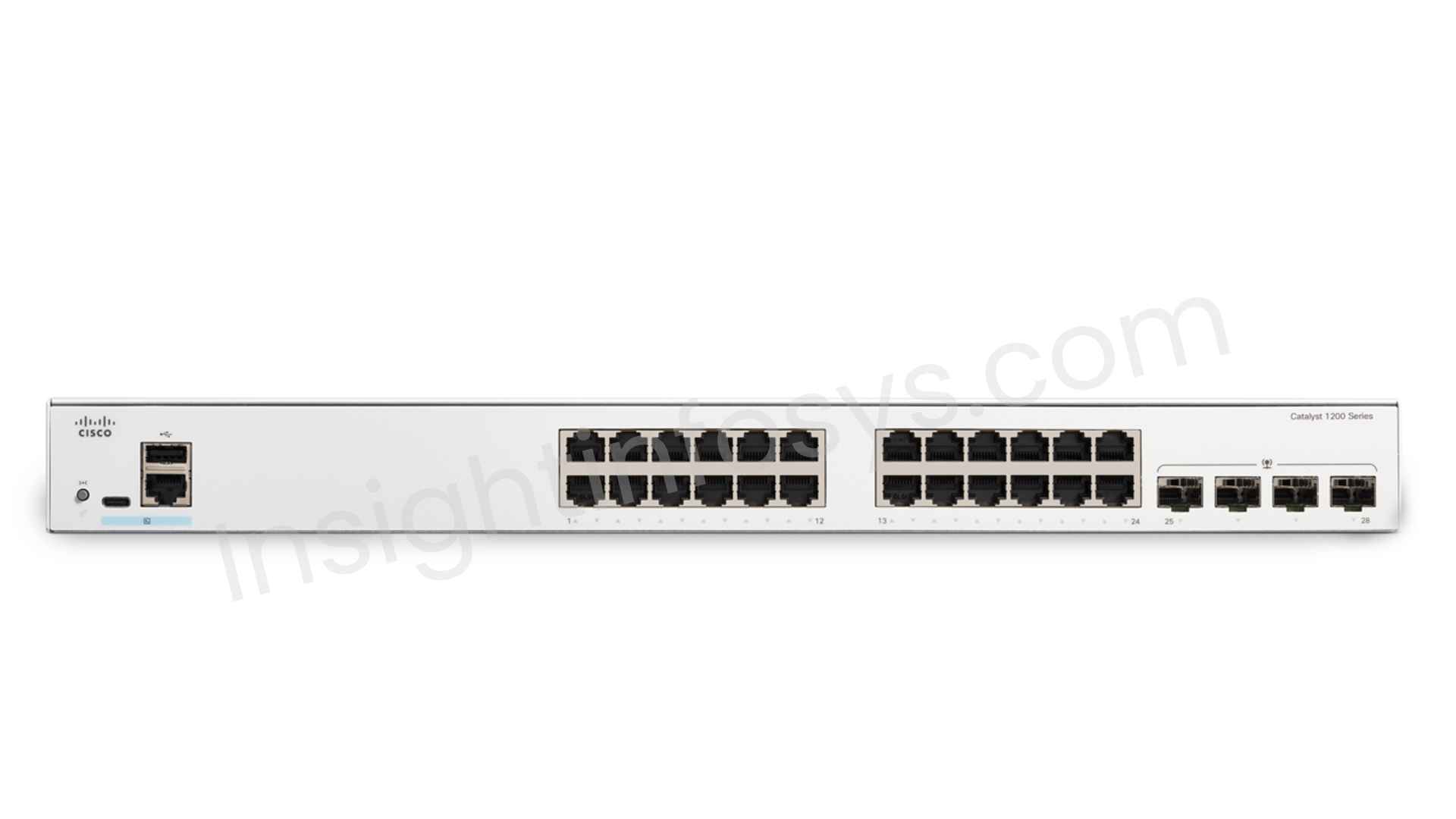

CISCO C1200-24T-4G

The Cisco 1200-24T-4G is a cost-effective, robust network performance switch for small to medium-sized businesses. With 24 Gigabit Ethernet ports and 4 Gigabit SFP uplinks in a compact, rack-mountable design, it supports high-speed, reliable connectivity tailored for growing business networks. Operating on a specialized Linux OS, it provides versatile management through Cisco Business Dashboard and mobile apps, enabling centralized, zero-touch configuration and control.

KEY FEATURES

1. 24 Gigabit Ethernet Ports + 4 Gigabit SFP Uplinks that provide high-speed, flexible connectivity options for diverse network needs.
2. Layer 3 Static Routing Support enables efficient traffic segmentation and inter-VLAN communication, improving network efficiency.
3. Fanless, Rack-Mountable Design with silent operation, suitable for office and small data center deployments.
4. Energy Efficient Design that supports IEEE 802.3az Energy Efficient Ethernet, power management, and auto shutdown on inactive ports

SPECIFICATION OF CISCO C1200-24T-4G

PRODUCT DETAILS

• Brand: Cisco
• Series: Catalyst1200 Series
• Model Number: C1200-24T-4G
• Product Type: Managed Ethernet Switch
• Item Weight: 63 kg (5.80 lb)
• Product Dimensions: 445 x 240 x 44 mm (17.5 x 9.45 x 1.73 in)
• Color: White
• Manufacturer: Cisco

⇒ Technical Datasheet

PERFORMANCE

The switch delivers a switching capacity of 56 Gbps and a forwarding rate of up to 41.66 million packets per second, ensuring fast and efficient data transfer across the network. It supports Layer 2 features, such as VLAN tagging, multiple spanning tree protocols, link aggregation (LACP), and Layer 3 static routing, for efficient traffic management and inter-VLAN communication.

RELIABILITY

Designed for consistent uptime, the C1200-24T-4G features fanless operation for silent, reliable use and offers advanced protocols such as RSTP and MSTP to prevent network loops and ensure fast reconvergence. The switch’s MTBF exceeds 2 million hours, reflecting strong durability for business-critical applications.

ENERGY CONSUMPTIONS

Energy efficiency is prioritized through support for IEEE 802.3az Energy Efficient Ethernet, port power management, and automatic power shutdown on inactive ports, which significantly reduces overall power consumption and cooling requirements.

SECURITY FEATURES

The switch leverages comprehensive security measures, including IEEE 802.1X port-based access control, Denial-of-Service (DoS) attack prevention, and extensive Access Control Lists (ACLs) to fortify the network against unauthorized access and attacks.

APPLICATION AREAS

The Cisco Catalyst 1200-24T-4G switch is an ideal solution for a wide range of application areas, including hospitals, banks, small and medium-sized offices, branch offices, retail stores, educational institutions, healthcare clinics, and law firms. It is also well-suited for deployment in manufacturing sites and temporary business locations.

CONCLUSION

The Cisco C1200-24T-4G is an excellent choice for small to medium-sized business networks due to its combination of 24 Gigabit Ethernet ports and 4 modular SFP uplinks, delivering high-speed, reliable connectivity. It features a fanless, energy-efficient design and supports Layer 3 routing for efficient network segmentation. Hence, from its combination of reliable connectivity, security features, and centralized management, the CISCO C1200-24T-4G switch is perfect for securing and enhancing various business networks.
