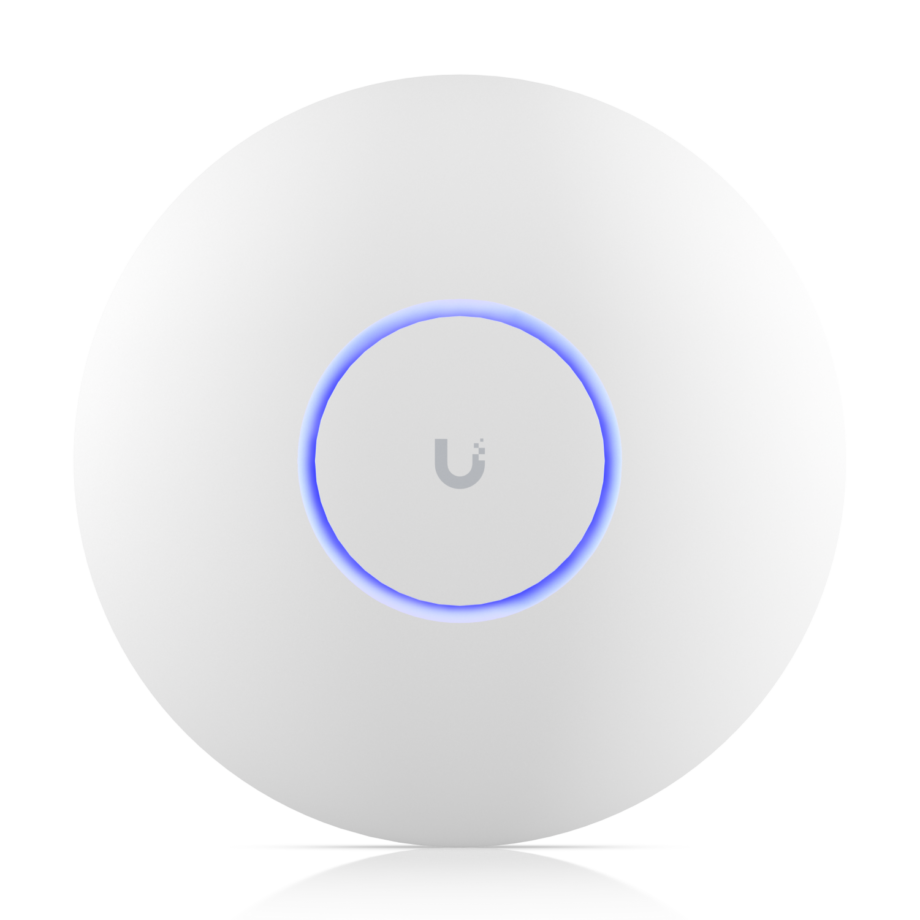

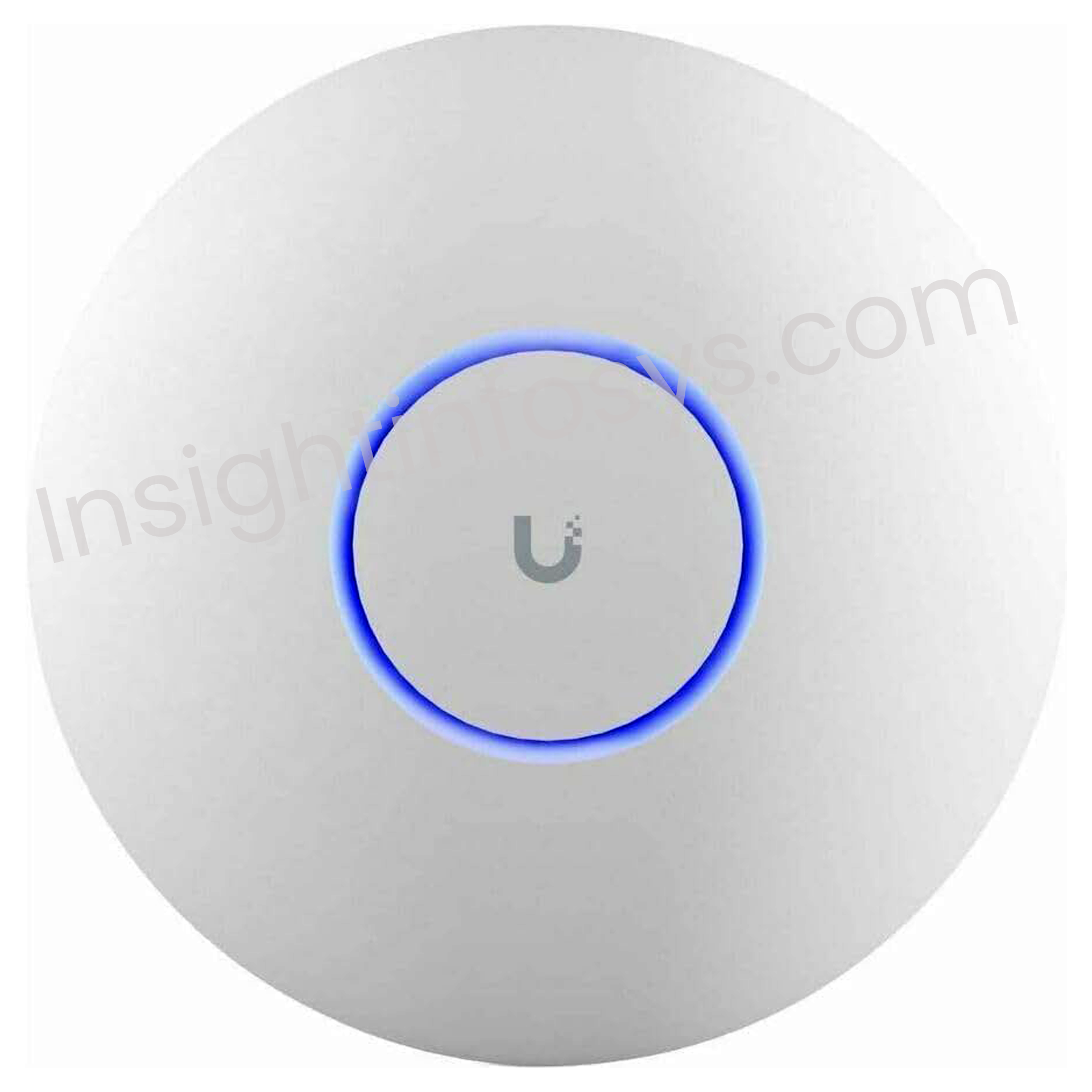

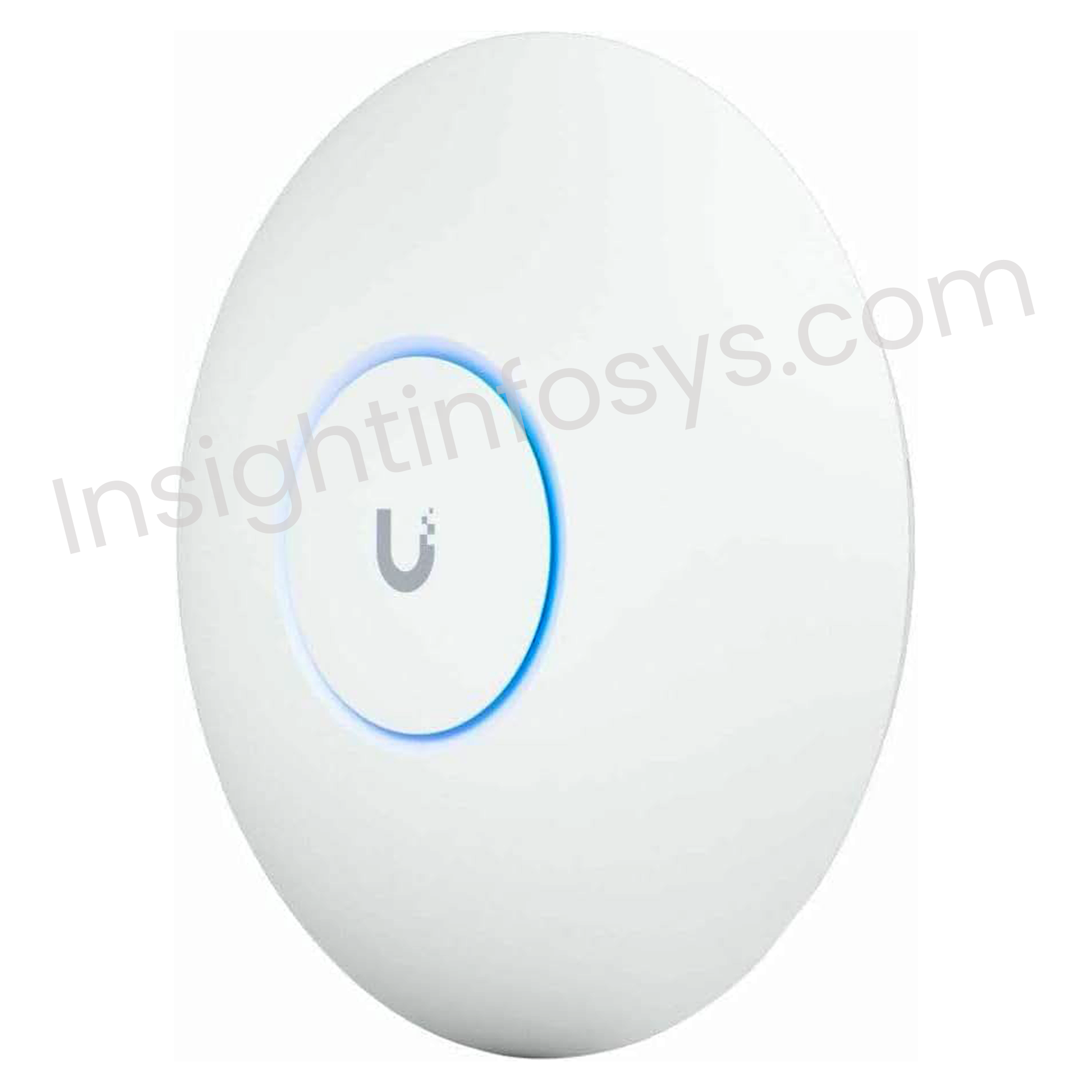

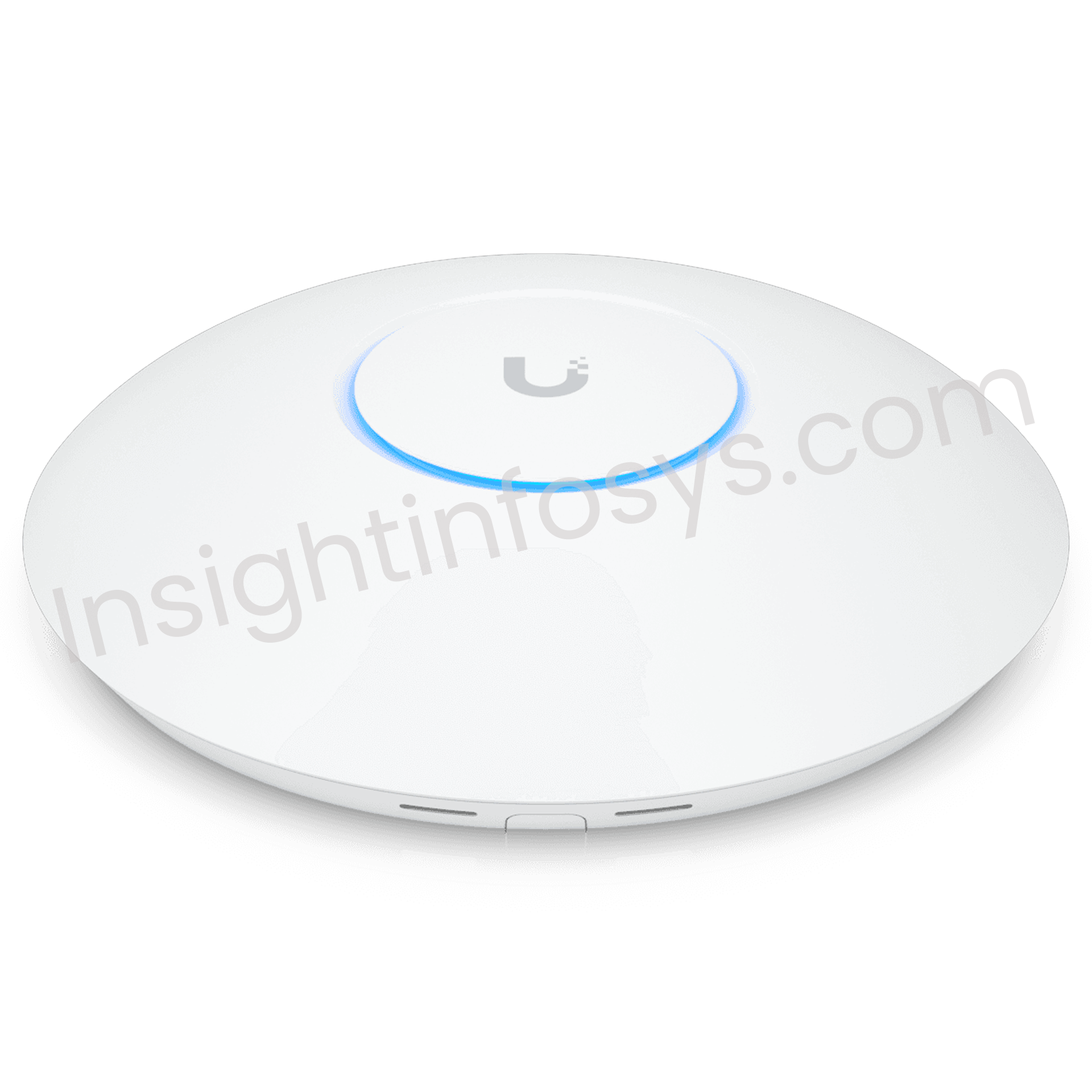

UBIQUITI UniFi U7-PRO ACCESS POINT

The UniFi U7-Pro is a high-performance, next-generation, premium indoor Wi-Fi 7 access point designed to deliver blazing-fast wireless connectivity with ultra-low latency and enhanced network capacity. This U7-Pro AP supports the latest Wi-Fi 7 standard, ensuring future-proof performance for bandwidth-intensive applications and smart devices. It supports over 300 simultaneous clients across a 140 m² (1,500 ft²) coverage area. Its sleek design and UniFi Controller integration make deployment and management simple and efficient. The UniFi U7-PRO is an ideal fit for indoor high-density areas, such as conference rooms and creative studios.

KEY FEATURES:

• Wi-Fi 7 (802.11be) standard support with multi-link operation (MLO) for improved throughput and reduced latency
• Tri-band operation: 2.4 GHz, 5 GHz, and 6 GHz bands to optimize spectrum usage
• Multi-user MIMO (MU-MIMO) technology supports simultaneous connections to multiple devices
• Integrated Bluetooth Low Energy (BLE) for location-based services and easy setup
• 802.3at PoE+ powered for flexible and clean installations
• Seamless integration with UniFi Network Controller for centralized monitoring and management
• Sleek, low-profile design suitable for ceiling or wall mounting

SPECIFICATIONS OF U7 -PRO

PRODUCT DETAILS:

• Brand: Ubiquiti
• Series: UniFi 7
• Model Number: U7-Pro
• Product Type: Wireless Access Point
• Item Weight: 680 g (1.5 lb)

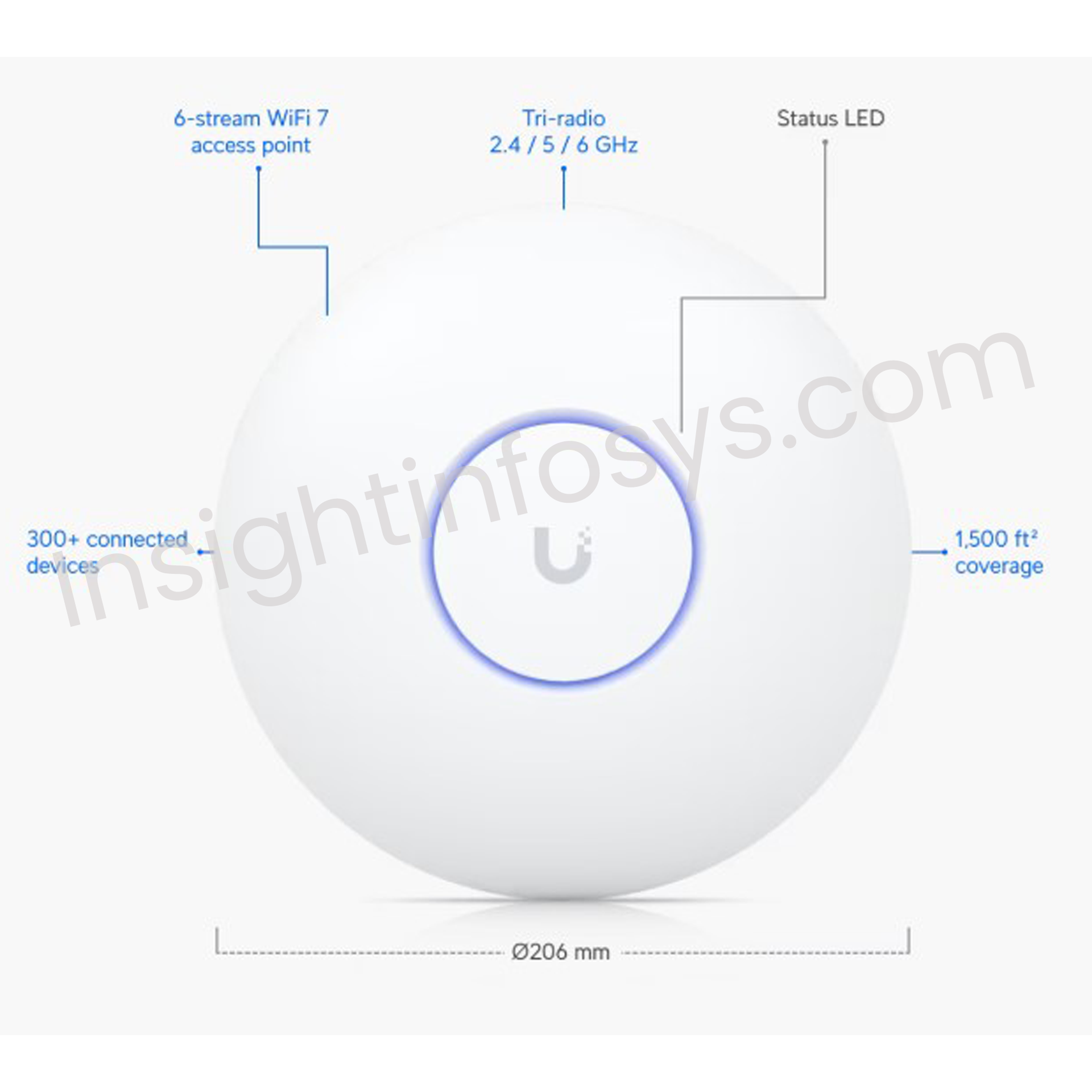

• Product Dimensions: Ø206 x 46 mm (Ø8.1 x 1.8″)
• Color: White
• Manufacturer: Ubiquiti Inc.

⇒Technical Datasheet

PERFORMANCE

The UniFi U7 Pro delivers exceptional performance with maximum data rates of 5.8 Gbps on the 6 GHz band (BW320), leveraging wide channel bandwidths for ultra-high-speed connectivity, 4.3 Gbps on the 5 GHz band (BW240) for high-throughput applications, and 688 Mbps on the 2.4 GHz band (BW40) for legacy devices and IoT. It achieves an aggregate throughput of up to 10.8 Gbps across tri-band operation, utilizing WiFi 7’s multi-link operation (MLO) for reduced latency and enhanced efficiency, with support for over 300 simultaneous clients using MU-MIMO and OFDMA.

POWER CONSUMPTION

The Ubiquiti UniFi U7 Pro access point has a maximum power consumption of 21W and is powered by 802.3at PoE+. It receives both power and data through its single 2.5 GbE RJ45 port. This power requirement means it needs to be connected to a network switch or injector that supports the higher Power over Ethernet Plus (PoE+) standard. Using a standard PoE (802.3af) device, which supplies less power, may cause the U7 Pro to operate with reduced functionality, such as disabling its 6 GHz radio band.

RELIABILITY

The UniFi U7 Pro ensures high reliability with an operating temperature range of -30 to 40° C (-22 to 104° F), making it suitable for challenging indoor environments. It operates effectively in 5 to 95% noncondensing humidity, resisting moisture and condensation. The device’s polycarbonate and metal enclosure, combined with a stainless steel (SUS304) and galvanized steel (SGCC) mount, provides corrosion resistance and long-term durability. NDAA compliance ensures suitability for secure government or regulated deployments, with certifications from CE, FCC, IC, and Anatel confirming electromagnetic compatibility and safety

ENERGY CONSUMPTION

The UniFi U7 Pro is designed for energy efficiency, with a maximum power consumption of 21W, ensuring high-performance WiFi 7 capabilities without excessive energy use. It operates within a supported voltage range of 44—57V DC, offering flexibility for various PoE+ infrastructure setups. The PoE+ (Power over Ethernet Plus) power method delivers both power and data over a single cable, simplifying installation and reducing cabling complexity, making it ideal for energy-efficient deployments in dense or large-scale environments.

APPLICATION AREAS

The UniFi U7-Pro is ideal for high-density environments such as corporate offices, education campuses, conference centers, and public venues where robust, ultra-fast wireless connectivity is critical. It supports high throughput for streaming, video conferencing, AR/VR, and IoT devices, ensuring a seamless user experience.

CONCLUSION

The UniFi U7 Pro is the perfect fit due to its WiFi 7 technology with tri 2.4/5/6 GHz bands for over 300 clients in diverse settings like schools, offices, and hotels. It offers robust security with Guest Traffic Isolation, energy-efficient operation, and advanced features like meshing and fast roaming. Its durable, NDAA-compliant design and UniFi Network management ensure reliability and scalability at a competitive price.
