CCR1036-8G- 2S+
₨ 225,000.00
Our fastest router has now become even better – the new CCR1036-8G-2S+ now has two SFP+ ports for 10G interface support (SFP+ module available separately). It uses the same 36 core Tilera CPU as our other CCR1036 model, and delivers the same performance.

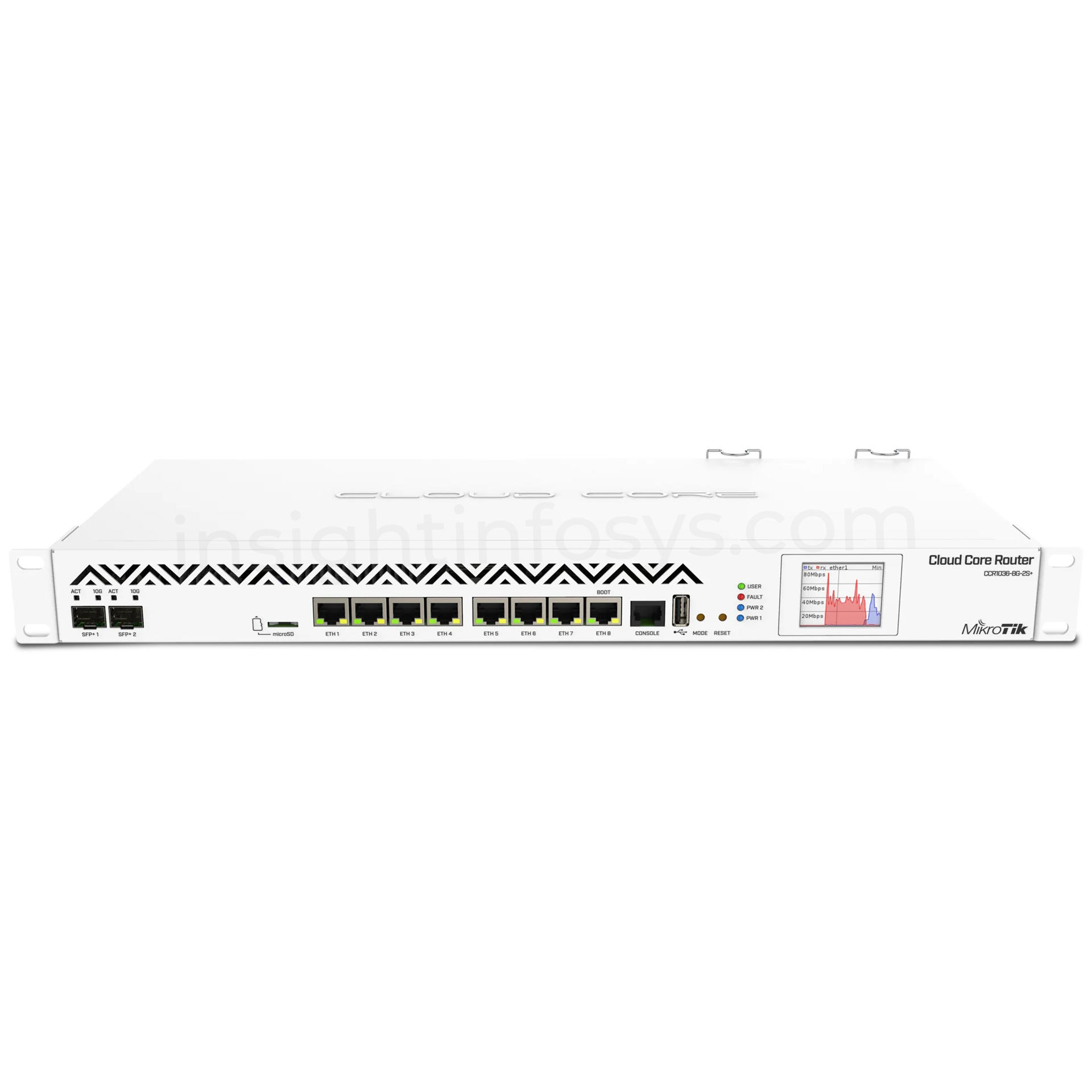

The device comes in a 1U rackmount case, has two SFP+ ports, eight Gigabit ethernet ports and serial console port.
The new version of CCR1036-8G-2S+ has onboard 4GB of RAM, onboard M.2 PCIe 4x slot, full size USB slot and dual PSU for redundancy!
Supports both SFP (1.25G) and SFP+ (10G) modules
| Product code | CCR1036-8G-2S+ |
| Architecture | TILE |
| CPU | TLR4-03680 |
| CPU core count | 36 |
| CPU nominal frequency | 1.2 GHz |
| Dimensions | 443 x 193 x 44 mm |
| RouterOS license | 6 |
| Operating System | RouterOS |
| Size of RAM | 4 GB |
| Storage size | 1 GB |
| Storage type | NAND |
| Tested ambient temperature | -20°C to 60°C |
| MTBF | Approximately 200’000 hours at 25C |

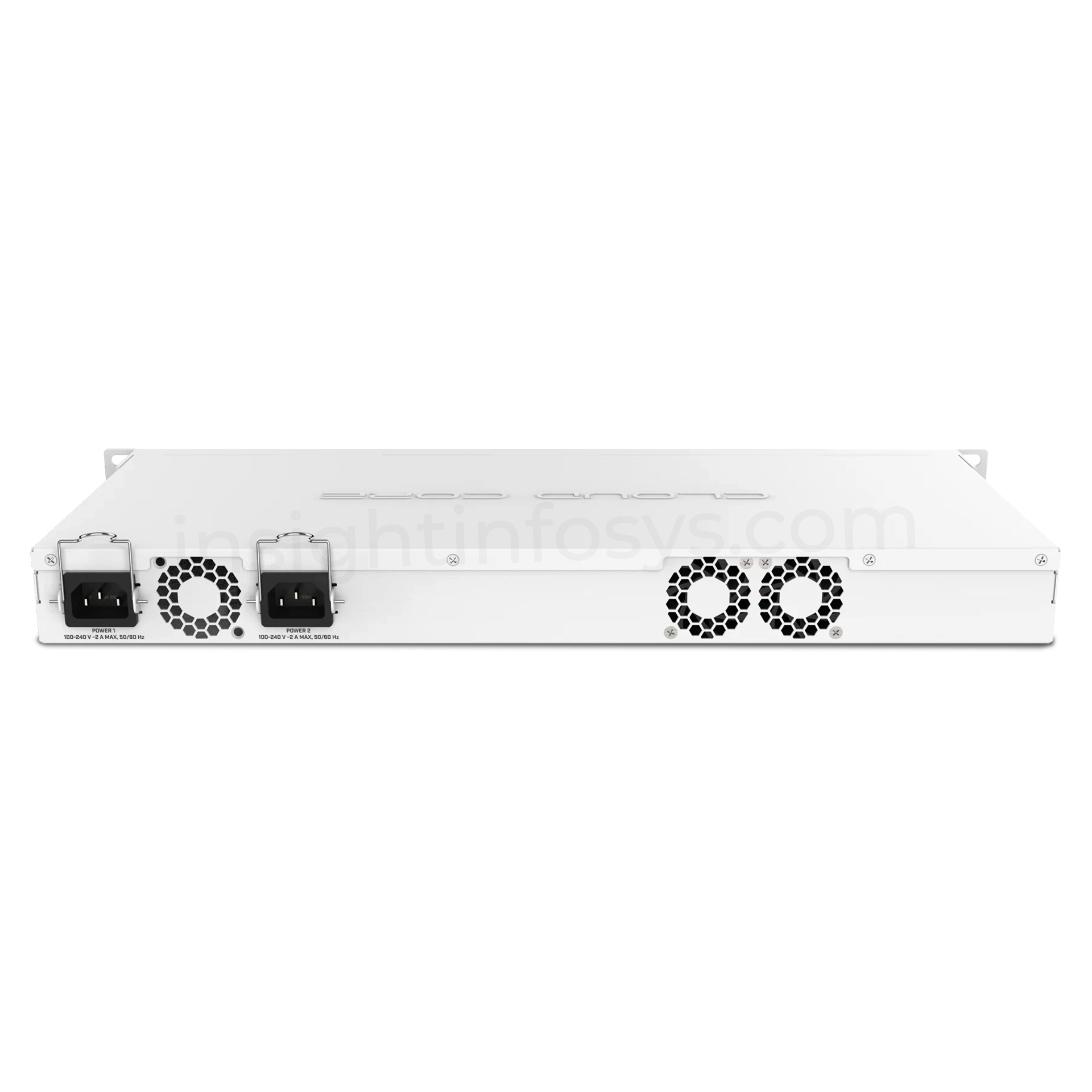

Powering
| Details | |
|---|---|
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Max power consumption | 73 W |
| FAN count | 2 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 8 |
Fiber
| Details | |
|---|---|
| SFP DDMI | Yes |
| SFP+ ports | 2 |
Peripherals
| Details | |
|---|---|
| Memory card type | microSD |
| Memory Cards | 1 |
| Serial port | RJ45 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Mode button | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
