Cisco CBS350-24XS-EU

₨ 450,000.00

24 10G SFP+ ports
Advanced control features and Energy-efficient design
Robust network security, including ACLs, 802.1X authentication, and port security
Compact 1U rack-mount form factor
Quality of Service (QoS) features and Dual image support
Support for IPv6 and comprehensive Layer 3 routing protocols
Cisco Business Dashboard supports simplified network management

5 in stock

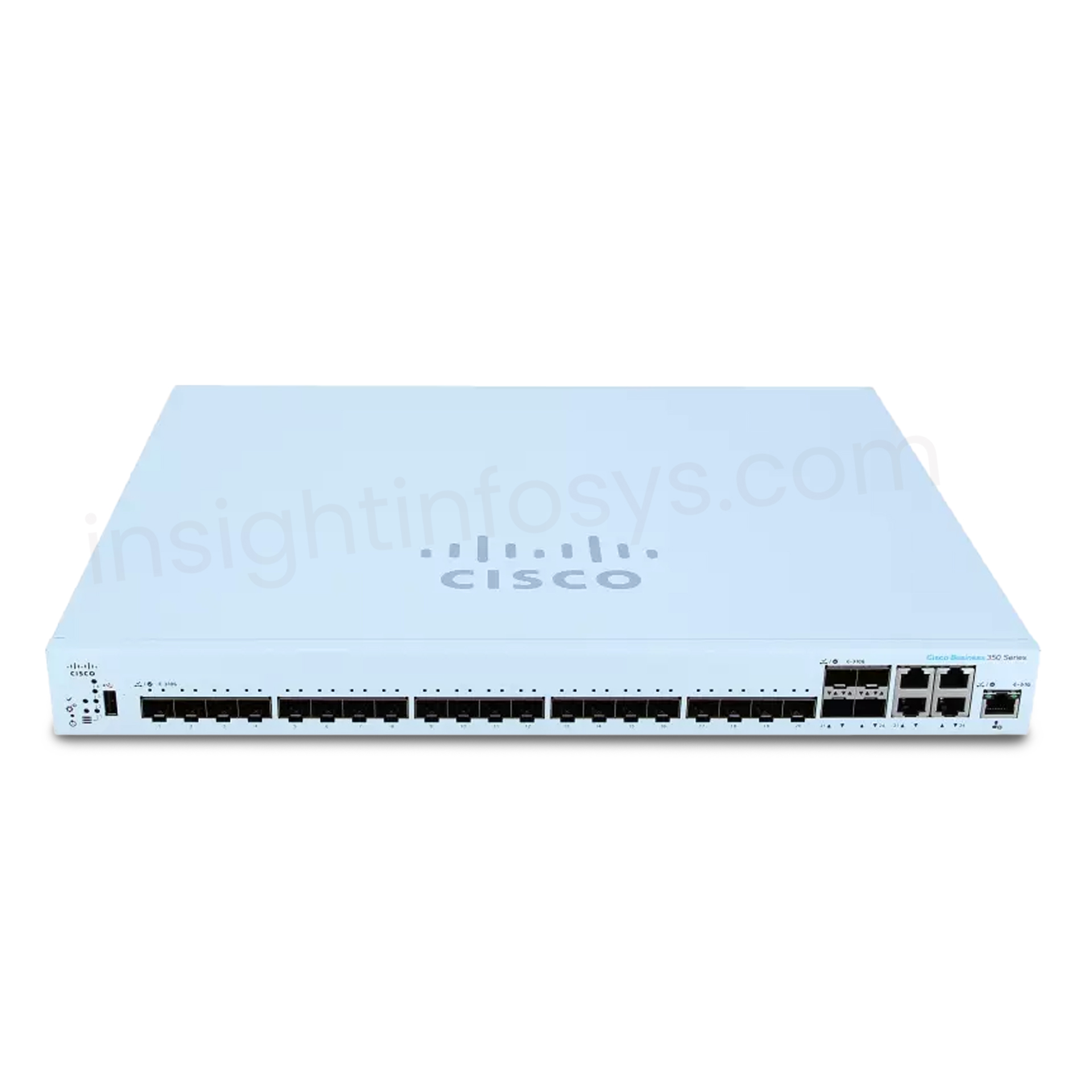

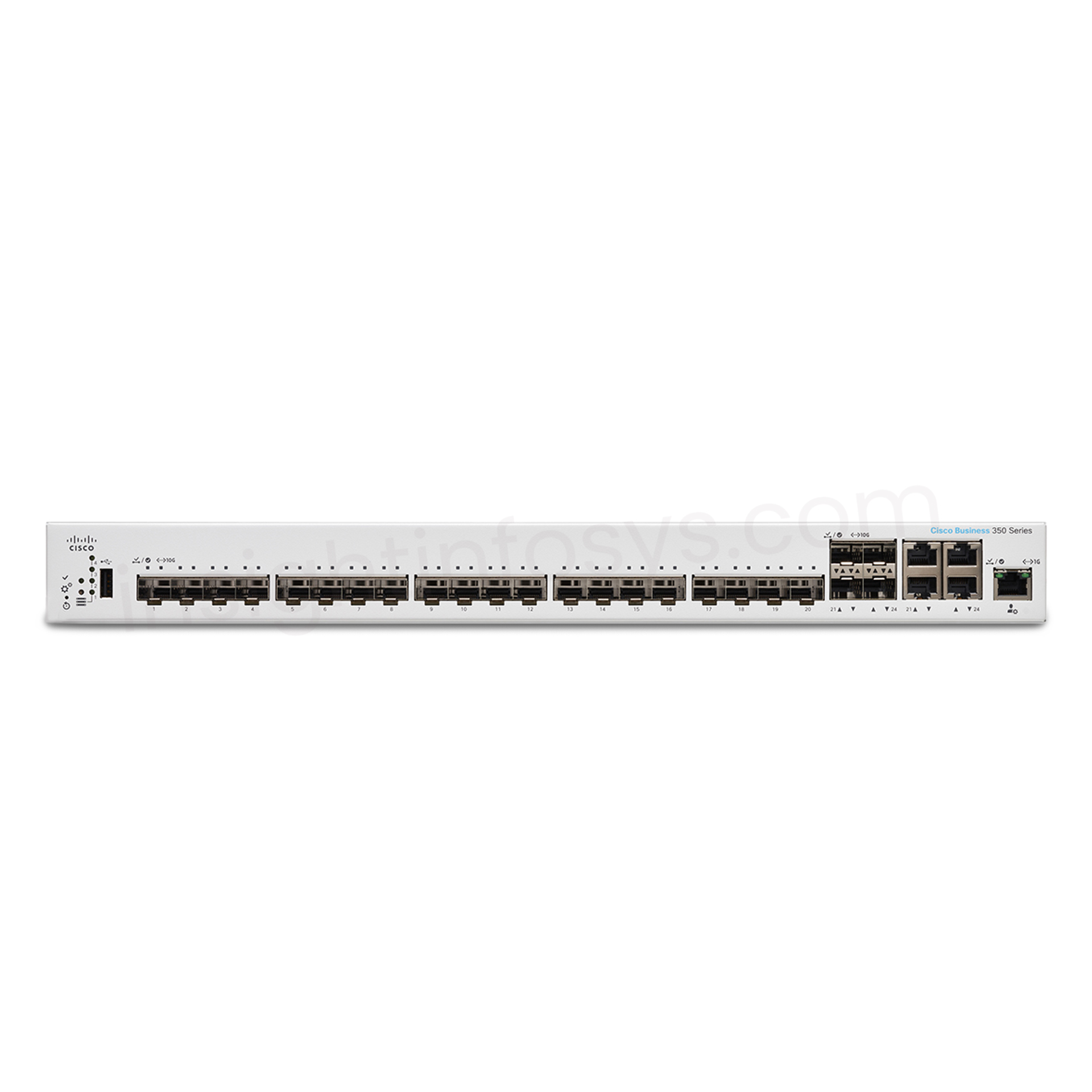

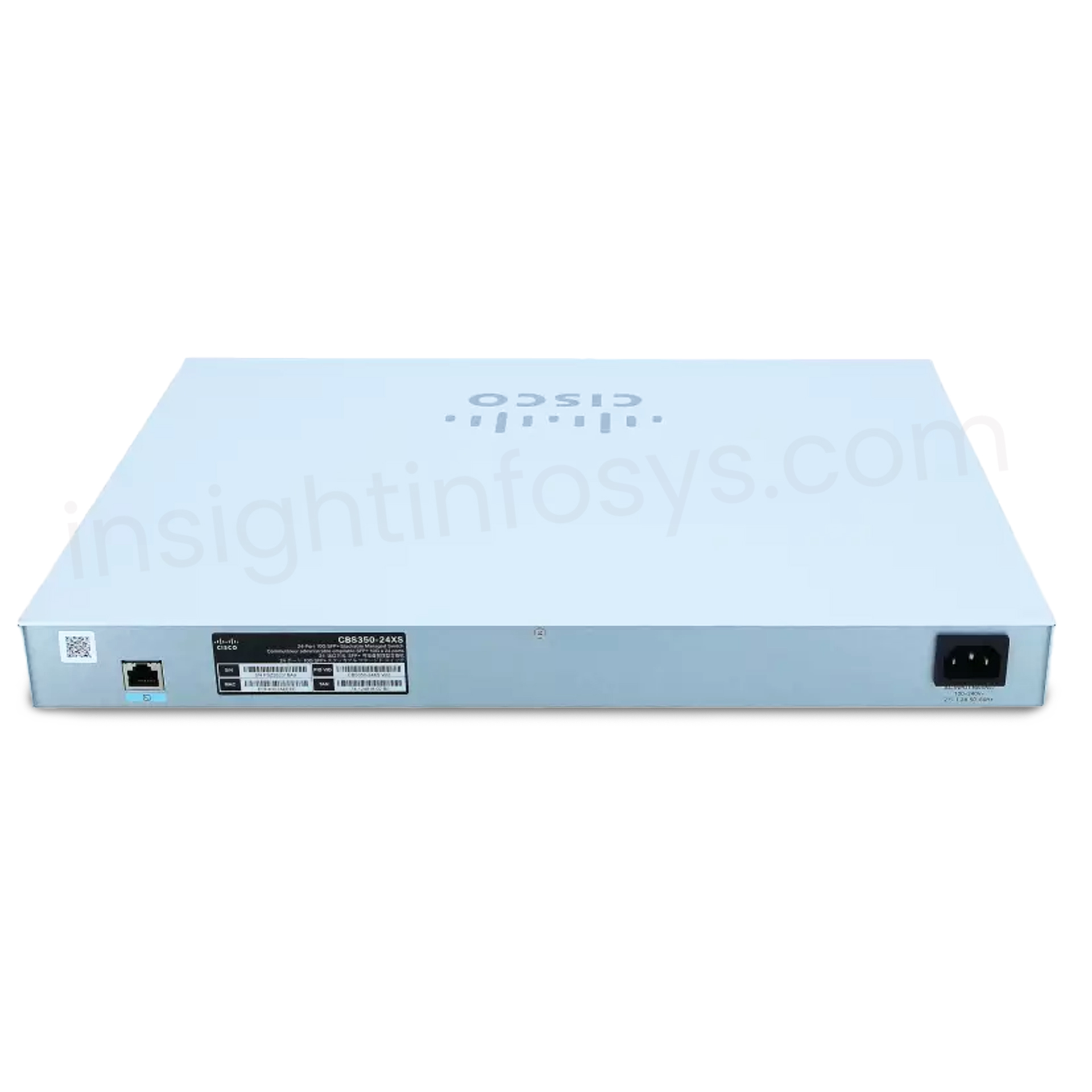

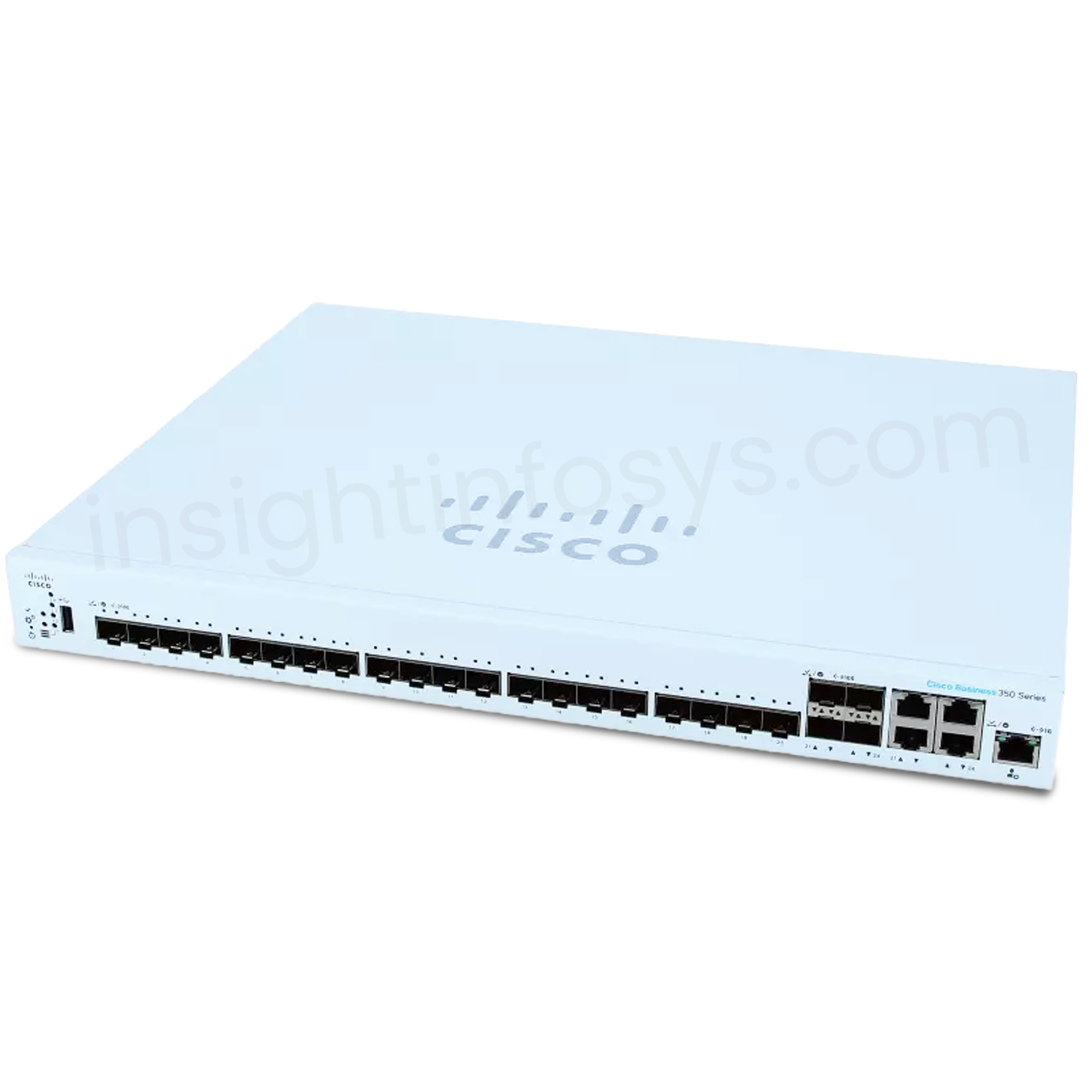

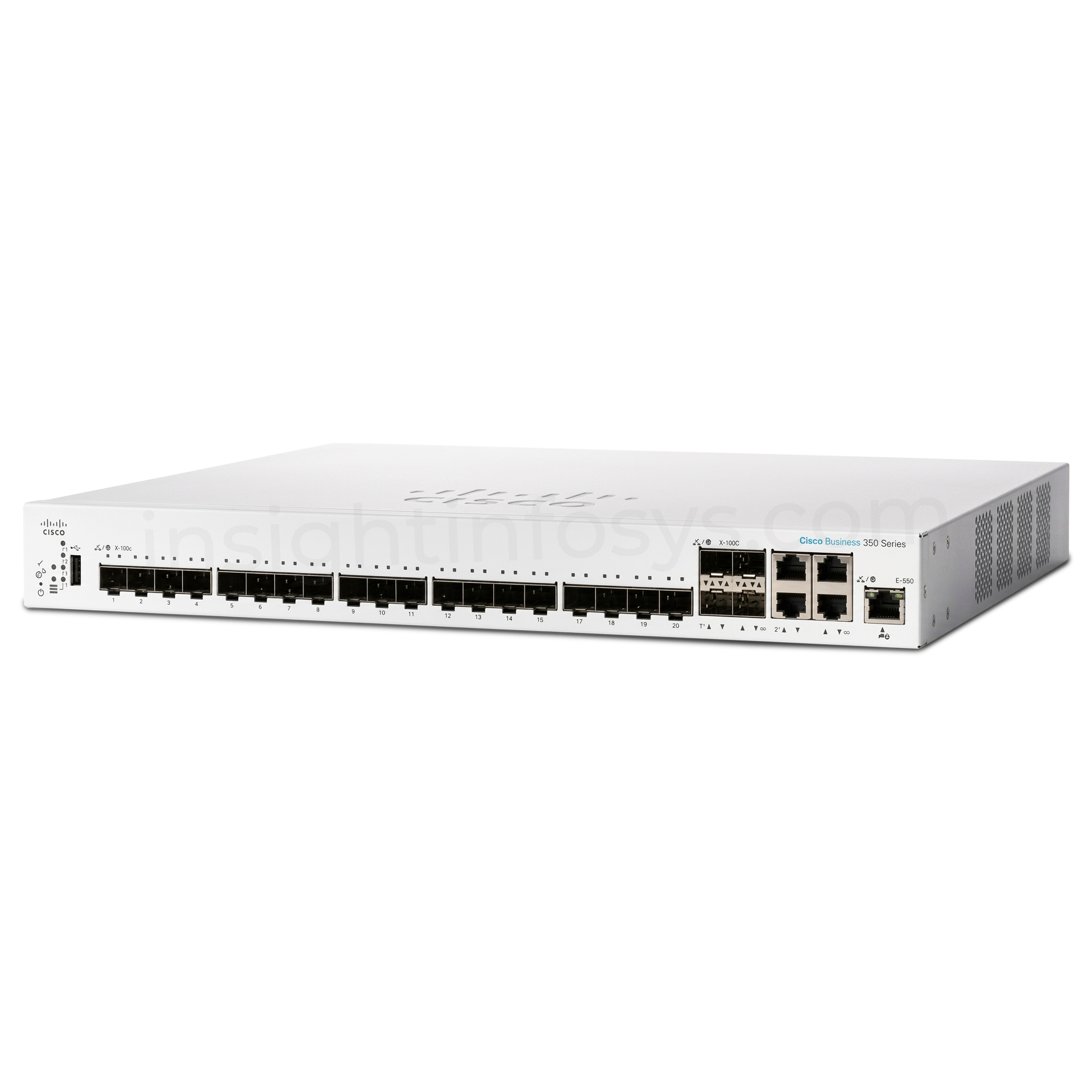

The Cisco CBS350-24XS-EU is a high-performance managed switch with 24 10G SFP+ ports designed to provide fast, reliable, and secure network connectivity for growing business environments. It supports advanced Layer 3 features and offers a compact, rack-mountable form factor suitable for enterprise-grade deployments. This model is engineered to handle data-intensive applications with ease, ensuring scalability and operational efficiency.

KEY FEATURES

24 10G SFP+ ports delivering superior high-speed connectivity
Advanced control features, including VLANs, link aggregation, and network monitoring
Energy-efficient design with power-saving technologies
Robust network security, including ACLs, 802.1X authentication, and port security to protect against unauthorized access
Compact 1U rack-mount form factor for easy integration into existing network infrastructure
Quality of Service (QoS) features to prioritize critical traffic, such as VoIP and video conferencing
Dual image support for seamless firmware upgrades with minimal downtime
Support for IPv6 and comprehensive Layer 3 routing protocols
Cisco Business Dashboard supports simplified network management

SPECIFICATIONS OF CBS350-24XS-EU

PRODUCT DETAILS

Brand: Cisco
Series: Cisco Business 350 Series
Model Number: CBS350-24XS-EU
Product Type: Managed L3 Ethernet Switch (stackable, rack-mountable)
Item Weight: 4.4 kg (9.7 lbs)
Product Dimensions: 440 X 350 X 44 mm
Color: Grey
Manufacturer: Cisco Systems, Inc

⇒TECHNICAL DATASHEET

PERFORMANCE

The CBS350-24XS-EU provides a switching capacity of 480 Gbps and a forwarding rate of 357.14 million packets per second (Mpps), ensuring wire-speed, nonblocking performance. This high throughput supports demanding business applications and helps maintain consistent network responsiveness even under heavy traffic loads.

POWER CONSUMPTION

This switch features an internal power supply supporting 100-240 VAC input at 50-60 Hz. Maximum power consumption is approximately 100W, with advanced energy-saving capabilities such as Energy Efficient Ethernet (IEEE 802.3az), port power scheduling, and cable length-based power adjustment that reduce operational costs while maintaining performance.

RELIABILITY

Reliability is enhanced through features like dual images for uninterrupted software upgrades, rapid spanning tree protocols for loop prevention, and advanced security mechanisms, including dynamic ARP inspection, IP source guard, and DHCP snooping, to safeguard network integrity and availability.

VERSATILITY

Versatility is achieved with comprehensive Layer 3 capabilities, including static routing, dynamic routing protocols, multicast support, and VLAN segmentation. The switch’s compact size, rack-mount compatibility, and support for Cisco’s Business Dashboard and Plug and Play provisioning ease deployment and network scaling.

CONCLUSION

The Cisco CBS350-24XS-EU managed switch is a robust, scalable, and energy-efficient solution tailored for businesses that require high-speed 10G connectivity with strong Layer 3 features and security. Its advanced management options, reliable performance, and compact design make it a fitting choice to support data-intensive and business-critical applications with ease and security.
