USW-Pro-24-Poe

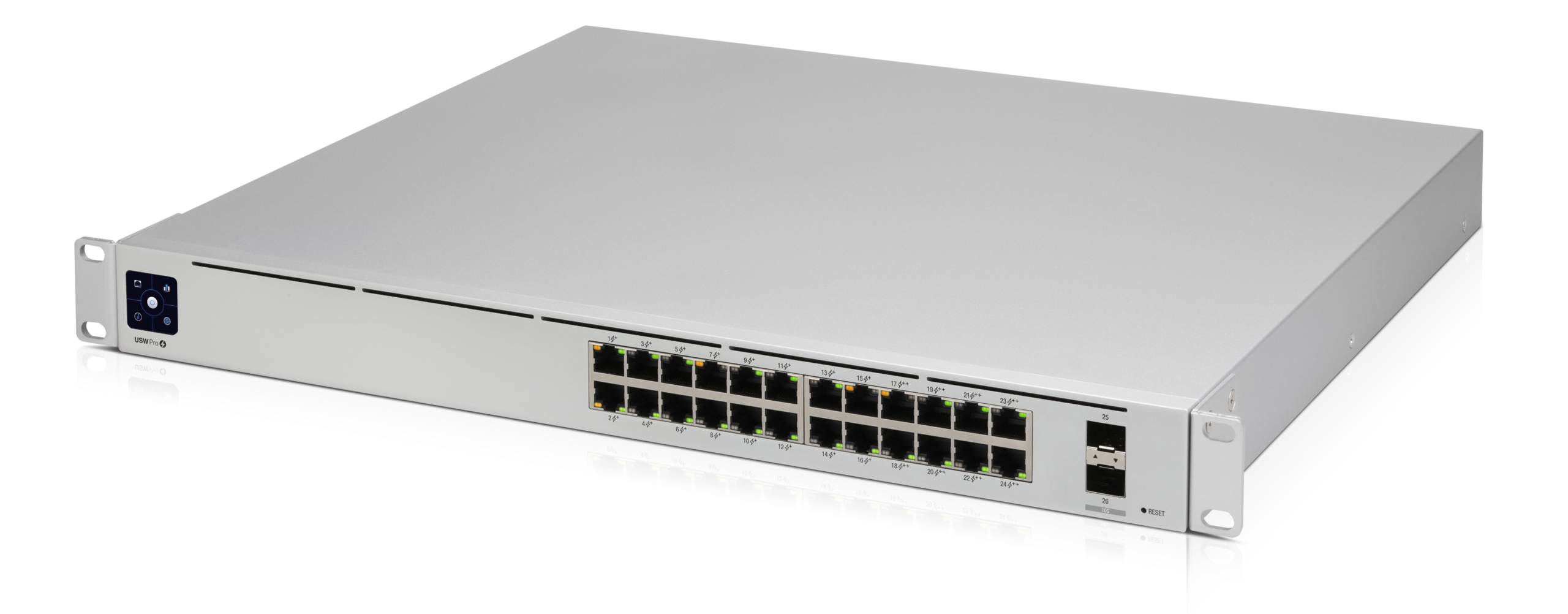

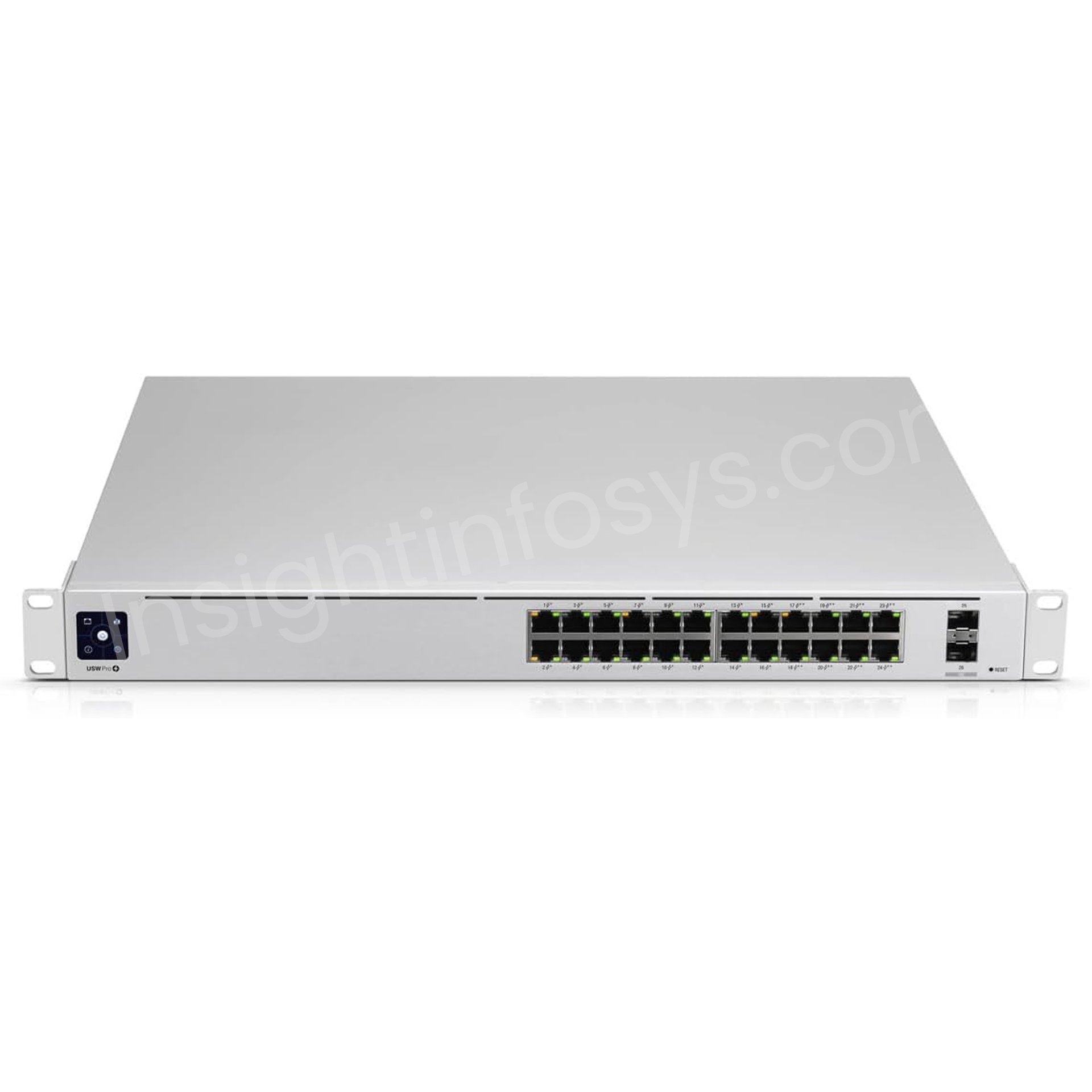

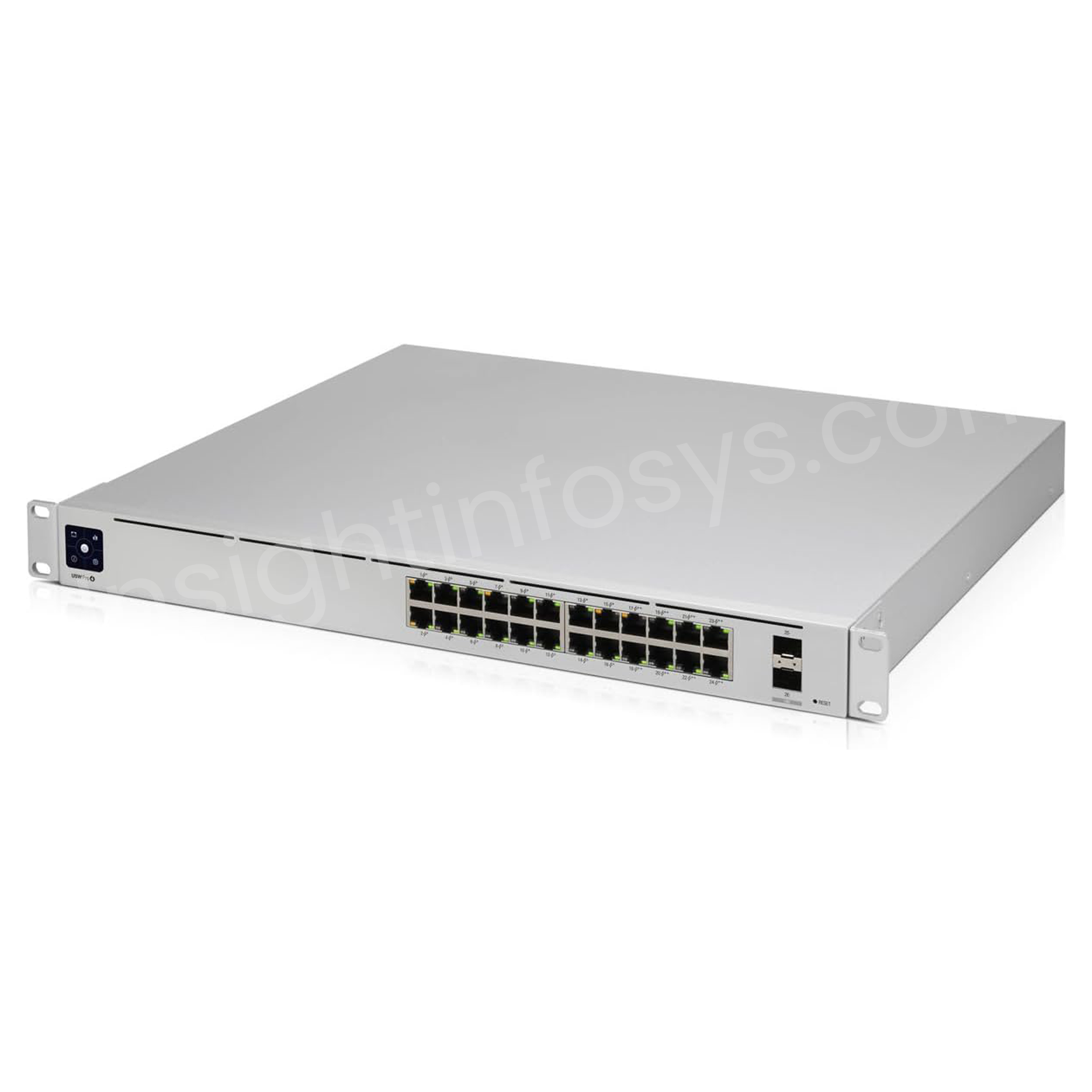

The UniFi Pro 24 PoE (USW-Pro-24-POE) is a high-performance rack-mountable (1U) managed switch designed for professional networking environments. It features 24 gigabit RJ45 ports with 16 supporting PoE+ and 8 supporting high-power PoE++ to support a wide range of devices. Additionally, it includes 2 10G SFP+ uplink ports for high-speed fiber connectivity. With advanced Layer 3 routing features and robust security and management capabilities, this switch is built to deliver powerful, flexible networking in enterprise, commercial, or media-centric deployments.

KEY FEATURES:

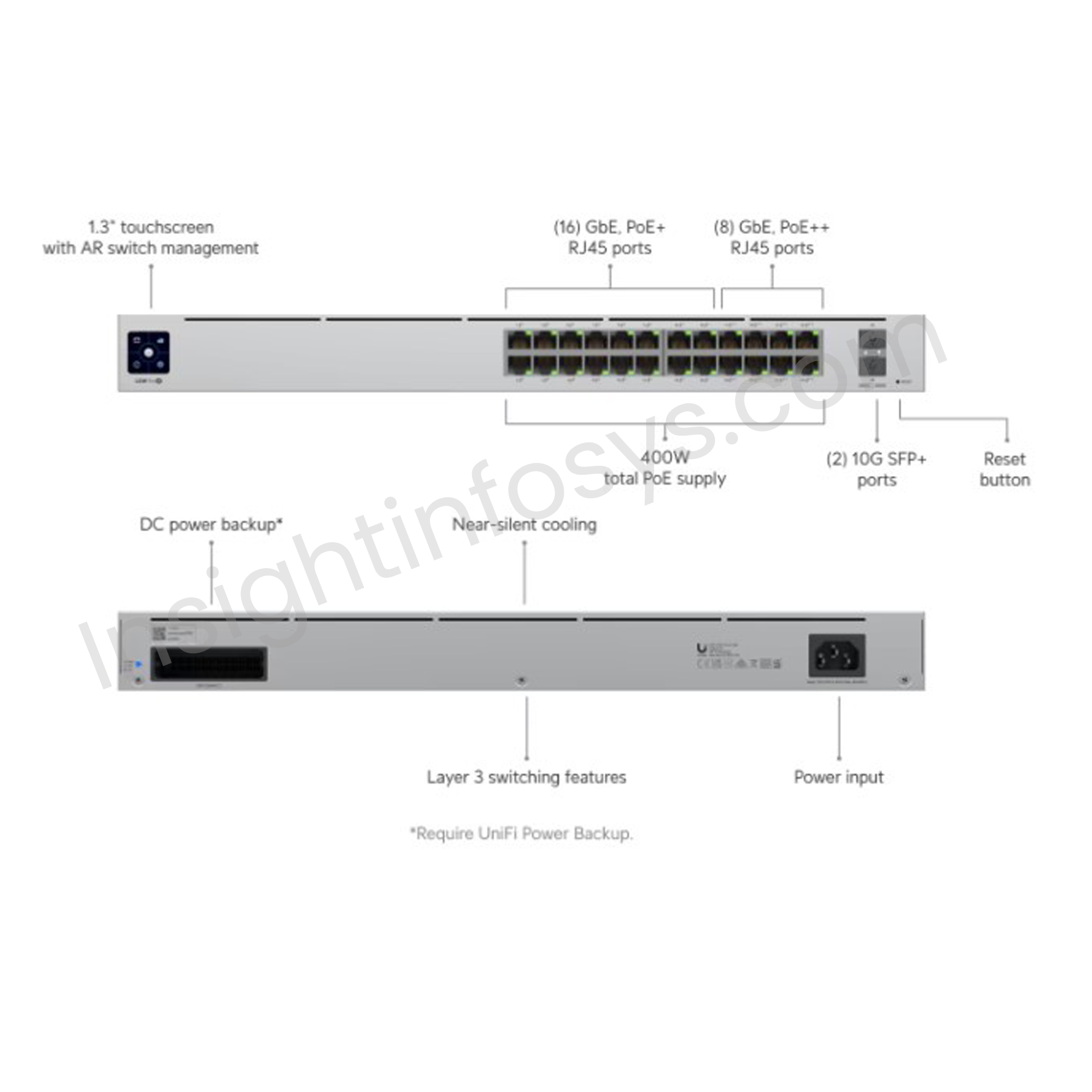

• 24x 1GbE RJ45 ports (16 PoE+, 8 PoE++) supporting up to 64W per port in PoE++ mode
• 2x 10G SFP+ ports for high-speed uplinks
• Maximum PoE output budget of 400W for powering multiple devices
• Layer 3 functionality, including DHCP Server, Relay, Inter-VLAN Routing, and Static Routing (Local Networks)
• Switching capacity of 88 Gbps with a forwarding rate of 65 Mpps
• Supports 1,000 VLANs and extensive access control features (IPv4 and MAC ACLs)
• Advanced multicast and QoS support, including Pro AV profiles for media streaming
• Redundancy with DC power backup option
• 1.3″ touchscreen LCD for local management and monitoring
• Compact rack-mount design, rugged SGCC steel enclosure
• NDAA compliant with certifications CE, FCC, IC, and Anatel

⇒ Technical Datasheet

SPECIFICATIONS OF USW-Pro-24-Poe

PRODUCT DETAILS

• Brand: Ubiquiti
• Series: UniFi Switch Pro
• Model Number: USW-Pro-24-POE
• Product Type: Layer 3 switch with 24 PoE ports (16 PoE+ and 8 PoE++) and 2 SFP+ ports
• Item Weight: 4.3 kg (9.5 lb)

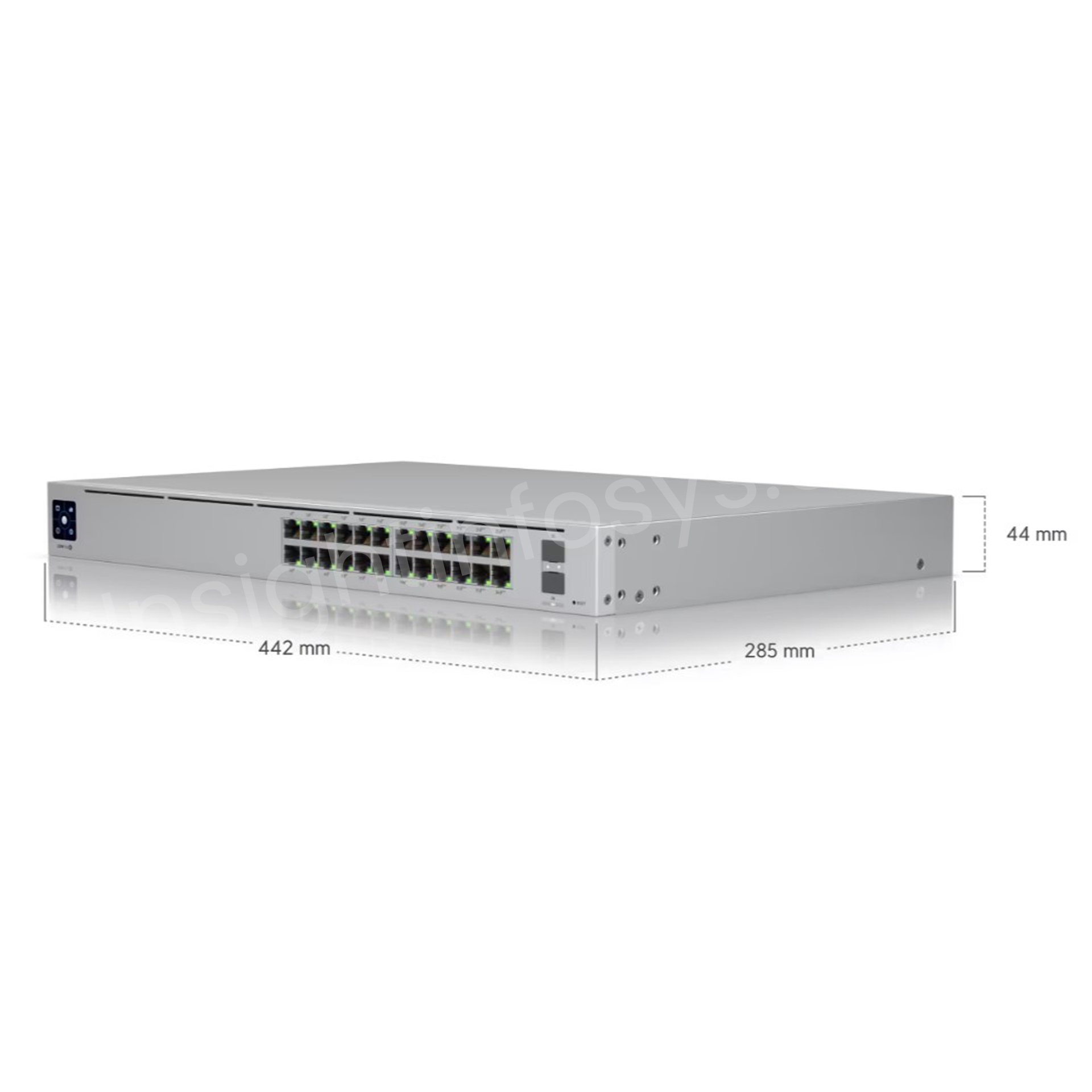

• Product Dimensions: 17.42 X 11.24 X 1.72 inches
• Color: White/Silver
• Manufacturer: Ubiquiti Networks

PERFORMANCE

The UniFi Pro 24 PoE delivers a high switching capacity of 88 Gbps and total non-blocking throughput of 44 Gbps, enabling seamless handling of intensive network traffic and real-time applications with low latency. Its 65 million packets per second (Mpps) forwarding rate and support for advanced Layer 2/3 features make it suitable for medium to large network infrastructures requiring efficiency and scalability.

POWER CONSUMPTION

The Ubiquiti UniFi Switch Pro 24 PoE’s power consumption is divided into two parts, with a maximum of 50W needed for its own internal operation and an additional 400W available for connected Power over Ethernet (PoE) devices, bringing the total maximum power consumption to 450W, according to Ubiquiti’s official tech specs. In real-world usage, the base consumption is much lower and depends on network traffic and the number of connected devices, with user reports showing an idle power draw as low as 13.8W. To ensure network uptime, the switch features a redundant power option through a USP RPS DC input, providing a backup in case of internal power supply failure.

RELIABILITY

The switch provides reliable operation with ESD protection (air ±16kV, contact ±12kV), robust enclosure, and support for rack depths from 400 mm to 1200 mm. It supports various network stability protocols such as STP, RSTP, LACP, and loop protection. Power redundancy is ensured through an optional DC power backup input alongside the universal AC internal power supply.

ENERGY EFFICIENCY

The UniFi Pro 24 PoE switch offers energy efficiency through its balanced power consumption and intelligent power management. It uses an internal 450W AC/DC power supply supporting 100–240V AC input, optimizing for minimal power loss and effective heat dissipation. The switch supports up to 400W PoE power delivery while maintaining near-silent operation and includes features like UniFi SmartPower redundancy for efficient energy use and power reliability. This balance makes it suitable for professional deployments where energy efficiency and robust power management are essential.

APPLICATION AREAS

The application areas include enterprise and business networks requiring high-performance, managed PoE (Power over Ethernet) switches; small to medium-sized office environments; conference rooms; network infrastructure supporting IP phones, wireless access points, and PoE security cameras; environments requiring advanced Layer 2 and Layer 3 switching features; smart building and IoT deployments; and any setting needing reliable, scalable, and secure network switch solutions with PoE capabilities for powering connected devices. This switch is commonly used in corporate networks, educational institutions, retail outlets, healthcare facilities, and hospitality venues.

CONCLUSION

The UniFi Pro 24 PoE is a versatile, high-performance managed switch tailored for professional networks demanding robust Layer 2/3 features, substantial PoE power budgets, and high-speed uplink connectivity. Its reliable hardware design, advanced security, and QoS capabilities make it well-suited for enterprise, multimedia, and campus environments. With comprehensive management via UniFi Network software and a convenient touchscreen interface, it offers strong value for IT deployments requiring scalability, power efficiency, and resilient network performance.
