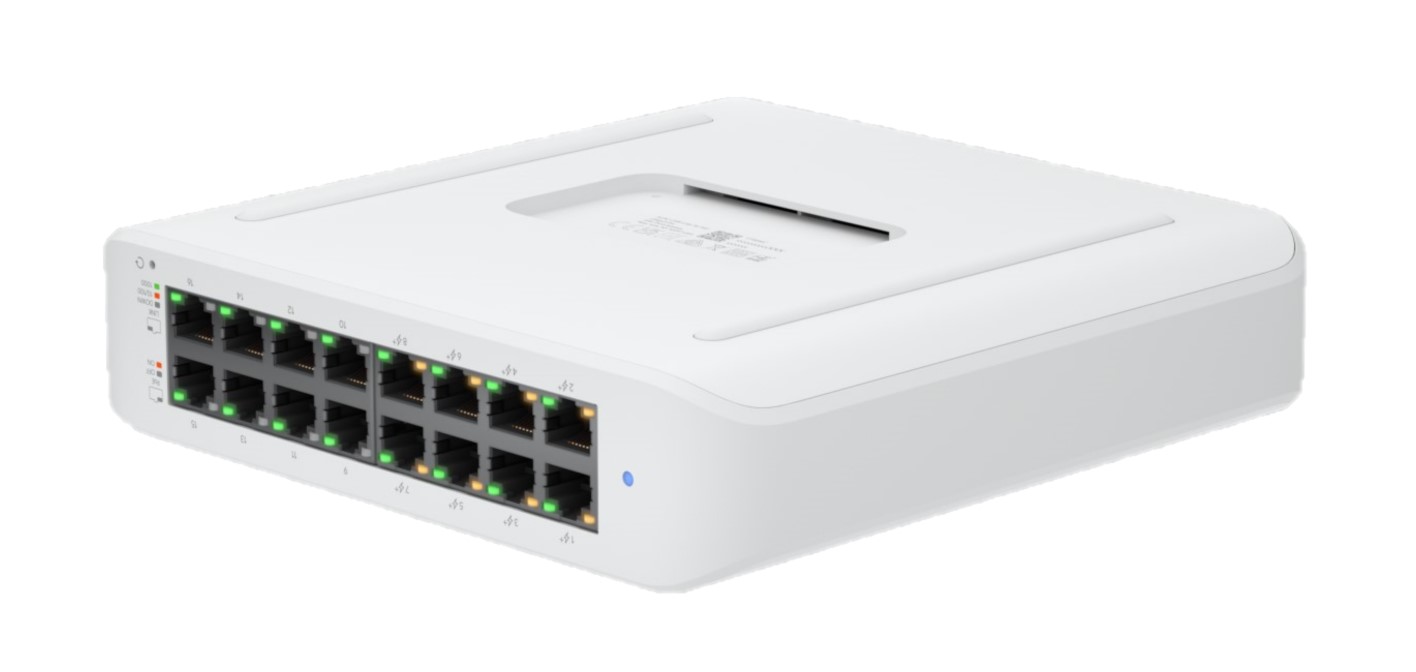

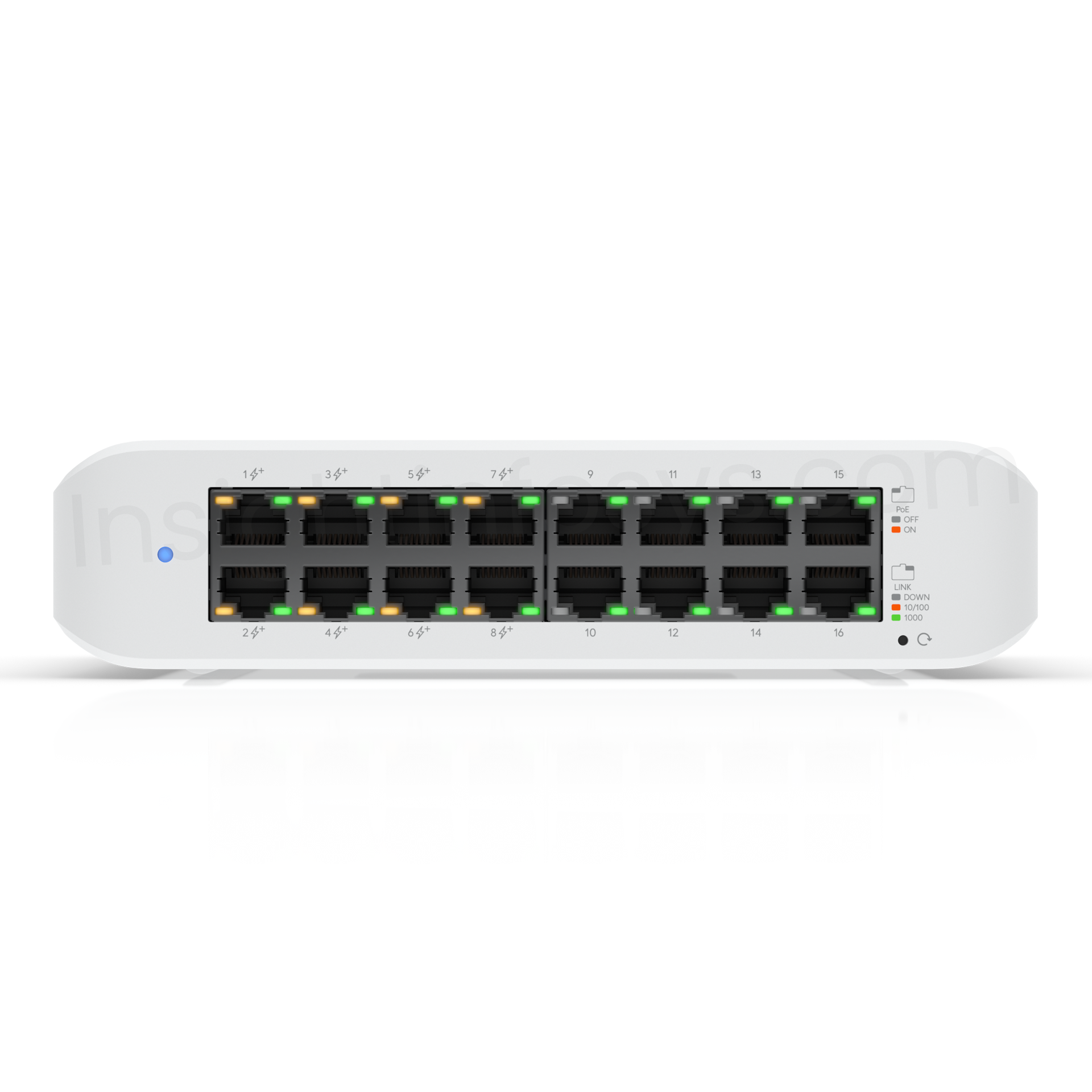

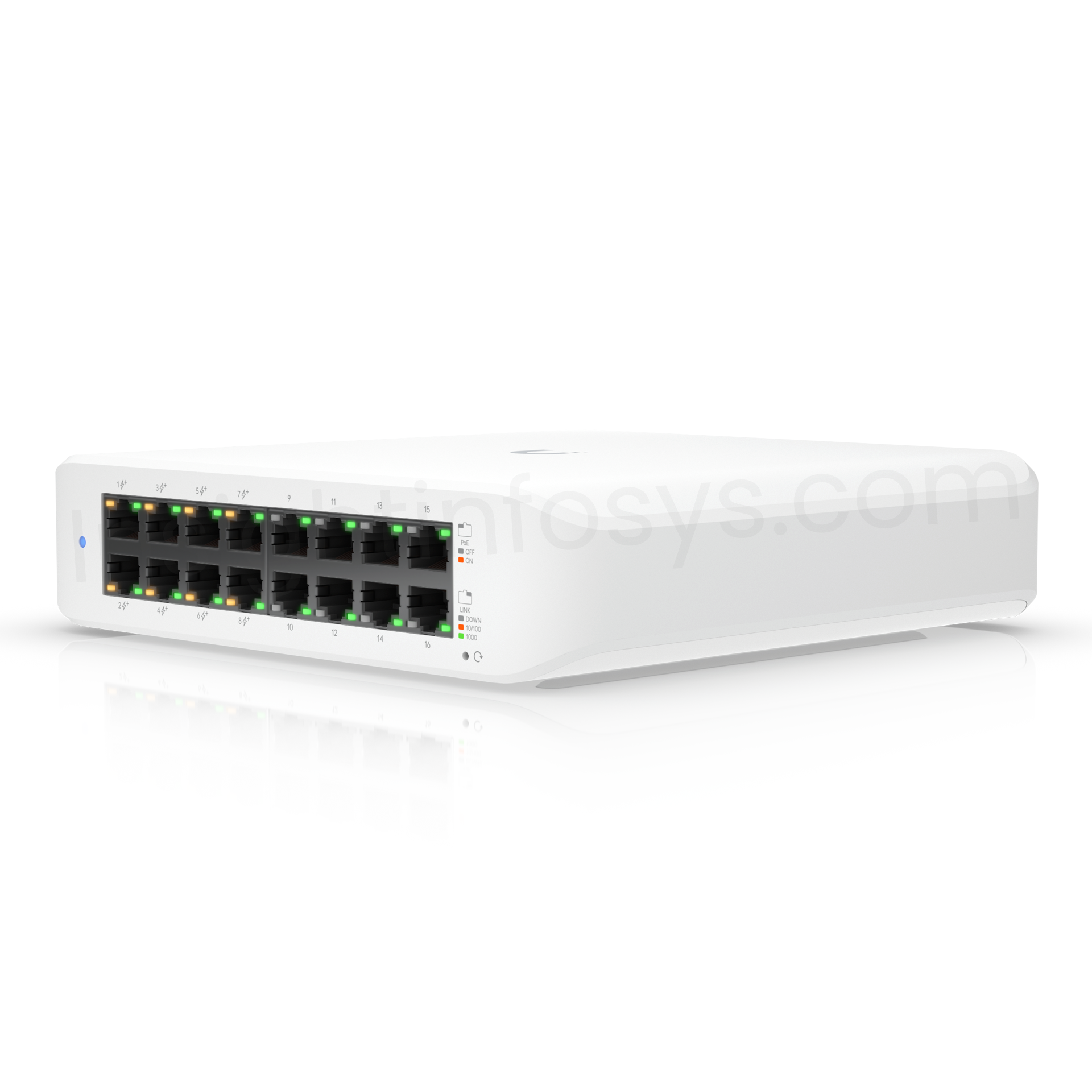

Ubiquiti USW-Lite-16-PoE

The UniFi USW-Lite-16-PoE is a compact, fully managed Layer 2 gigabit Ethernet switch designed for small to medium business networks or SOHO applications. It features 16 RJ45 Gigabit ports, with 8 ports supporting PoE+ (802.3af/at) to power devices such as access points and IP phones. The switch is designed for flexible deployment with desktop or wall mounting options and integrates seamlessly with the UniFi Network software for centralized network management and monitoring. Its fanless design allows silent operation, making it ideal for office or noise-sensitive environments.

KEY FEATURES:

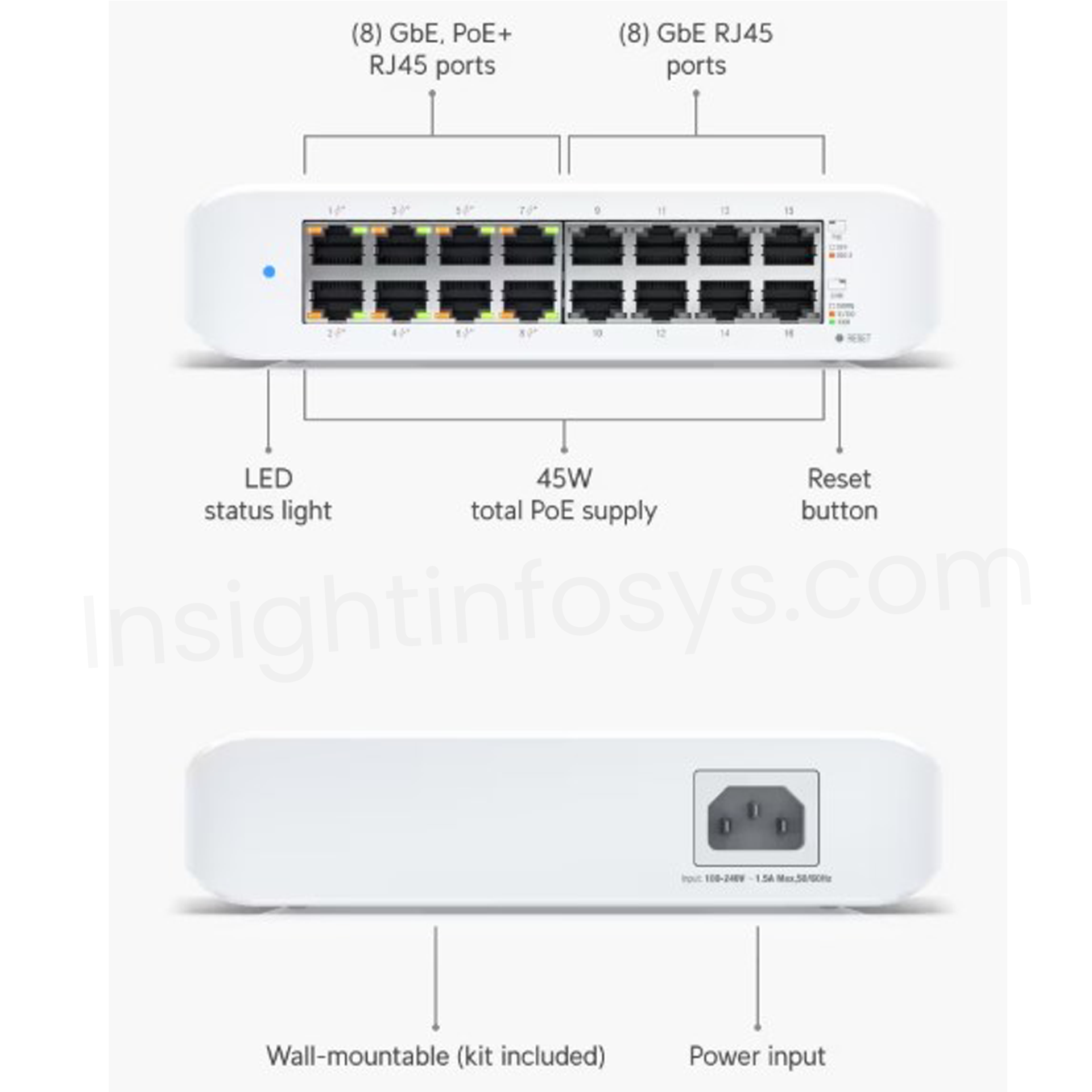

• 16 Gigabit RJ45 Ethernet ports with 8 ports supporting 802.3at PoE+ for powering connected devices

• Layer 2 managed switch supporting advanced protocols such as LACP port aggregation, STP & RSTP for redundancy and loop prevention

• High switching capacity of 32 Gbps and non-blocking throughput of 16 Gbps with a forwarding rate of 24 Mpps

• Fanless design assures silent operation, ideal for noise-sensitive environments

• Compact wall-mountable form factor with included mounting kit for flexible deployment

• Internal 60W AC/DC power supply with universal 100-240V input ensures stable power delivery

• Managed via UniFi Network software and mobile app for easy, centralized network management

• Certified  with CE, FCC, and IC compliance, ensuring regulatory standards are met

SPECIFICATIONS OF USW-Lite-16-PoE

PRODUCT DETAILS:

• Brand: Ubiquiti
• Series: UniFi Switch Lite
• Model Number: USW-Lite-16-PoE
• Product Type: Wireless Access Point
• Item Weight: 1.2 kg (2.6 lb)
• Product Dimensions: 192 x 185 x 44 mm (7.6 x 7.3 x 1.7″)
• Color: White
• Manufacturer: Ubiquiti Inc

⇒Technical Datasheet

PERFORMANCE

The USW-Lite-16-PoE offers robust network performance with a total switching capacity of 32 Gbps and a non-blocking throughput of 16 Gbps. This AP can forward up to 24 million packets per second (Mpps), ensuring efficient data traffic handling without bottlenecks. The switch supports up to 1,000 VLANs and manages a MAC address table of 8,000 entries, allowing for extensive network segmentation and scalability. It is embedded with advanced Layer 2 features such as LACP port aggregation, STP/RSTP, IGMP snooping, and 802.1X control, enhancing network reliability and security.

POWER CONSUMPTION

The USW-Lite-16-PoE has an internal 60W AC/DC power supply with universal input voltage support ranging from 100 to 240V AC. Its maximum power consumption without PoE output is 15 watts, which is energy efficient for its class. The switch can deliver a total PoE power budget of 45 watts across 8 PoE+ ports, with each port supporting up to 30 watts to power connected devices, enabling consolidated networking and power delivery through a single infrastructure.

RELIABILITY

Its reliability is assured by the switch’s durable polycarbonate enclosure and stable operating conditions supporting temperatures from -15°C to 40°C and 10-90% non-condensing humidity. The fanless design eliminates mechanical failures and noise generation, increasing operational life and reducing maintenance needs. This switch complies with international certifications such as CE, FCC, and IC, confirming the device meets industry standards for safety and electromagnetic compatibility.

ENERGY EFFICIENCY

The Ubiquiti UniFi USW-Lite-16-PoE is a highly energy-efficient switch, featuring a fanless design that provides silent operation while consuming a maximum of only 15W of power, excluding its PoE output. This low base power draw, combined with its 45W PoE budget for powering devices, ensures a minimal energy footprint. The inclusion of auto-sensing 802.3at PoE+ ports means it intelligently delivers power only to compatible devices that need it, helping to prevent wasted energy. Its compact form factor further contributes to its efficiency, making it an excellent choice for optimizing energy use in small to medium-sized networks.

APPLICATION AREAS

The Ubiquiti UniFi USW-Lite-16-PoE is a switch that is suitable for a wide range of applications, including corporate offices, small to medium-sized businesses, remote branch offices, home office setups, co-working spaces, retail stores, educational institutions like schools and colleges, healthcare clinics, hospitality offices, conference and meeting rooms, small manufacturing and warehousing offices, and residential networks.

CONCLUSION

The Ubiquiti UniFi USW-Lite-16-PoE is an ideal solution with its compact design, reliable performance, and 8 PoE+ ports providing up to 45W power budget. It offers advanced Layer 2 features, fanless silent operation, and seamless management via UniFi Network software. Its versatility and ease of deployment make it ideal for small businesses, home offices, and professional environments requiring efficient, scalable, and cost-effective network switching.
