Cambium XV2-21X Wi-Fi 6 Indoor Access Point

CAMBIUM XV2-21X Wi-fi 6 ACCESS POINT

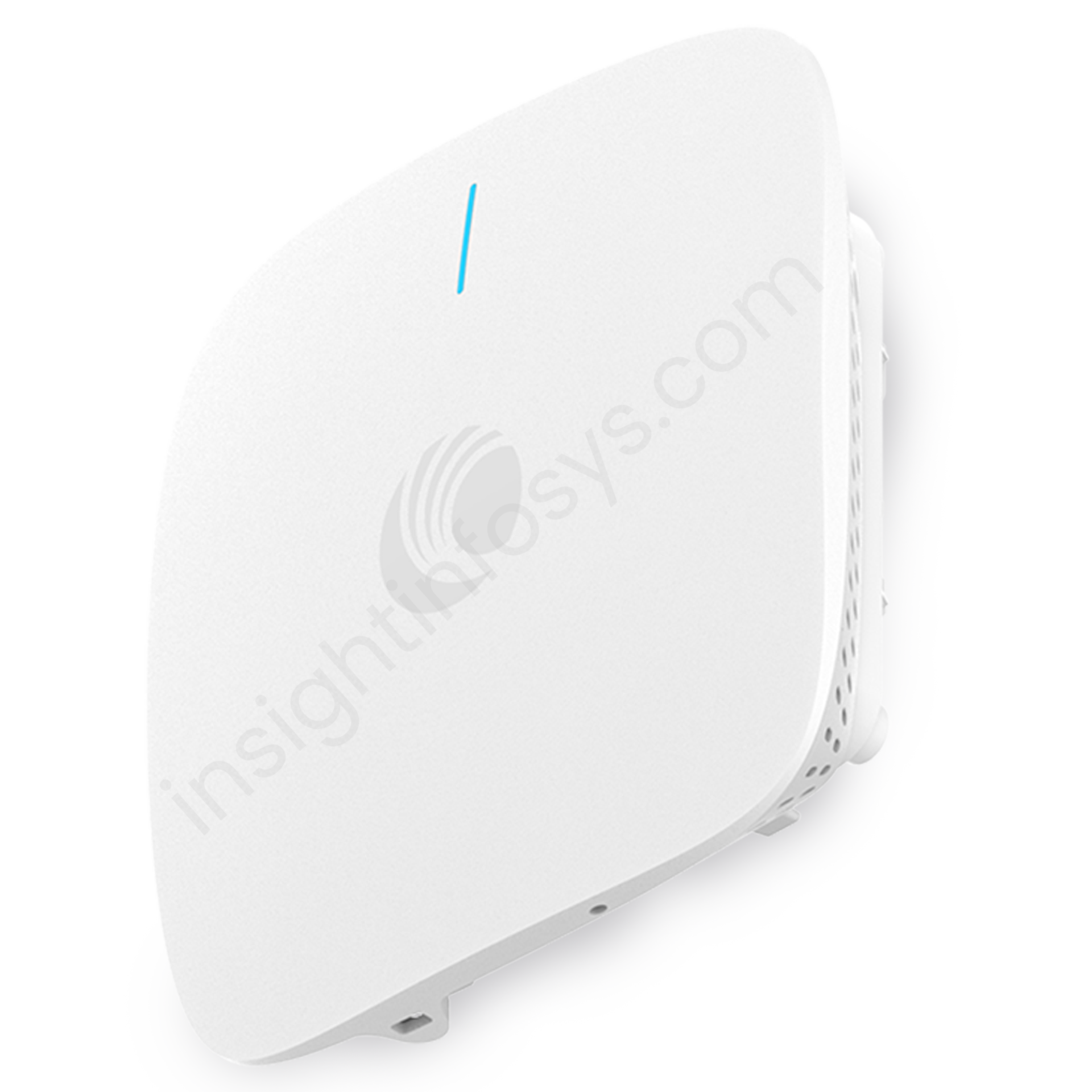

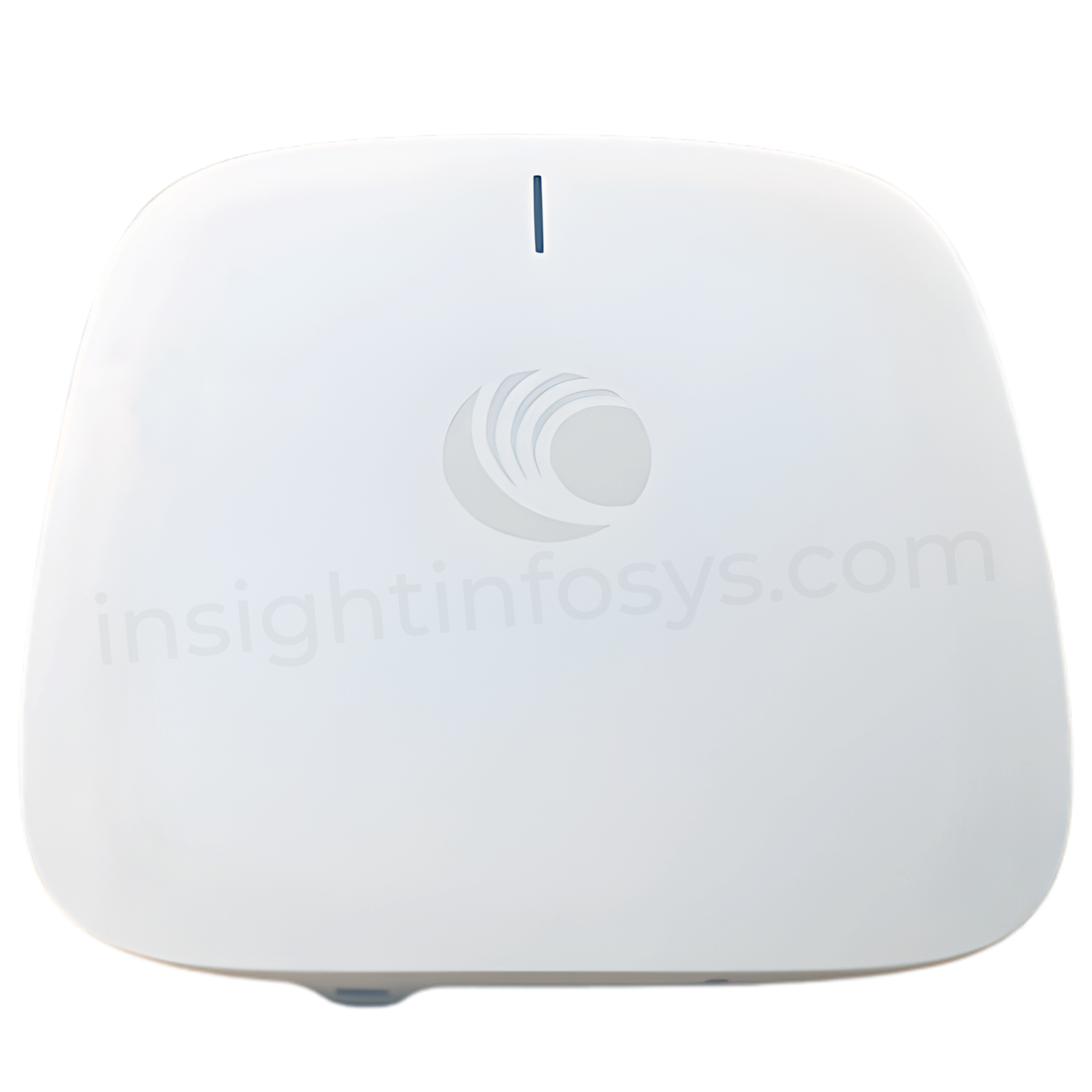

The Cambium XV2-21X is a high-performance indoor Wi-Fi 6 access point designed to provide robust wireless connectivity in enterprise and commercial environments. It features dual radios operating in both 2.4 GHz and 5 GHz bands with 2×2 MU-MIMO technology, delivering a combined throughput of up to 2.97 Gbps. The access point supports up to 256 concurrent clients and 16 SSIDs, and is manageable through Cambium’s cloud-based cnMaestro platform, on-premises management, or the Swift app. Its flexible mounting options and compact design make it suitable for a wide range of indoor spaces such as offices, schools, hospitality venues, and healthcare facilities.

Key Features

• Dual radio 2×2 MU-MIMO for simultaneous transmission
• Enhanced security with WPA3, WPA2 Enterprise, OSEN, OWE, and PMF support
• Flexible operation modes with standalone or cloud-managed via cnMaestro
• Captive portal with social login, voucher, SMS gateway, and payment integration support
• Advanced RF management with Auto Channel, Auto Power, spectrum analysis, and rogue AP detection
• IPv4 & IPv6 support, VLAN pooling, QoS via WMM, multiple tunneling protocols

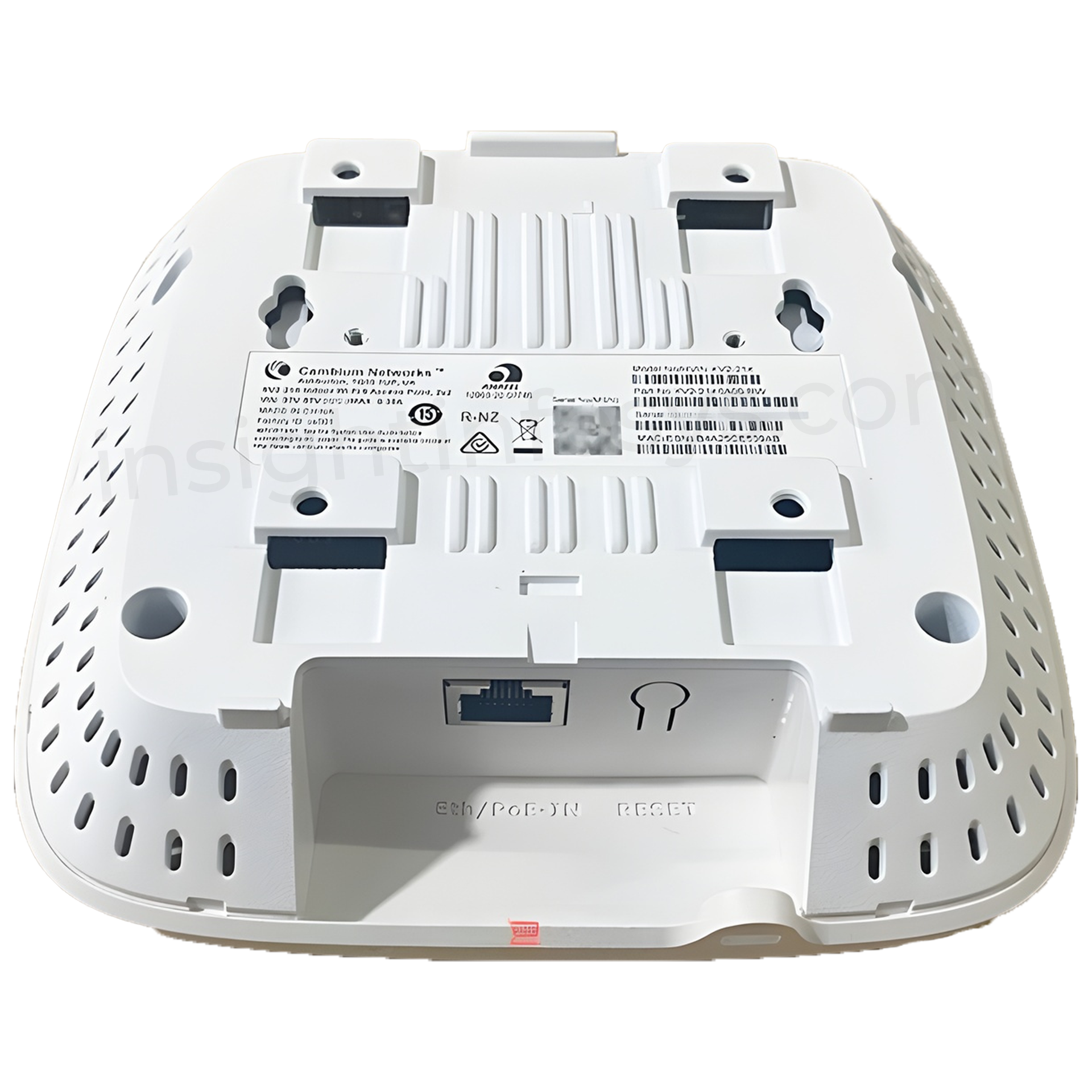

• Compact design with included mounting hardware for ceiling, wall, or T-bar installation

SPECIFICATION OF XV2-21X AP

PRODUCT DETAILS

• Brand: Cambium Networks
• Series: XV2
• Model Number: XV2-21X
• Product Type: Wireless Indoor Access Point
• Item Weight : 475g (1.05 lbs)
• Product Dimensions: 155 mm x 155 mm x 37 mm (6.1 in x 6.1 in x 1.46 in)
• Color: White
• Manufacturer: Cambium Networks

Technical Datasheet

PERFORMANCE

The XV2-21X supports Wi-Fi 6 (802.11ax) technology, which enhances speed, capacity, and efficiency compared to previous standards. It has 2×2 MU-MIMO radios, with which the device handles simultaneous data streams, and reliable wireless performance especially in high-density environments. Advanced features like OFDMA, beamforming, airtime fairness, and 802.11r fast roaming optimizes network performance and improve user experience. The AP provides maximum PHY rates of 2402 Mbps on the 5 GHz radio and 573.5 Mbps on the 2.4 GHz radio. This makes it well-suited for demanding applications such as video conferencing, VoIP, and cloud collaboration.

POWER CONSUMPTION

The device is powered by the industry-standard Power over Ethernet (PoE), supporting both IEEE 802.3af/at specifications. Under typical load, the power consumption is approximately 11 watts, making the XV2-21X energy efficient. This low power demand helps reduce operating costs and eases integration into existing enterprise infrastructure without requiring additional power outlets.

APPLICATION AREAS

The Cambium XV2-21X Wi-Fi 6  is an ideal fit for reliable and indoor environments   such as Offices, Schools, Colleges, Hospitals, Hotels, Hospitality venues, Healthcare facilities, Retail store, Conference centers, Small to medium businesses, Public venues, Corporate environments, Libraries, Residential buildings, Airports, Restaurants,

CONCLUSION

The Cambium XV2-21X Wi-Fi 6  is a high performance, enterprise-grade features access point with flexible management options at a cost-effective price point. Its robust support for dense client environments, advanced security protocols, and versatile deployment make it an excellent choice for organizations looking to upgrade their wireless infrastructure with next-generation technology.
