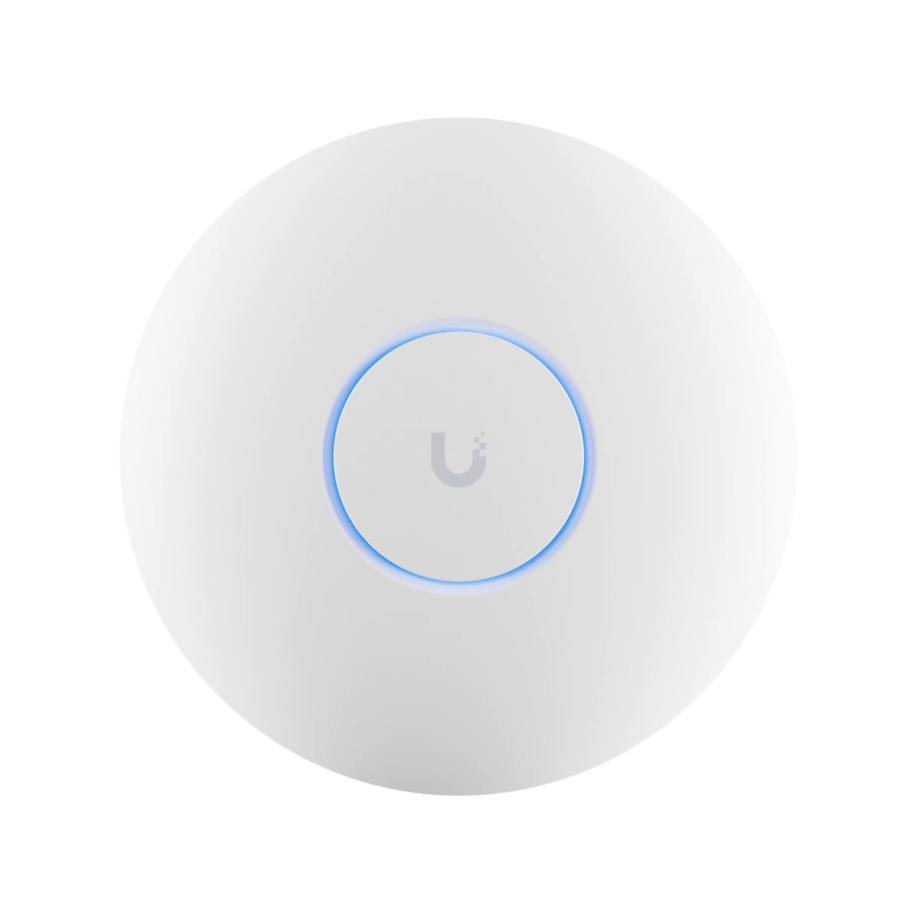

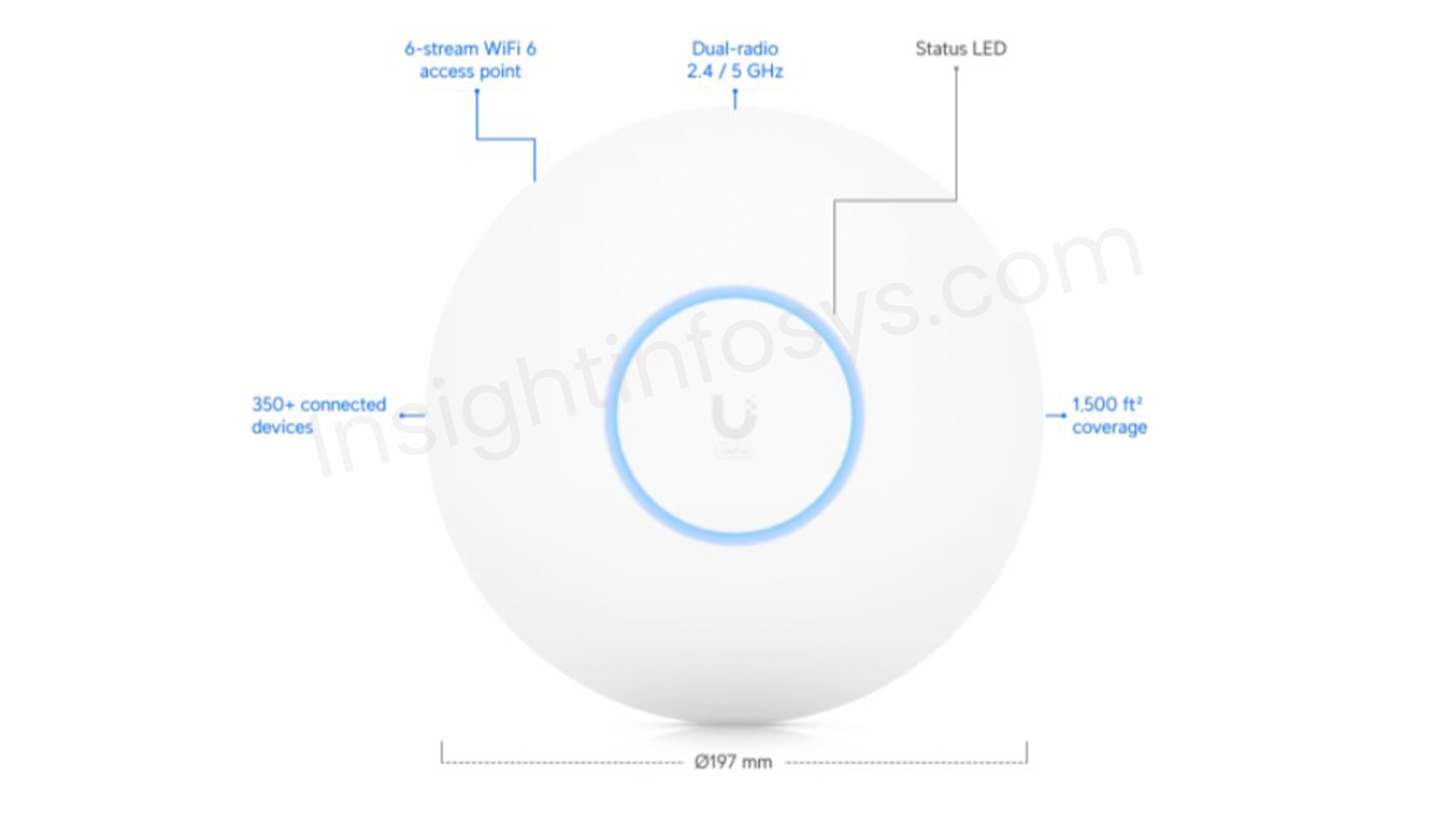

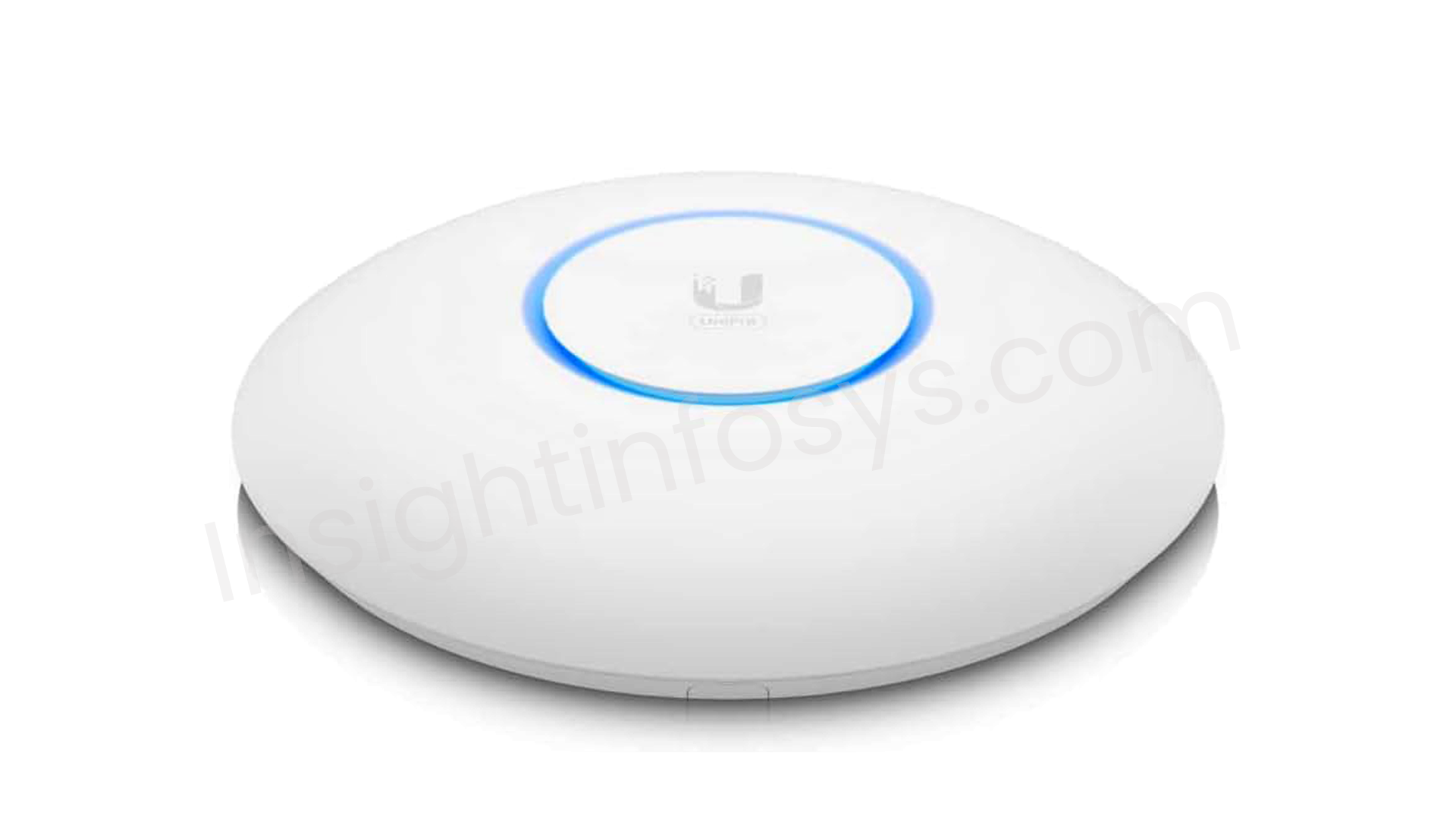

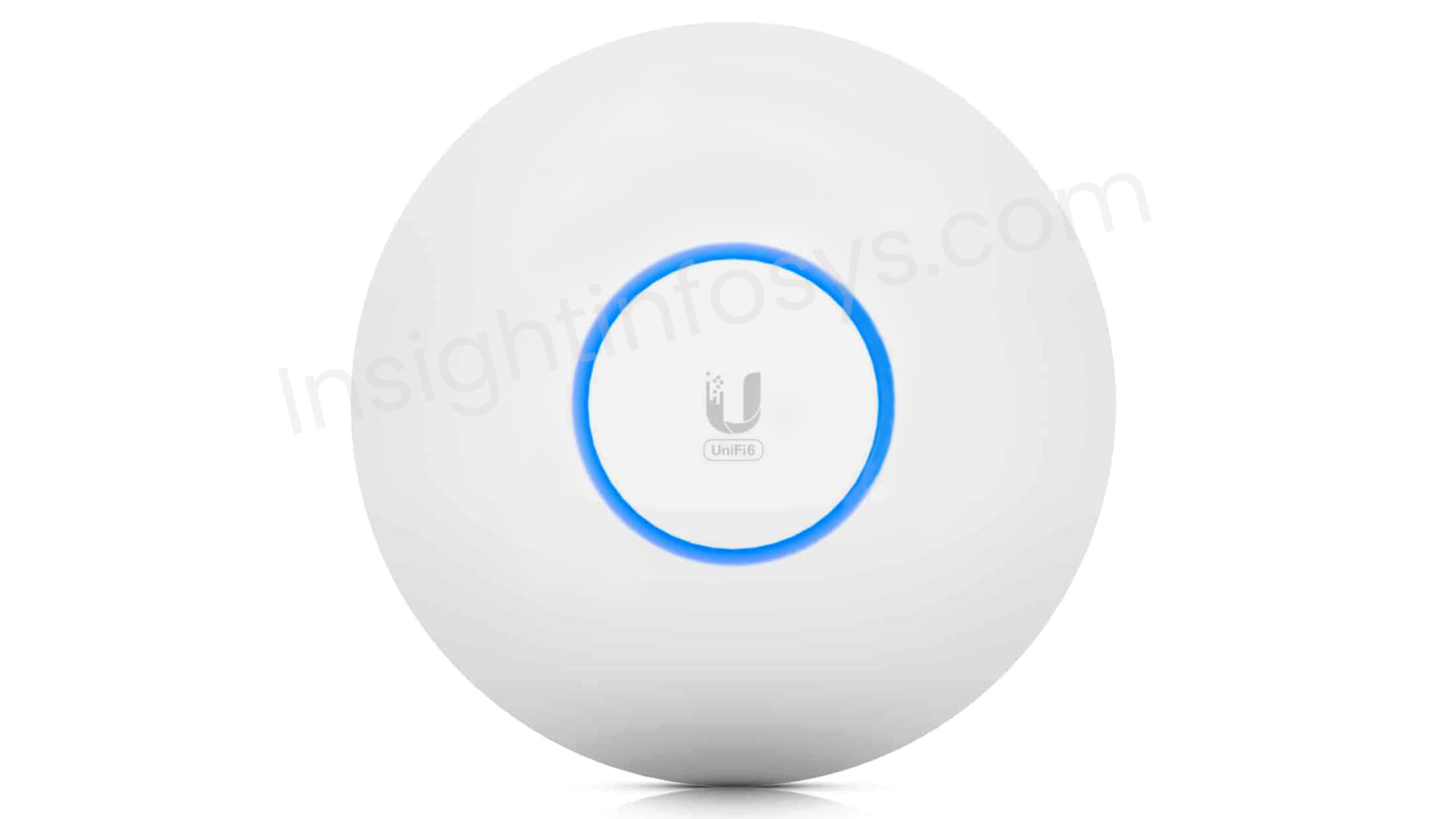

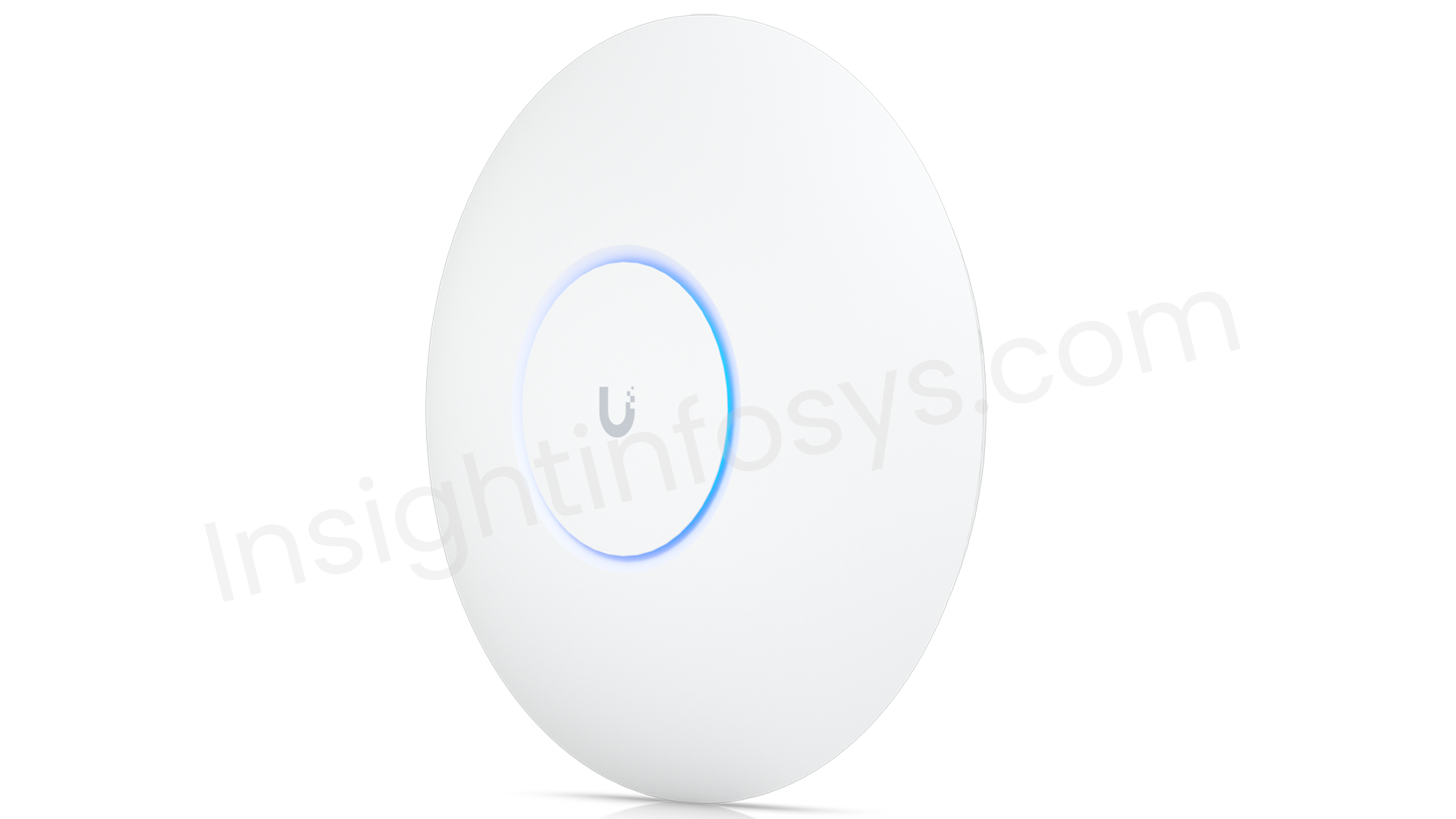

UBIQUITI UniFi U6-PRO ACCESS POINT

The UniFi U6-Pro is a next-generation dual-band  Wi-Fi 6 access point designed to deliver fast, reliable, and scalable wireless connectivity for enterprise and business environments. Supporting dual-band operation on 2.4 GHz and 5 GHz with OFDMA and MU-MIMO technologies, the U6-Pro ensures efficient data transmission even in high-density environments. Its sleek design, robust performance, and seamless integration with the UniFi Network Controller make it an ideal solution for offices, campuses, and hospitality venues.

KEY FEATURES

• Wi-Fi 6 (802.11ax) support with dual-band concurrent operation
• 4×4 MIMO on 5 GHz and 2×2 MIMO on 2.4 GHz for improved performance and coverage
• OFDMA and MU-MIMO technologies for optimized multi-user experience
• Up to 5.4 Gbps aggregated throughput for high-speed wireless connections
• 802.3at PoE+ powered for flexible, clean installations
• Seamless UniFi Network Controller integration for centralized management and monitoring
• Compact, ceiling or wall-mount design for versatile deployment

SPECIFICATIONS OF U6 -PRO

PRODUCT DETAILS

• Brand: Ubiquiti
• Series: UniFi 6
• Model Number: U6-Pro
• Product Type: Wireless Access Point
• Item Weight: 460 g (1 lb)
• Product Dimensions: Ø197 x 35 mm (Ø7.76 x 1.38″)
• Color: White
• Manufacturer: Ubiquiti Inc

⇒Technical Datasheet

PERFORMANCE

The Ubiquiti UniFi U6-Pro is capable of delivering an aggregate throughput rate of up to 5.3 Gbps, utilizing its 5 GHz band with 4×4 MU-MIMO and 2.4 GHz band with 2×2 MU-MIMO. It supports over 300 concurrent clients, ensuring reliable connectivity in dense environments. The device has a maximum transmit power of 22 dBm (2.4 GHz) and 26 dBm (5 GHz), providing strong signal coverage.

POWER CONSUMPTION

The UniFi U6 Pro access point has a maximum power consumption of 13 watts, powered via PoE (Power over Ethernet) with a supported voltage range of 44 to 57 volts DC. It utilizes the 802.3at (PoE+) standard, allowing simplified installation without separate power supplies by delivering power and data over a single Ethernet cable. This efficient power design helps optimize deployment flexibility and reduce cable clutter. The device’s moderate power consumption makes it suitable for environments requiring energy-efficient yet high-performance wireless connectivity.

RELIABILITY

The U6-Pro features an IP54-rated weather-resistant enclosure, allowing it to operate reliably in both indoor and semi-outdoor environments. It is designed with industrial-grade components and offers a wide operating temperature range from -10°C to 50°C. The access point supports advanced WiFi security standards, including WPA3 and guest traffic isolation, ensuring network protection and stable operation.

ENERGY EFFICIENCY

The U6-Pro consumes up to 13W, powered using 802.3at PoE+ (Power over Ethernet Plus), allowing for efficient power management and simplified cabling. The support for PoE+ reduces energy waste and helps streamline deployment in enterprise-grade networks. These features collectively make the Ubiquiti UniFi U6-Pro a high-performance, reliable, and energy-efficient access point suitable for modern wireless networking demands.

APPLICATION AREAS

The UniFi U6-Pro has wide application areas that range from Hospitals (patient rooms, nurse stations, waiting areas), Colleges and universities (classrooms, lecture halls, libraries, administrative offices, Corporate offices (workstations, conference rooms, common areas) Re tail stores (sales floors, checkout areas, stock rooms ), H ospitality venues (hotel lobbies, guest rooms, conference centers),  Large residential homes (living rooms, home offices, entertainment areas ), Public indoor spaces (airport lounges, convention centers, museums)Indoor semi-exposed areas.

CONCLUSION

The Ubiquiti UniFi U6-Pro Access Point is an ideal a future-proof, scalable networking solution. It ensures network security with guest traffic isolation and WPA3 encryption. Its robust, weather-resistant design allows deployment indoors and in semi-outdoor locations, while efficient PoE+ power usage simplifies installation.
