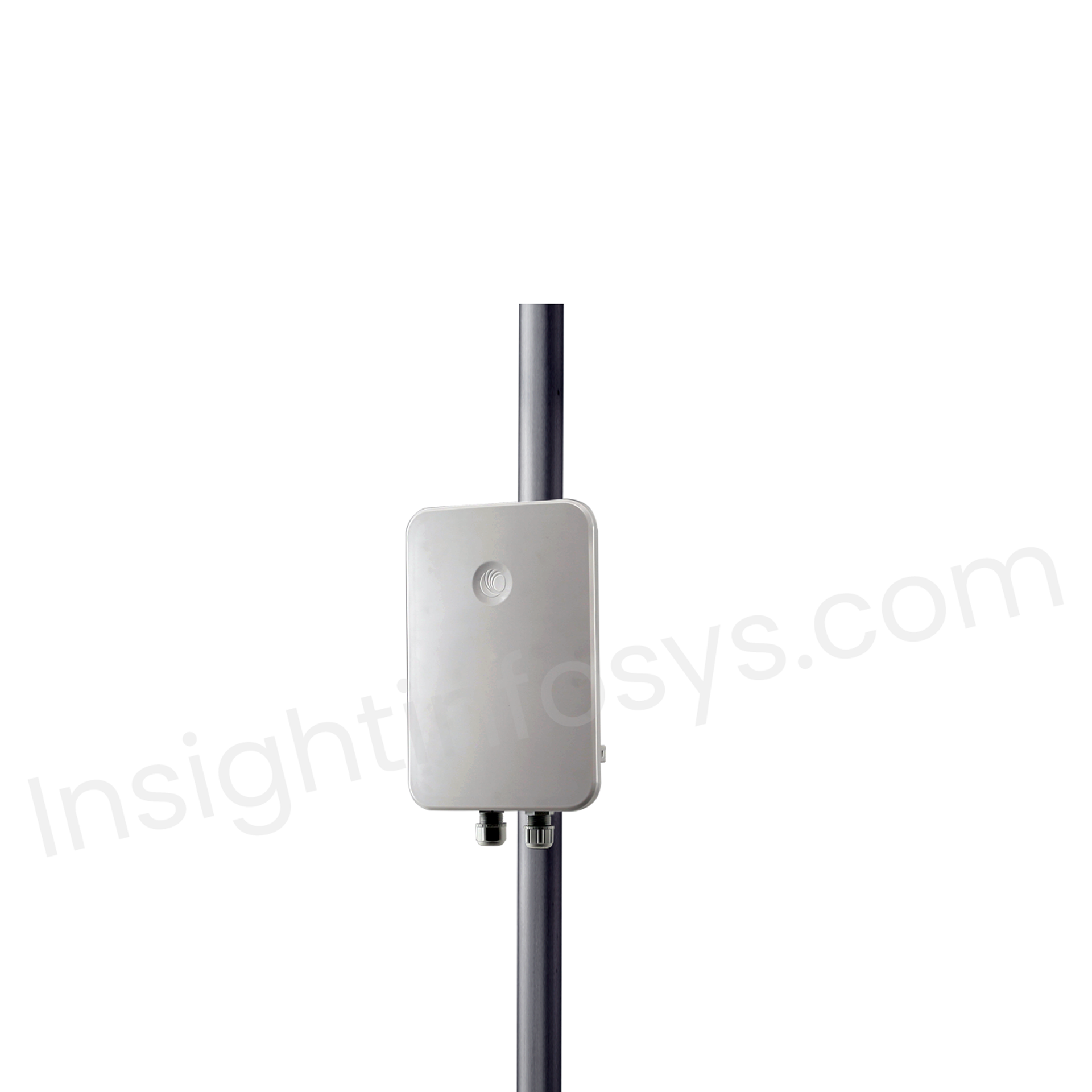

CAMBIUM cn Pilot e700 OUTDOOR ACCESS POINT

The Cambium cnPilot e700 is a high-performance outdoor Wi-Fi 5 access point designed for enterprise and industrial campuses, hospitality, higher education, and public Wi-Fi deployments. Featuring the 802.11ac Wave 2 standard with 4×4 MU-MIMO and integrated omnidirectional antennas, the e700 delivers fast, reliable gigabit throughput in challenging outdoor environments. Its IP67-rated rugged enclosure ensures durable performance in harsh weather, while the device supports scalable, secure wireless networking for up to 512 concurrent clients.

KEY FEATURES:

• Dual-band 802.11ac Wave 2 with 4×4 MU-MIMO
• IP67-rated rugged enclosure with UV protection.
• Supports up to 512 concurrent clients and 16 SSIDs for high-density outdoor environments.
• Integrated omnidirectional antennas with 8 dBi gain for wide-area outdoor coverage.
• Dual gigabit Ethernet ports with link aggregation and PoE Out to power other devices.
• Advanced RF management, including beamforming, dynamic channel selection, and band steering.
• Enterprise-grade security features such as WPA2, 802.1X/EAP, captive portal, and integrated WIDS.
• Managed via Cambium’s cnMaestro cloud or on-premises controller with zero-touch provisioning.
• Extended operating temperature range (-40ºC to 65ºC) for all-weather outdoor reliability.
• Kensington lock slot for theft protection and ease of installation.

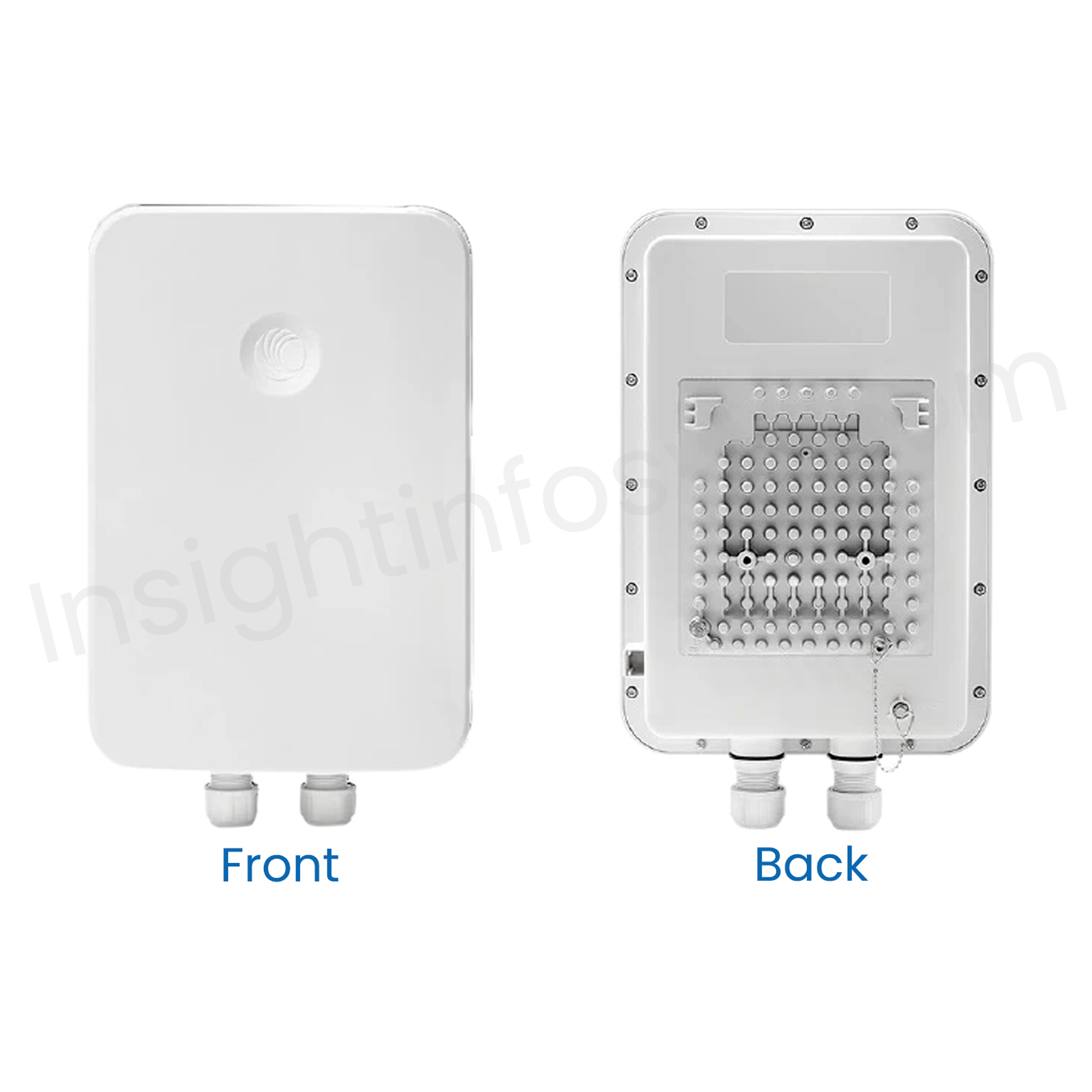

SPECIFICATION OF cn Pilot e700 AP

PRODUCT DETAILS:

• Brand: Cambium Networks
• Series: cnPilot
• Model Number: e700
• Product Type: Wireless Outdoor Access Point
• Item Weight: 1,700g (3.75 lbs)
• Product Dimensions: 315 mm x 215 mm x 66 mm (12.4 in x 8.46 in x 2.6 in)
• Color: White
• Manufacturer: Cambium Networks

⇒Technical Datasheet

PERFORMANCE

The e700 AP supports dual-band 2.4 GHz and 5 GHz operation, providing maximum data rates of 400 Mbps and 1733 Mb, respectively. The 4×4 antenna array with beamforming enhances signal quality and range, improving capacity and coverage, especially in high-interference scenarios. Its dual gigabit Ethernet ports support link aggregation to meet higher throughput requirements and provide an auxiliary PoE output to power Cambium subscriber modules or other Ethernet/PoE devices.

COVERAGE

This AP is designed for extensive outdoor coverage. The e700’s integrated 8 dBi omni antennas deliver reliable connectivity over wide areas such as campuses and large outdoor venues with operating distances reaching up to approximately 700 feet. The IP67 housing, combined with UV protection, also guarantees sustained operation in harsh environmental conditions ranging from -40 °C to 65 °C.

POWER CONSUMPTION

The e700 AP is powered by a 60W Gigabit passive PoE injector or PoE+ switch, consuming a typical power of 18W and a maximum of 24.6W. Its power-out feature on the auxiliary gigabit Ethernet port simplifies installation by enabling connected devices like wireless backhauls or IP cameras to be powered via the same AP.

RELIABILITY

APPLICATION AREAS

The cnPilot e700 is ideal for outdoor wireless networking environments such as industrial campuses, hospitality venues such as hotels and resorts, higher education campuses, public Wi-Fi hotspots, municipal and smart city infrastructures, transportation hubs like airports and bus stations, outdoor recreational parks, large event venues, stadiums, and retail and warehouse environments. It perfectly suits scenarios requiring reliable, high-capacity, and secure outdoor wireless coverage in environments with high client density and demanding network performance needs.

CONCLUSION

The Cambium cnPilot e700 AP is designed with a combination of robust IP67-rated outdoor design, high-capacity 4×4 MU-MIMO performance, versatile dual gigabit Ethernet ports, and comprehensive enterprise security features, which are reliable and scalable for outdoor environments. It enables organizations to extend seamless, high-speed connectivity across large outdoor areas while simplifying network management through cnMaestro cloud or on-premises platforms, making it a top choice for modern outdoor wireless infrastructures.
