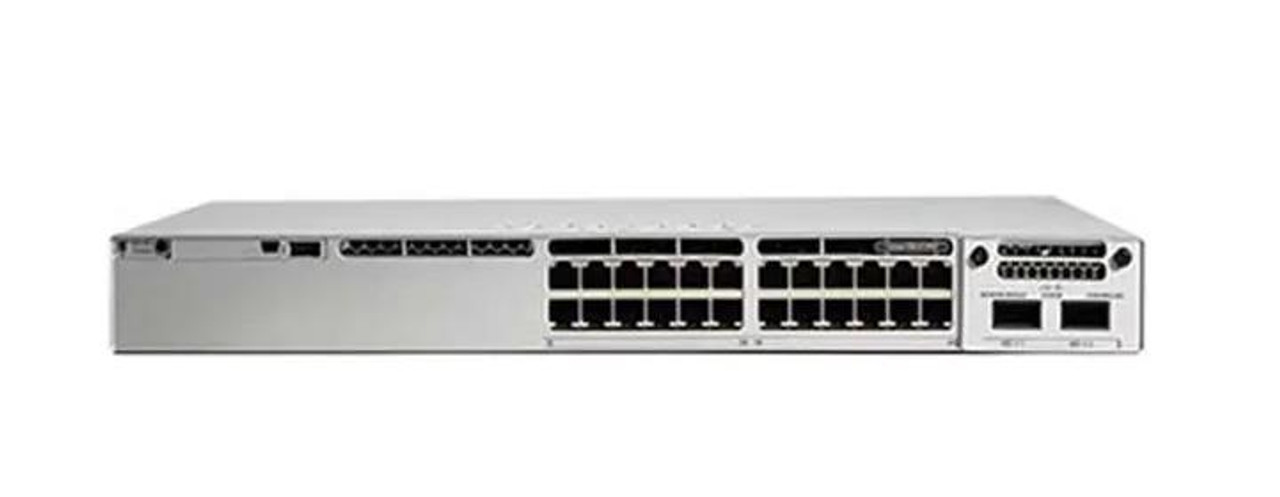

Cisco C9300-24T-E

C9300-24T-E

The Cisco Catalyst C9300-24T-E is a high-performance, stackable enterprise access switch designed for modern networks. It features 24 Gigabit Ethernet ports and one expansion slot for flexible uplinks, providing up to 208 Gbps switching capacity. Powered by Cisco IOS XE software, it offers advanced programmability, strong security, and comprehensive Layer 2 and 3 routing capabilities, making it ideal for scalable and secure network deployments. The switch supports extensive network scaling with up to 32,000 MAC addresses and 4,000 VLANs, all housed in a compact 1U rack-mountable chassis.

KEY FEATURES:

• 24 x 10/100/1000 Ethernet ports with one expansion slot
• 208 Gbps switching capacity, expandable to 688 Gbps with StackWise-480 stacking
• Forwarding rate of 76 Mpps, scalable to 511.90 Mpps
• Supports up to 32,000 MAC addresses, 32,000 IPv4 routes, 16,000 IPv6 routes
• Support for 4,000 VLANs and 2,000 SVIs
• Advanced programmability with Cisco IOS XE, including Python scripting,
• Encrypted Traffic Analytics and Trustworthy Systems security features
• Rack-mountable 1U design with 8 GB DRAM and 16 GB flash

SPECIFICATIONS OF C9300-24T-E

PRODUCT DETAILS:

• Brand: Cisco
• Series: Catalyst 9300 Series
• Model Number: C9300-24T-E
• Product Type: Enterprise Stackable Access Switch
• Item Weight: 33 Pounds
• Product Dimensions: 73 x 17.5 x 17.5 Inches
• Color: Grey
• Manufacturer: Cisco

⇒Technical Datasheet

PERFORMANCE

The C9300-24T-E delivers robust switching capacity of 208 Gbps and a high forwarding rate of 154.76 million packets per second, ensuring wire-speed data flow with minimal latency. Stacking with StackWise-480 technology increases the bandwidth to 688 Gbps and the forwarding rate up to 511.90 Mpps, enabling high throughput for demanding enterprise environments.

POWER CONSUMPTION

The Cisco Catalyst C9300-24T-E is a data-only switch that features a default 350W AC power supply and, unlike PoE-capable models in the 9300 series, does not supply power to connected devices. Its actual power draw is dynamic and depends on the operational load, with Cisco testing showing a full load consumption of around 72 watts, significantly lower than the total capacity of the included power supply. For increased resilience and higher-power needs, the switch supports Cisco StackPower, which pools power resources with other stackable units.

RELIABILITY

It is built for enterprise-grade reliability, and the switch supports resilient software with dual images and seamless upgrades. Cisco StackWise and StackPower technologies provide hardware redundancy and power sharing among stacked units, ensuring continuous uptime and simplified management for business-critical applications.

ENERGY EFFICIENCY

The switch incorporates Cisco StackPower technology for intelligent power allocation and redundancy, reducing power waste and increasing operational efficiency. Its efficient hardware design supports reduced energy consumption without sacrificing performance, contributing to greener network infrastructure.

SECURITY FEATURES

This switch security is enhanced with Cisco Trustworthy Systems for hardware and software authenticity, Encrypted Traffic Analytics that detect malicious activities in encrypted traffic, and AES 128-bit encryption. The switch also supports 802.1x authentication, role-based access control, and comprehensive traffic inspection and mitigation capabilities to safeguard network integrity.

APPLICATION AREAS

It has broad application areas such as small to medium-sized business office networks, Home office networking setups, Network expansion for existing infrastructure, Workgroup connectivity for file sharing and printing, Environmental conscious enterprises aiming to reduce power consumptio n, Network closets and server rooms with rack-mount requirements, Educational institutions for classrooms and labs, Healthcare facilities for connecting medical equipment and administrative devices, Retail stores for POS systems and security camera networks, Hospitality environments such as hotels and conference centers

CONCLUSION

The Cisco Catalyst C9300-24T-E is a versatile, high-performance access switch designed for growing enterprise networks that demand scalability, security, and programmability. Its advanced feature set, robust reliability, and energy-efficient design make it an ideal choice for future-proofing enterprise access infrastructure.
