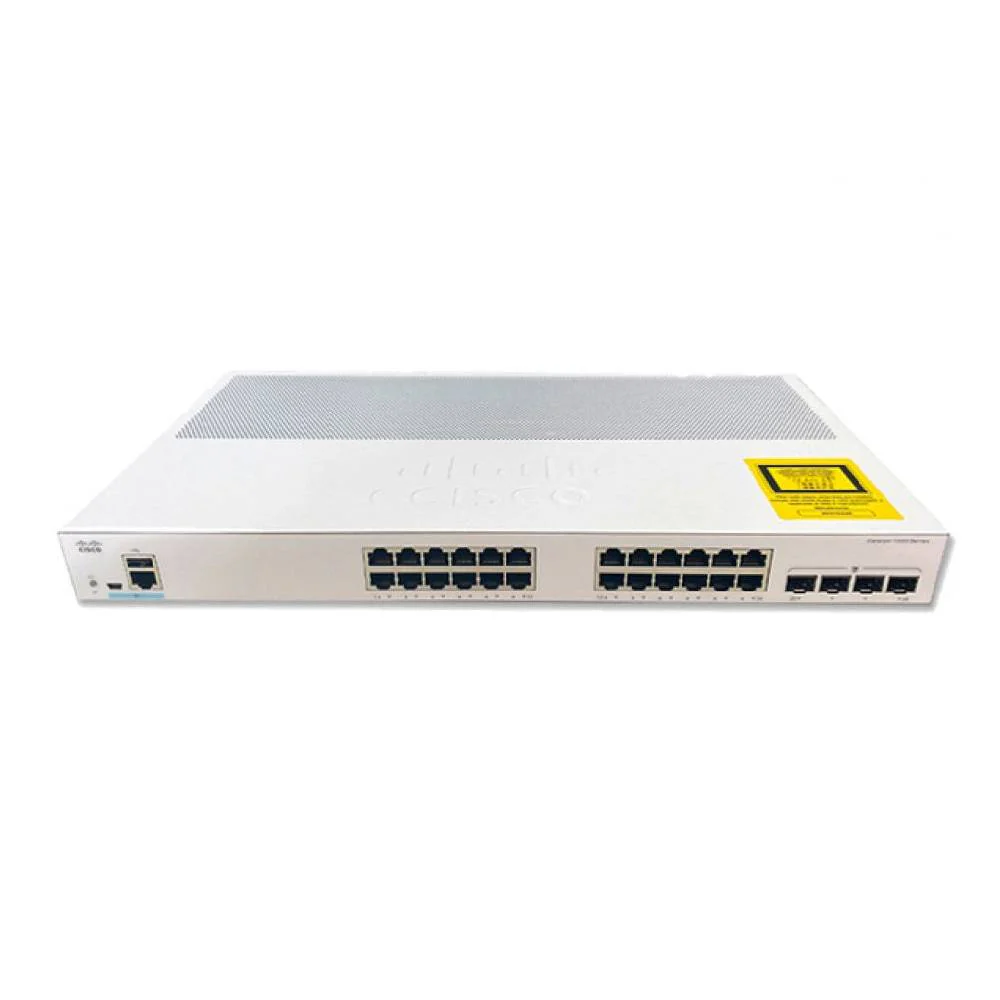

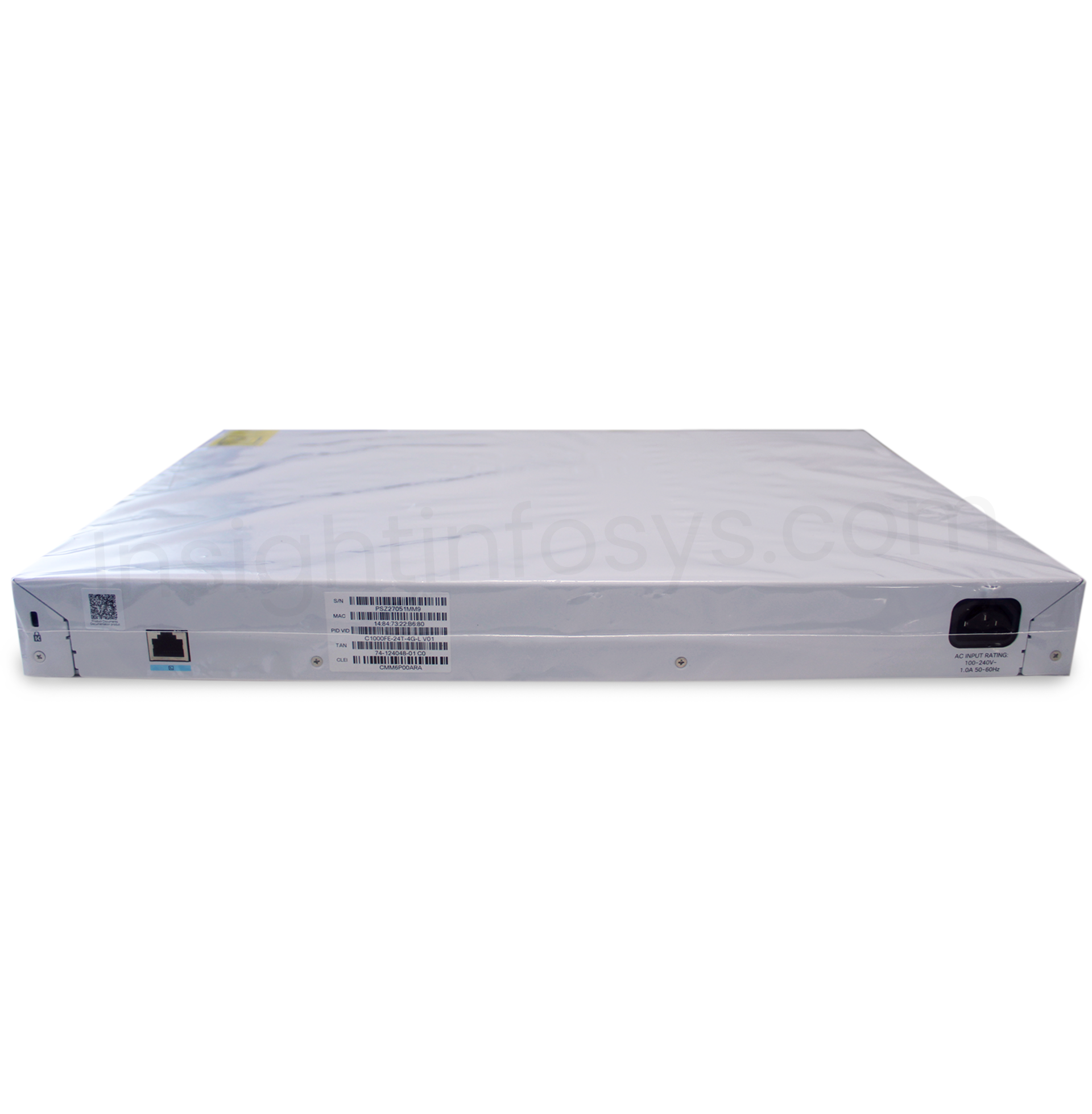

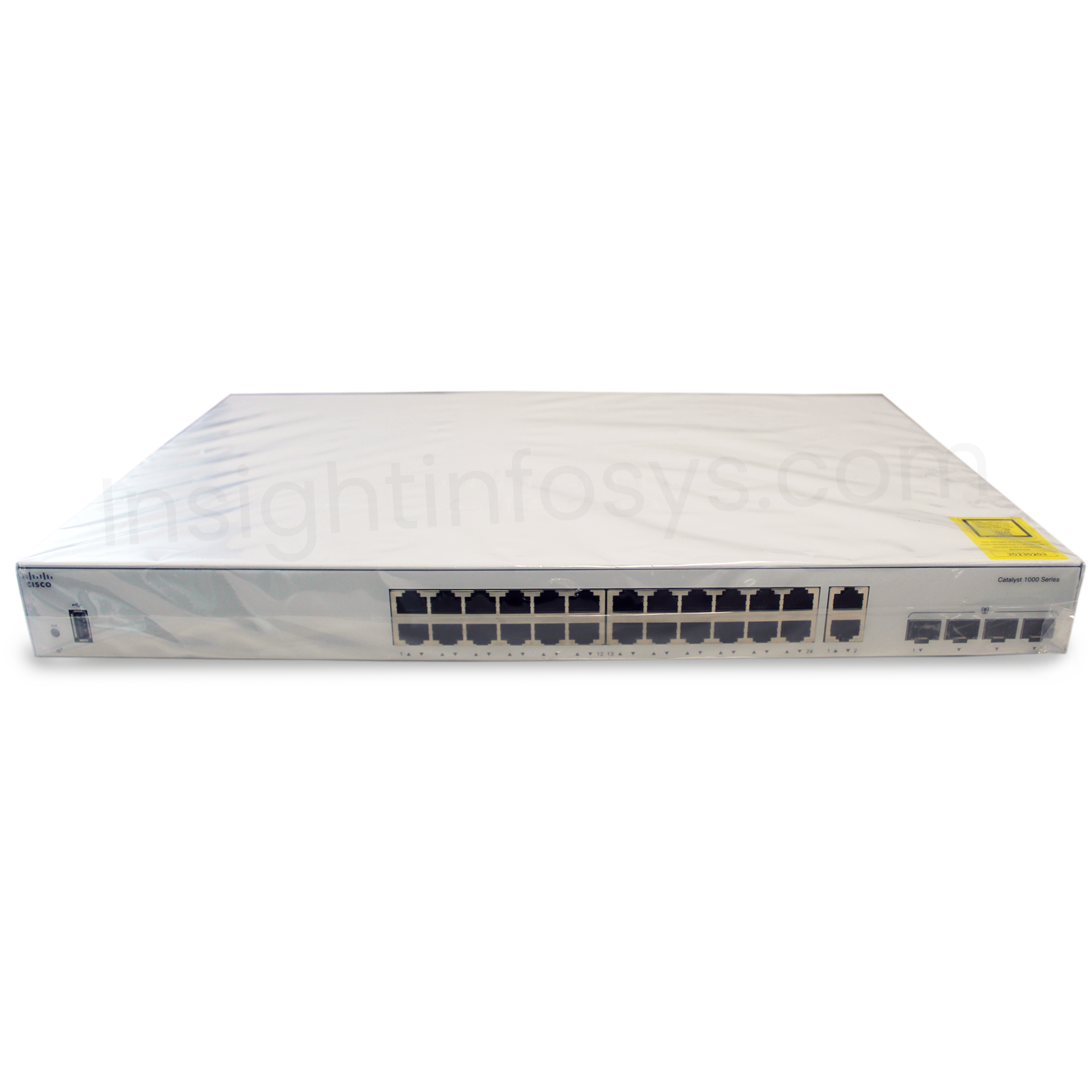

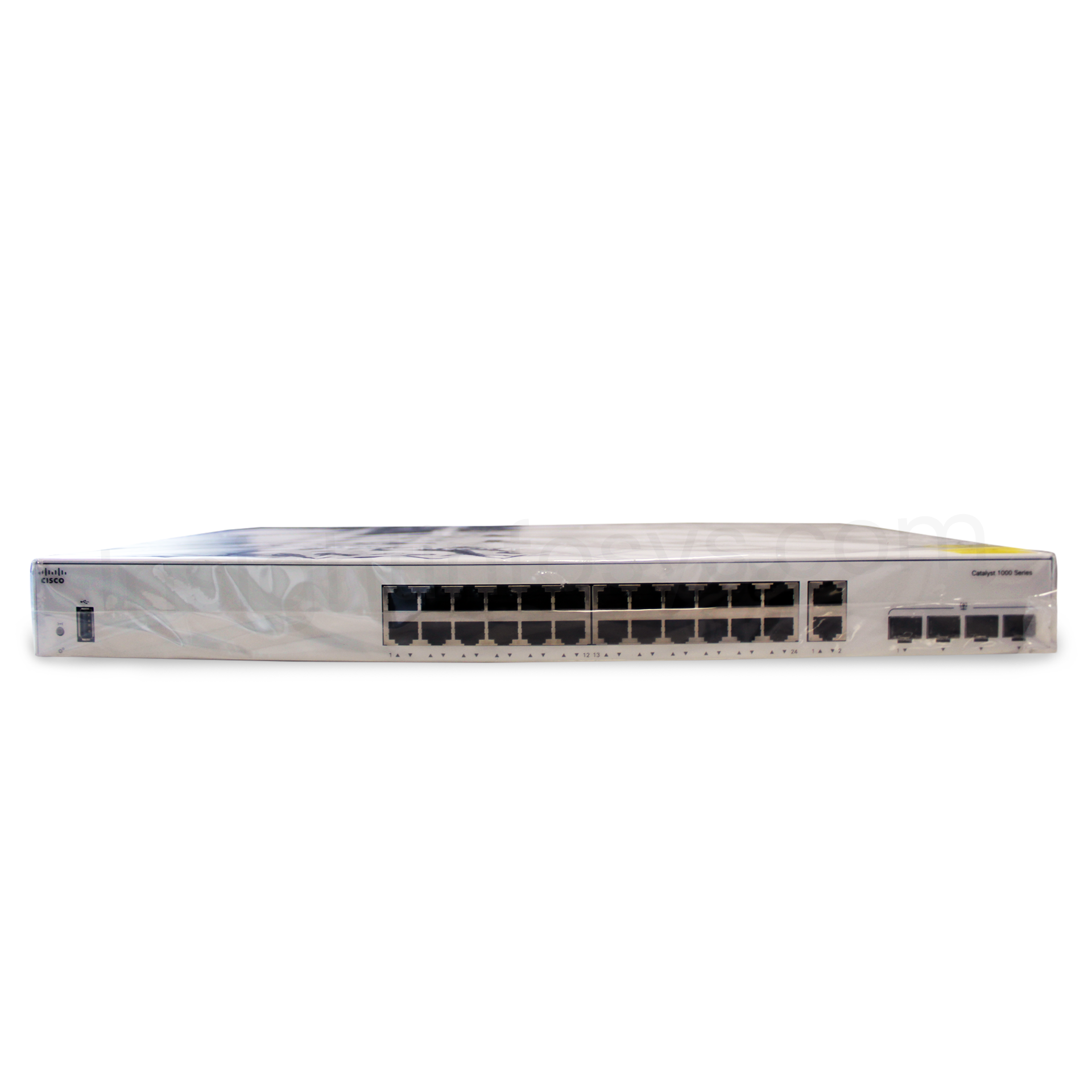

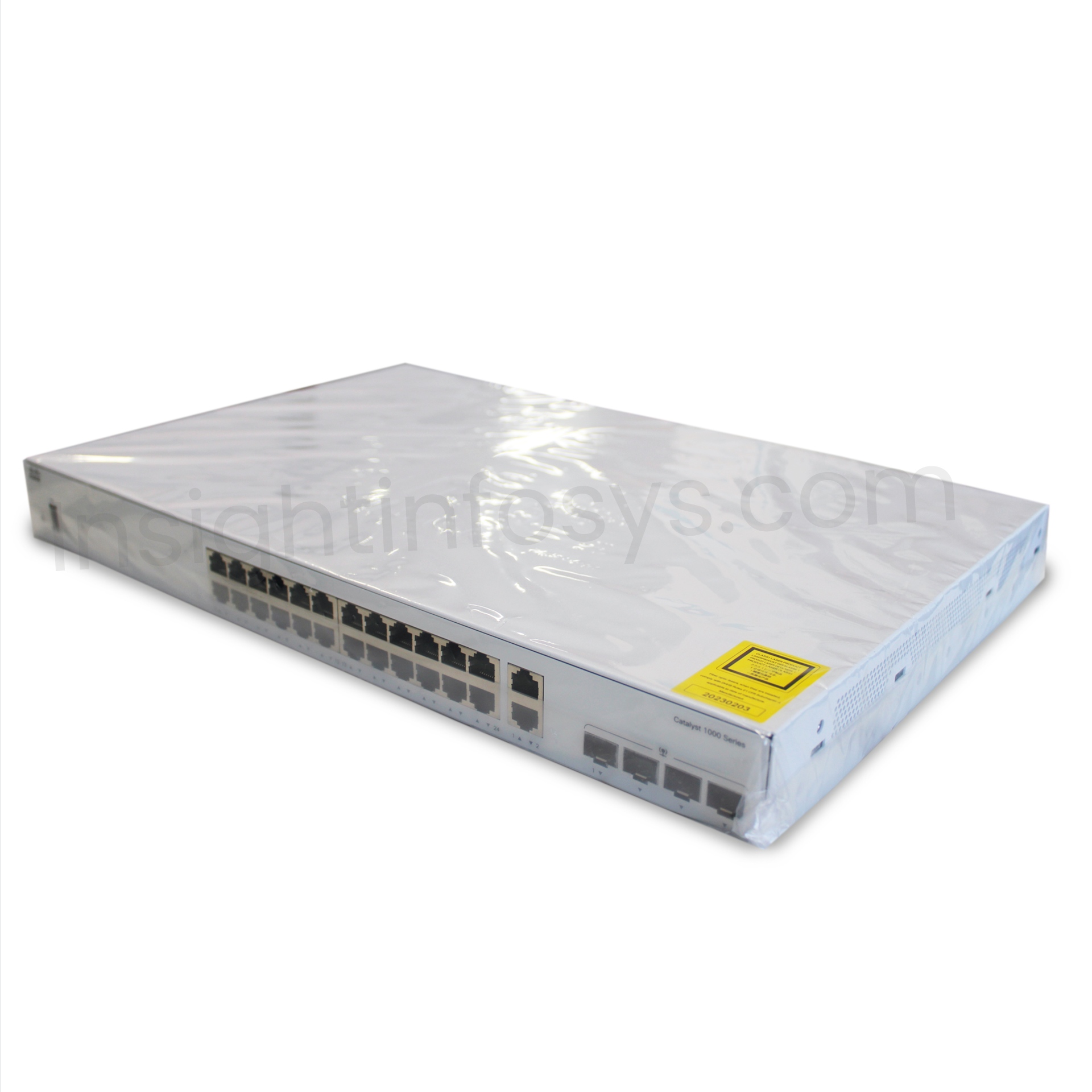

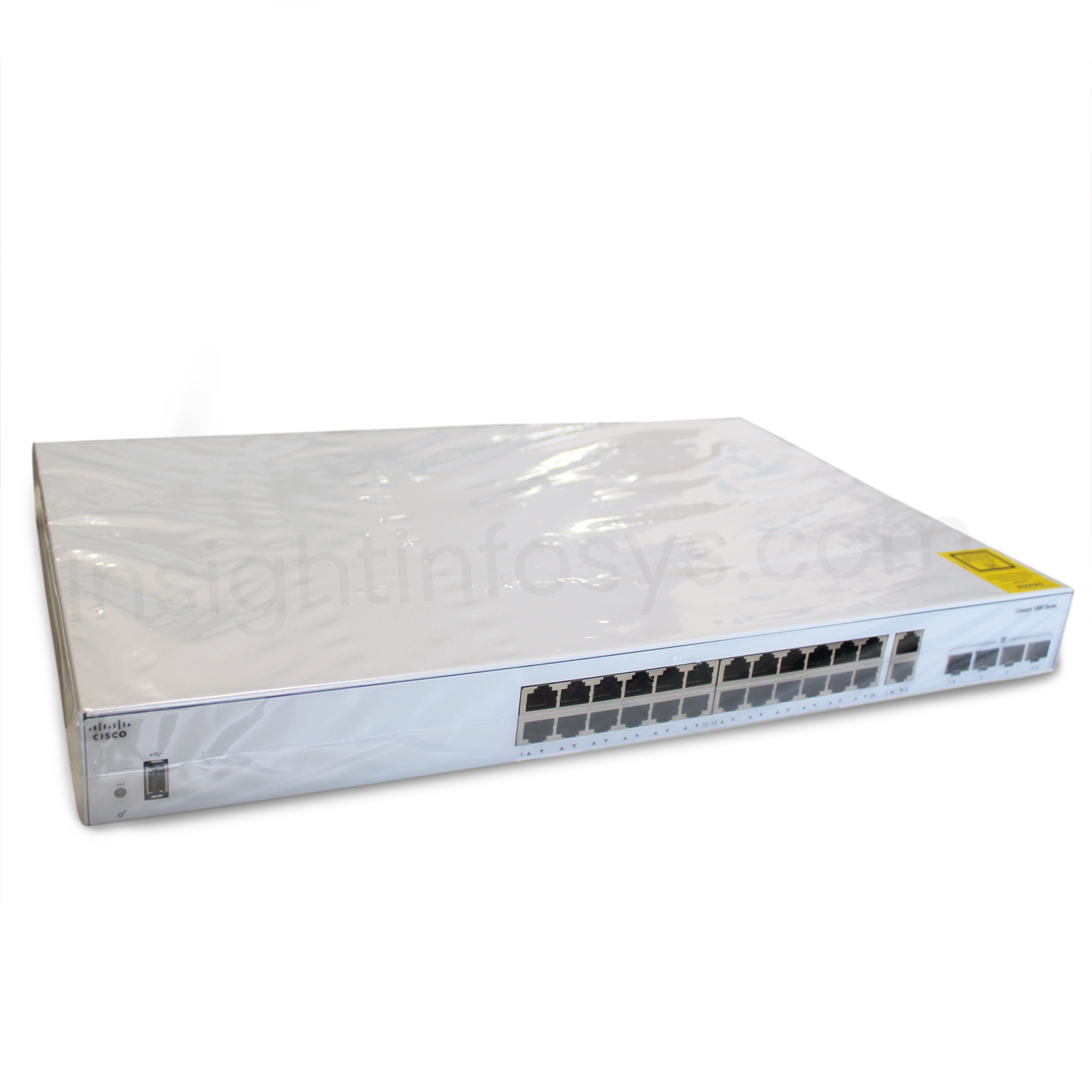

Cisco C1000FE-24T-4G-L

CISCO C1000FE-24T-4G-L

The Cisco Catalyst C1000FE-24T-4G-L is a high-performance Layer 2 Fast Ethernet switch designed for small businesses and branch offices. It includes 24 10/100 RJ45 data ports, 2 1G SFP/RJ-45 combo ports, and 2 dedicated 1G SFP uplink ports, providing versatile connectivity for a variety of network devices. Powered by an ARM v7 800 MHz CPU and equipped with 512 MB RAM and 256 MB flash memory, it delivers reliable and efficient network performance. The switch’s rack-mountable design and comprehensive management features make it ideal for professional network environments requiring stability and scalability.

KEY FEATURES:

• 24 Fast Ethernet RJ45 Ports and 4 Uplink Slots
• Switching bandwidth of 56 Gbps and Forwarding rate of 67 Mpps
• Advanced ARM v7 800 MHz processor and Advanced Layer 2 Security
• Flexible Management Options supporting CLI and an intuitive web UI
• Energy-Efficient Design with IEEE 802.3az Energy Efficient Ethernet
• Compact Rack-Mount Form Factor

SPECIFICATIONS OF C1000FE-24T-4G-L

PRODUCT DETAILS:

• Brand: Cisco
• Series: Catalyst 1000 Series
• Model Number: C1000FE-24T-4G-L
• Product Type: Managed Fast Ethernet Switch
• Item weight: 7.85 lbs (3.56 kg)
• Product Dimensions: 17.32 X 11.34 X 1.73 inches
• Color: Silver/Gray
• Manufacturer: Cisco

⇒Technical Datasheet

PERFORMANCE

The C1000FE-24T-4G-L switch handles heavy network loads with its 56 Gbps switching capacity and 28 Gbps forwarding bandwidth, facilitating rapid and accurate packet forwarding at a rate of 41.67 million packets per second. These performance metrics support multiple simultaneous network services, keeping traffic flowing efficiently and minimizing latency issues in demanding environments.

ENERGY EFFICIENCY

This switch incorporates Energy Efficient Ethernet (IEEE 802.3az), which reduces power consumption by detecting inactive ports and adjusting power levels accordingly. This helps lower operational costs and supports environmentally friendly IT practices. Additionally, its fanless design reduces power consumption and eliminates noise, making it ideal for noise-sensitive office deployments.

RELIABILITY

It is designed for durability and continuous operation with diverse capabilities such as Cisco Smart Call Home, online diagnostics, and auto-recovery for error-disabled ports. Its Mean Time Between Failures (MTBF) rate supports dependable service availability, ensuring minimal business disruption.

VERSATILITY

C1000FE-24T-4G-L easily adapts to a range of network configurations, including connections to fiber backbones and copper segments due to its mix of Fast Ethernet and flexible uplink ports. The compact, rack-mountable design supports deployment in space-constrained network closets or cabinets while its flexible management and security features address diverse organizational needs.

POWER CONSUMPTION

The switch runs on an internal power supply compatible with 120 V and 230 V AC inputs at 50/60 Hz frequencies. Its efficient hardware and software design ensure modest power use, enhanced by Energy Efficient Ethernet capabilities, contributing to lower operational expenses in business environments.

APPLICATION AREAS

This switch has wide application areas that range from small and medium-sized businesses, branch offices, educational institutions such as schools and colleges, healthcare facilities including hospitals and clinics, retail stores, hospitality venues, small office/home office (SOHO) setups, manufacturing and industrial environments, Internet of Things (IoT) deployments, and remote or distributed network locations.

CONCLUSION

The Cisco Catalyst C1000FE-24T-4G-L combines reliable performance, flexible connectivity, and comprehensive security in a compact, energy-efficient design. Ideal for small to medium-sized enterprises and branch offices, it offers professional-grade networking features with easy management, making it a valuable asset for modern network infrastructures.
