UniFi Dream Machine Pro Max

Ubiquiti UniFi Dream Machine Pro Max (UDM Pro Max)

The Ubiquiti UniFi Dream Machine Pro Max (UDM Pro Max) is a high-performance, rack-mountable (1U) cloud gateway designed for managing extensive UniFi networks in enterprise and professional environments. It integrates the full UniFi Application Suite, including Network, Protect, Access, Talk, and Connect, supporting over 200 UniFi devices, up to 50 HD, 25 2K, or 15 4K managed cameras, and 2,000+ simultaneous connected users. It features an aluminum CNC and SGCC steel enclosure with SGCC steel mounting, a quad-core. It supports up to 8 WAN ports, including default 10G SFP+ and 2.5 GbE RJ45, and is managed via Ethernet, making it ideal for scalable, secure deployments in diverse settings.

KEY FEATURES:

• Powerful 10-core ARM Cortex-A57 CPU at 2.2 GHz paired with 32 GB RAM for unmatched processing power
• Advanced UniFi Network Controller pre-installed with support for thousands of clients and devices
• 8 x 1 Gbps Ethernet ports plus 2 x 10G SFP+ ports for high-speed connectivity and uplinks
• Multi-WAN support with failover and load balancing for uninterrupted internet connectivity
• Integrated UniFi Application Suite that manages Network, Protect, Access, Talk, and Connect for centralized control of over 200 UniFi devices and 2,000+ simultaneous users.
• VPN Capabilities that support VPN server/client with Teleport zero-configuration VPN, OpenVPN, WireGuard, and L2TP for flexible remote access.
• Flexible Connectivity that leverages 8 1 GbE RJ45 ports, 1 2.5 GbE RJ45 port, and 2 10G SFP+ ports for high-speed wired connections.
• NDAA Compliance with CE, FCC, IC, Anatel, and SRRC certifications for secure deployments

SPECIFICATIONS OF UDM PRO MAX

PRODUCT DETAILS

• Brand: Ubiquiti

• Model Number: UniFi Dream Machine Pro Max (UDM Pro Max)

• Product Type: Enterprise Security Gateway and Network Controller

• Item Weight: 4.7 kg (10.4 lbs)

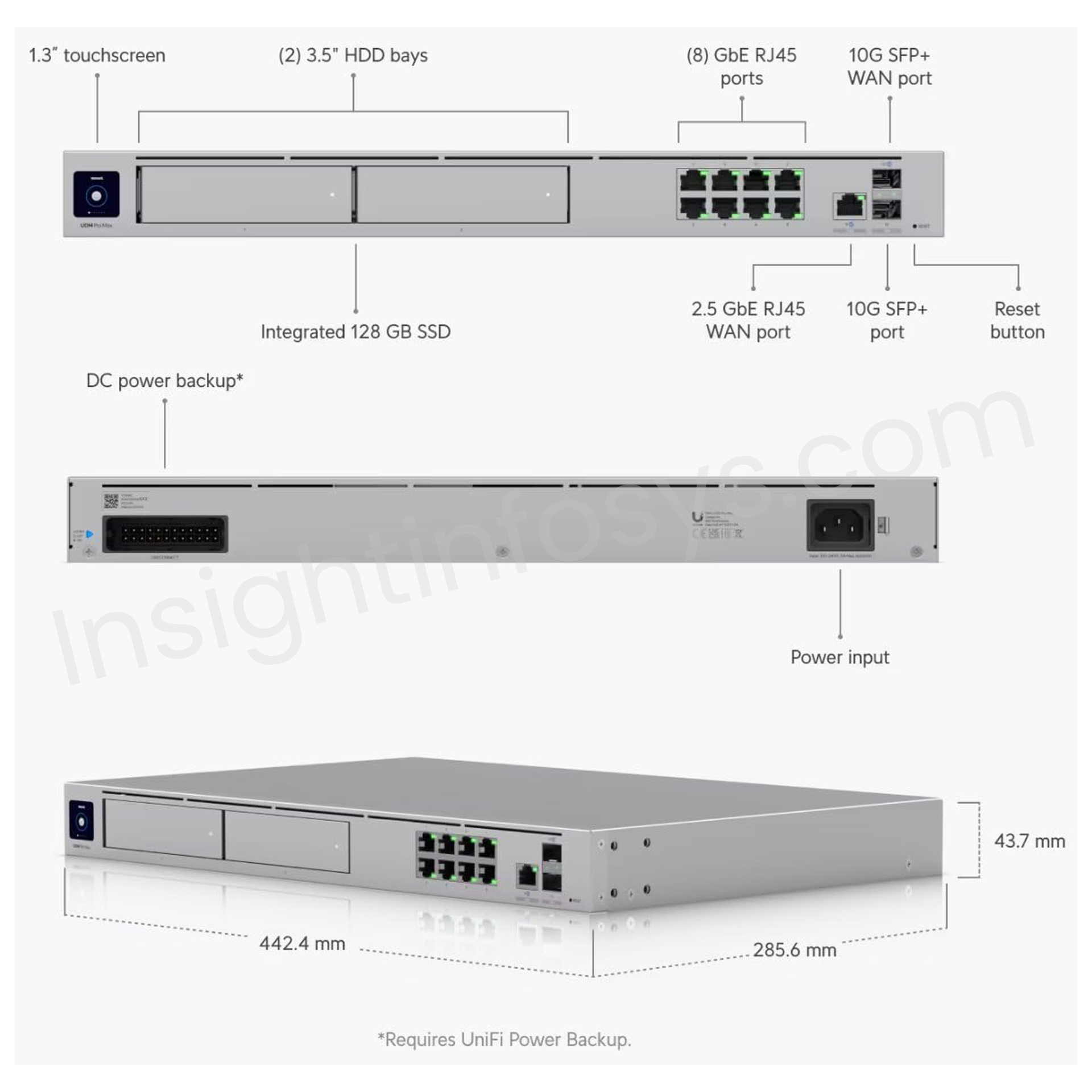

• Product Dimensions: 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2 inches)

• Color: White

• Manufacturer: Ubiquiti Inc.

⇒Technical Datasheet

PERFORMANCE

The UniFi Dream Machine Pro Max delivers robust performance with IDS/IPS throughput of 5 Gbps, enabling deep packet inspection and threat prevention at scale for networks supporting 2,000+ users and 200+ devices. It handles advanced routing protocols like OSPF and BGP, multi-WAN load balancing, and policy-based VPN/WAN routing with a 4,000-entry MAC address table, while the quad-core 2.0 GHz processor and 8 GB RAM ensure smooth management of UniFi applications, camera feeds, and traffic segmentation. The 10G SFP+ and 2.5 GbE ports provide high-speed connectivity, complemented by features like advanced QoS and IGMP proxy for optimized multicast and real-time applications in demanding enterprise scenarios.

POWER CONSUMPTION

The Ubiquiti UniFi Dream Machine Pro Max (UDM-Pro-Max) has a maximum power consumption of 60W, according to its official technical specifications from Ubiquiti. This figure represents the total power the device itself can draw, excluding any additional hardware like hard drives. The UDM-Pro-Max’s maximum power consumption is slightly higher than its predecessor, the UDM Pro (non-Max), which has a maximum consumption of 33W. This increase reflects the UDM-Pro-Max’s enhanced processing power, larger system memory, and additional NVR storage bay, which allow it to handle more UniFi devices and higher network loads.

RELIABILITY

The UniFi Dream Machine Pro Max ensures reliability with an operating temperature range of -10 to 40° C (14 to 104° F) and 5 to 95% noncondensing humidity tolerance, making it suitable for data centers and varied indoor conditions. Its aluminum CNC and SGCC steel construction, combined with ESD/EMP protection with high availability, DC power backup, and internet failover with UniFi LTE, ensures minimal downtime. NDAA compliance and certifications (CE, FCC, IC, Anatel, SRRC) affirm its security and electromagnetic compatibility.

ENERGY CONSUMPTION

It is designed for efficient power usage with a maximum consumption of 60W, supported by an internal 100W AC/DC power supply and a universal AC input of 100—240V AC at 2A max (50/60 Hz), along with a USP-RPS DC input option at 11.5V DC and 8.7A. This design minimizes energy demands in high-throughput environments while providing redundancy through DC power backup, ensuring reliable operation without high operational costs in rack-mounted deployments.

APPLICATION AREAS

It is an ideal fit for enterprise environments, data centers, schools, colleges, offices, hospitals, hotels, cafes, restaurants, retail stores, warehouses, stadiums, airports, co-working spaces, libraries, convention centers, public venues, government facilities, manufacturing plants, shopping malls, apartment complexes, and universities.

CONCLUSION

The UniFi Dream Machine Pro Max is a perfect fit for scalable enterprise networking, combining 5 Gbps IDS/IPS throughput, support for 2,000+ users and 200+ devices across schools, offices, hospitals, and more, with integrated UniFi apps and license-free SD-WAN/VPN. Its energy-efficient 60W PoE+ operation, advanced security like zone-based isolation and RadSec, and high-availability features ensure robust performance and reliability at a competitive price. NDAA-compliant with 10G ports and easy rack-mount setup, it future-proofs deployments without ongoing licensing costs.
