(RB941-2nD) hAP lite TC

Specifications

Details
RB941-2nD Product code	RB941-2nD-TC
Architecture	SMIPS
CPU	QCA9533
CPU core count	1
CPU nominal frequency	650 MHz
RouterOS license	4
Operating System	RouterOS
Size of RAM	32 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 100’000 hours at 25C
Tested ambient temperature	-20°C to 70°C
Suggested price	$21.95

Wireless capabilities

Details
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	1.5
Wireless 2.4 GHz chip model	QCA9533
Wireless 2.4 GHz generation	Wi-Fi 4

Ethernet

Details
10/100 Ethernet ports	4

Powering

Details
MicroUSB input Voltage	5-5 V
Number of DC inputs	1 (MicroUSB)
Max power consumption	3.5 W
FAN count	Passive

Certification & Approvals

Details
Certification	FCC, IC

Wireless specifications

2.4 GHz	Transmit (dBm)	Receive Sensitivity
1MBit/s	22	-96
11MBit/s	22	-89
6MBit/s	20	-93
54MBit/s	18	-74
MCS0	20	-93
MCS7	16	-71

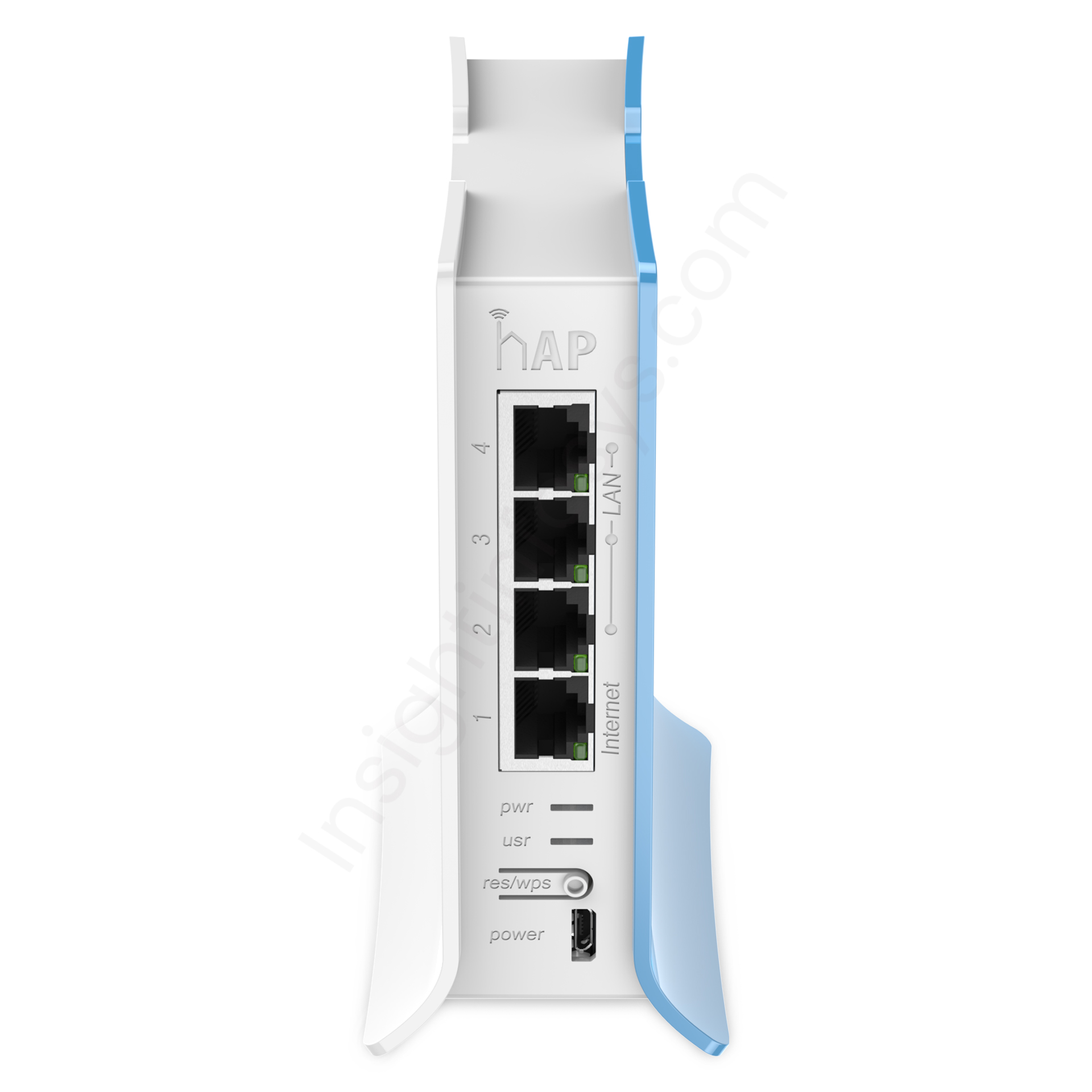

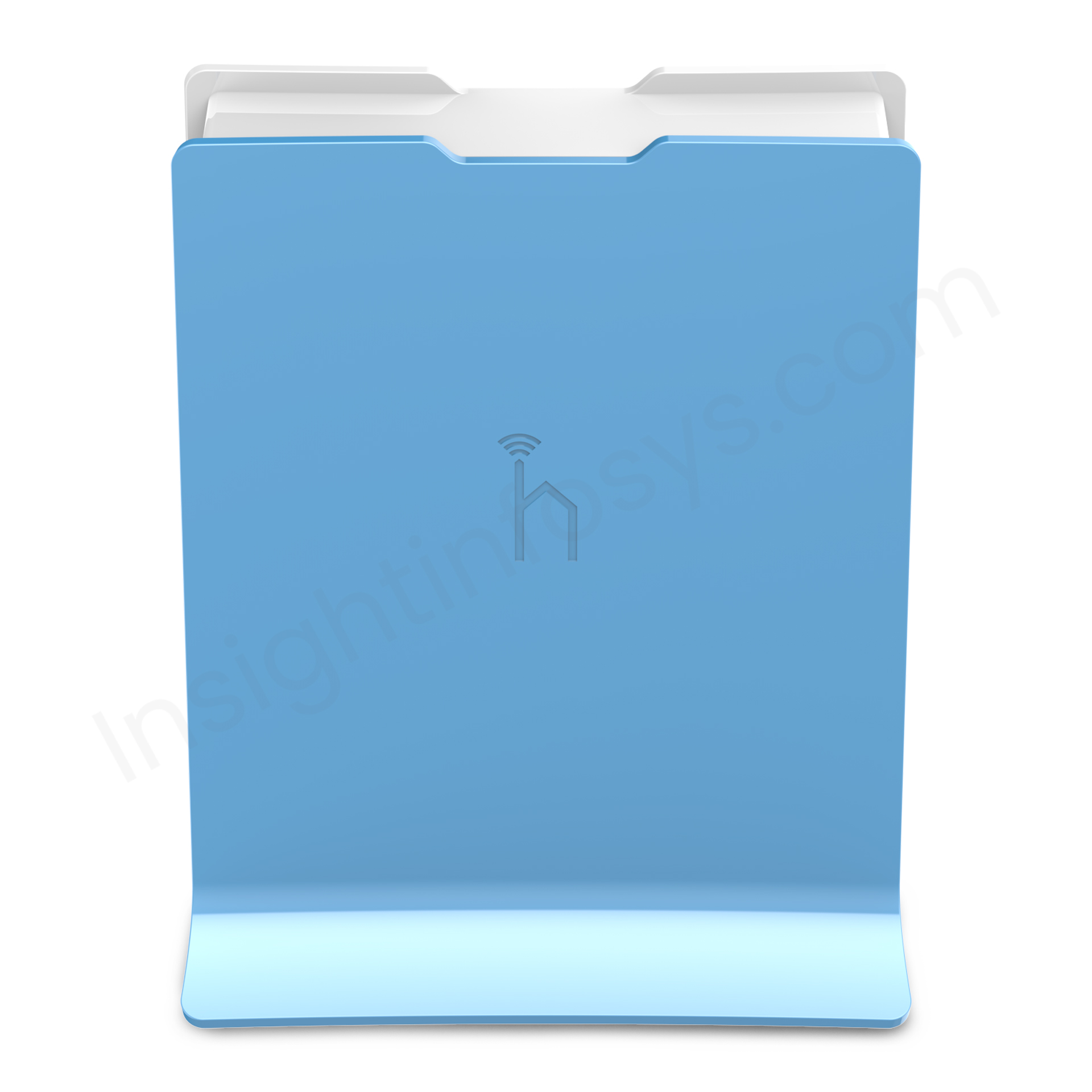

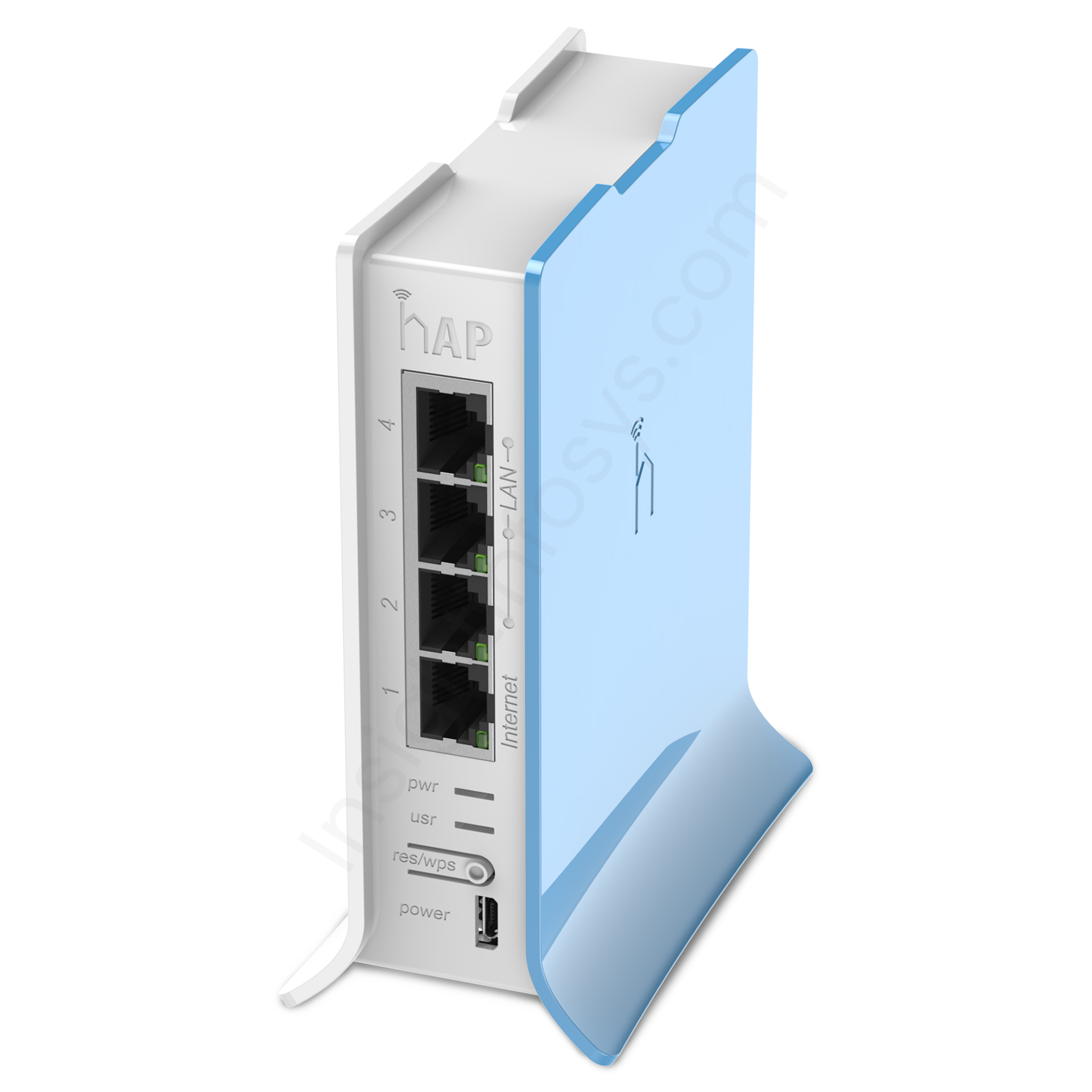

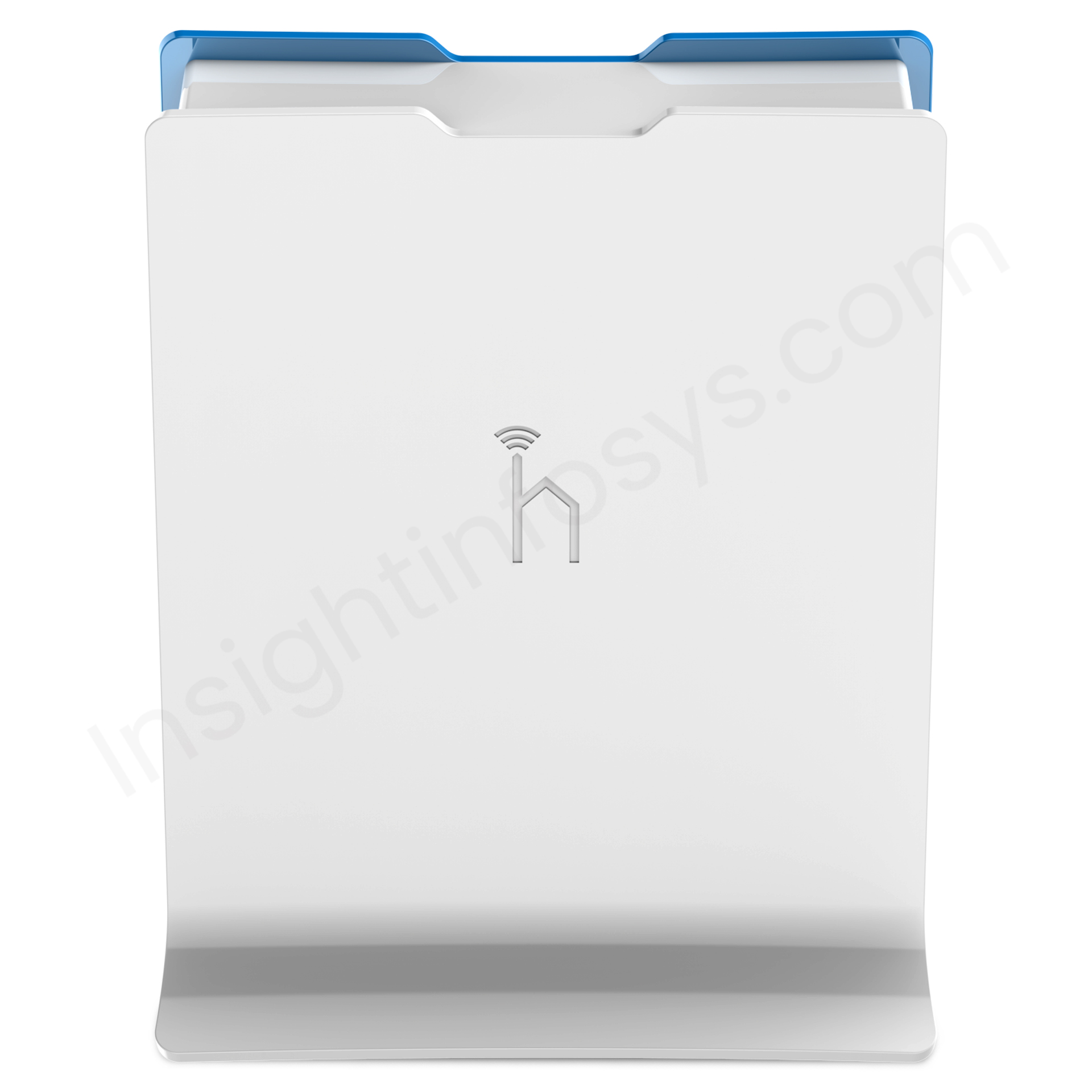

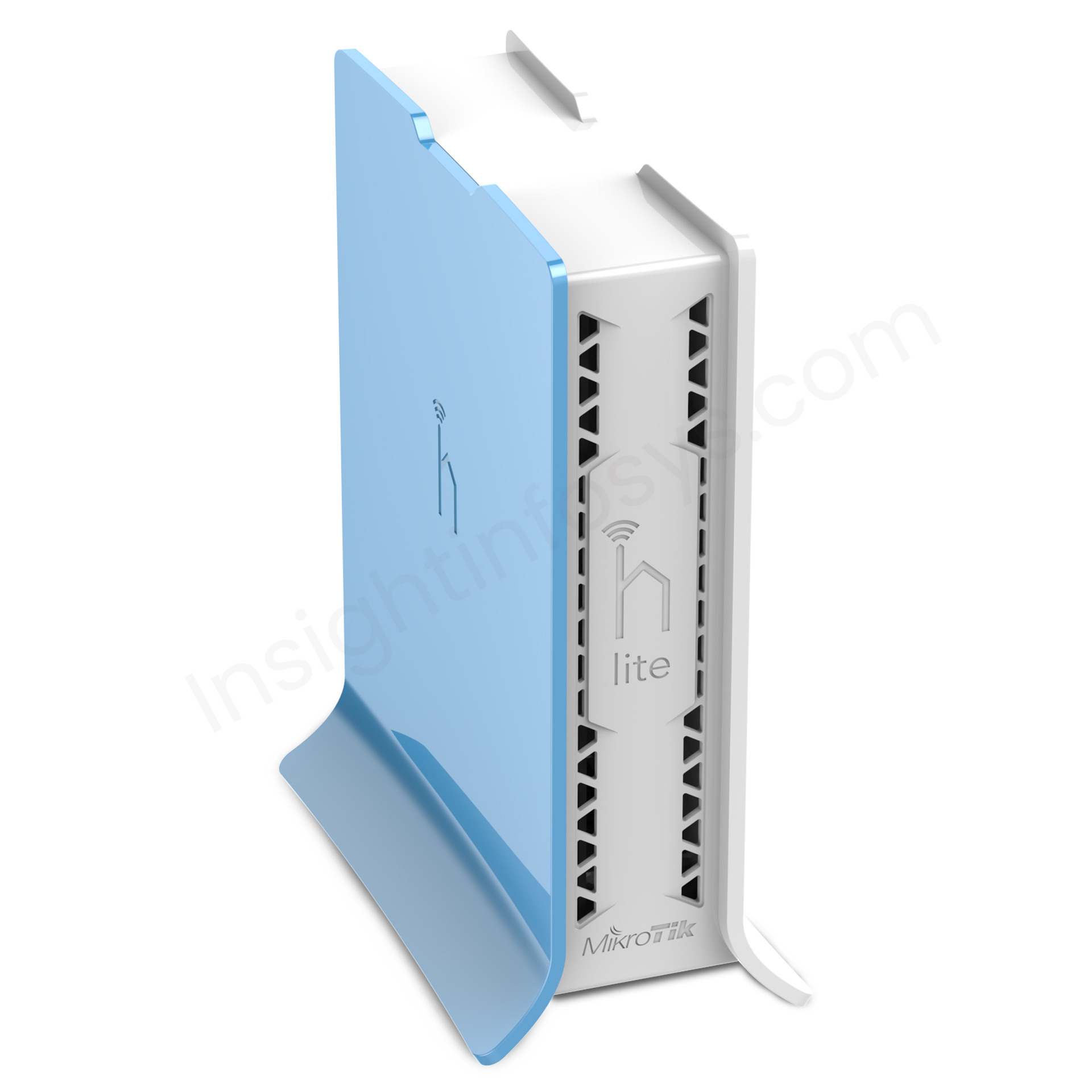

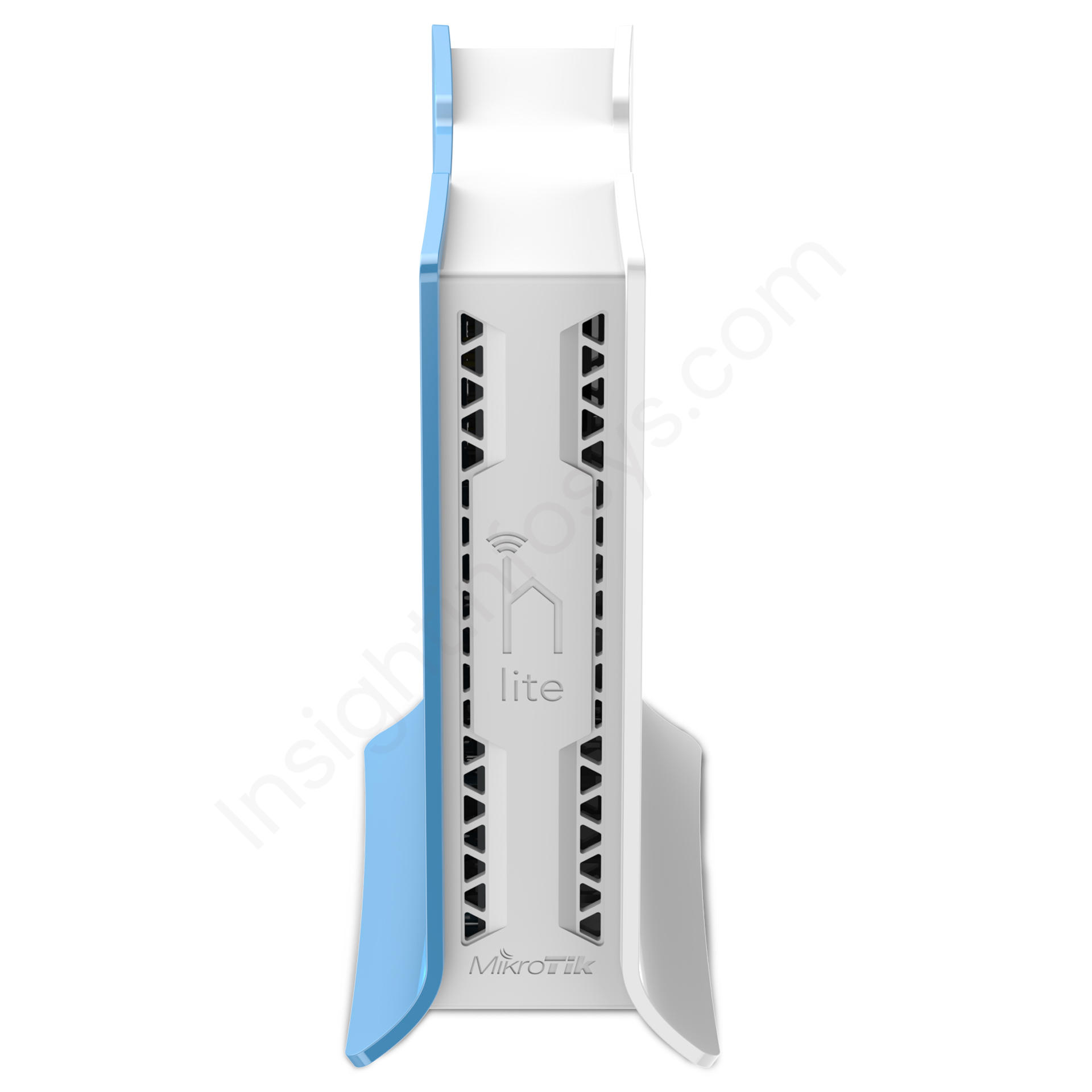

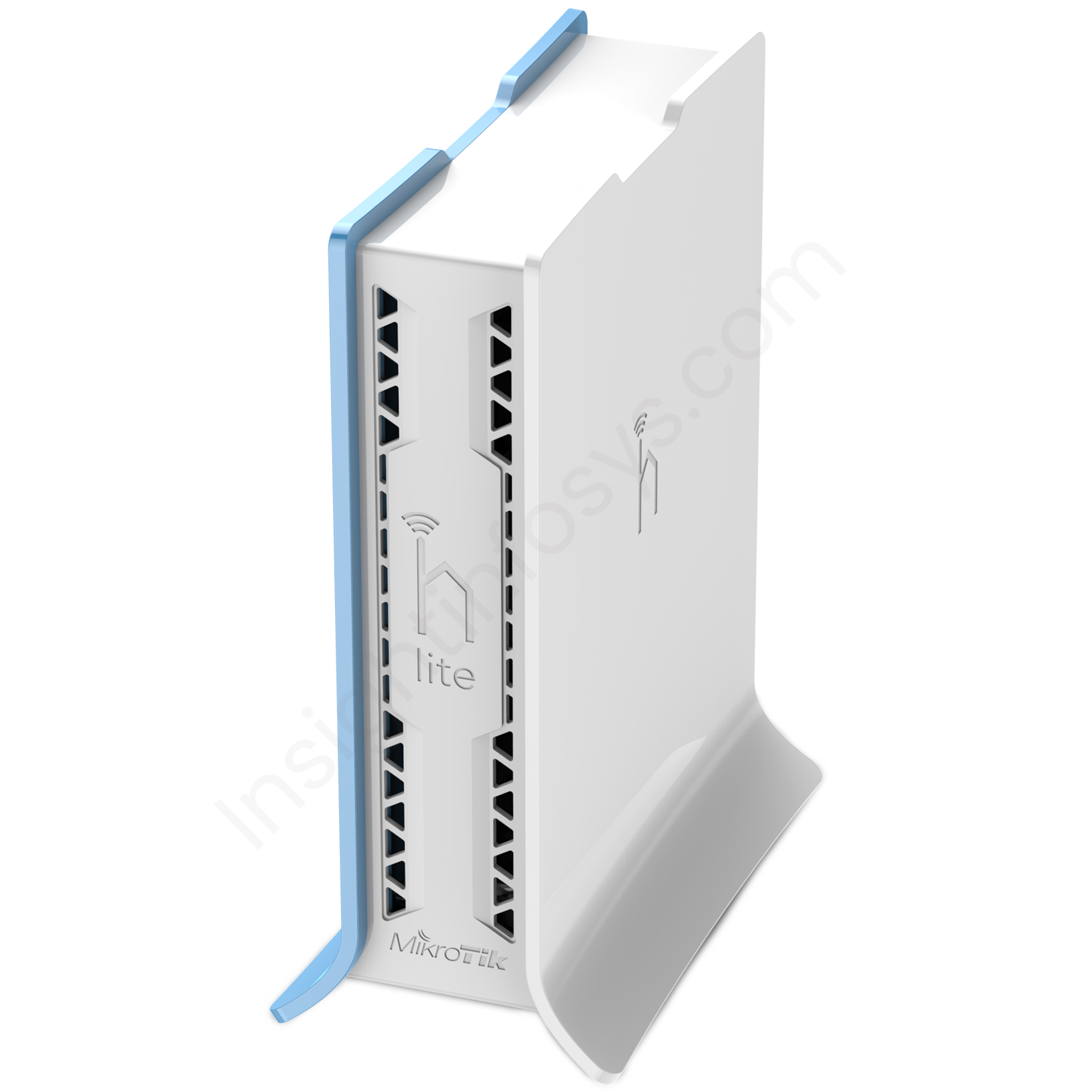

MikroTik RB941-2nD-TC (hAP lite)

The MikroTik RB941-2nD-TC (hAP lite) is an ideal wireless access point for home and small office use. Compact and sleek, this device offers reliable and efficient performance, making it a perfect solution for users who need a dependable wireless network.

Equipped with a 650 MHz CPU and 32 MB of RAM, the RB941-2nD-TC ensures smooth and fast processing. It features four 10/100 Ethernet ports for versatile connectivity options. The wireless capabilities include 2.4 GHz 802.11b/g/n standards with a max data rate of 300 Mbit/s, ensuring a robust and stable wireless connection.

This access point operates on RouterOS with a level 4 license, providing extensive configuration options and advanced features. The device is powered via a MicroUSB input with a voltage range of 5V, making it energy-efficient with a maximum power consumption of just 3.5W. It also boasts a passive cooling system, ensuring quiet and efficient operation.

Key Features of RB941-2nD

• High Performance: Powered by a 650 MHz CPU and 32 MB of RAM.
• Versatile Connectivity: Four 10/100 Ethernet ports.
• Reliable Wireless: 2.4 GHz 802.11b/g/n standards with a max data rate of 300 Mbit/s.
• Compact Design: Sleek and space-saving.
• Energy Efficient: Low power consumption with a maximum of 3.5W.
• RouterOS Operating System: Advanced features and extensive configuration options.
• Passive Cooling: Quiet and efficient operation.

Specifications of RB941-2nD

Product Details

• Product Code: RB941-2nD-TC
• Architecture: SMIPS
• CPU: QCA9533
• CPU Core Count: 1
• CPU Nominal Frequency: 650 MHz
• RouterOS License: 4
• Operating System: RouterOS
• Size of RAM: 32 MB
• Storage Size: 16 MB
• Storage Type: FLASH
• MTBF: Approximately 100,000 hours at 25°C
• Tested Ambient Temperature: -20°C to 70°C
• Suggested Price: $21.95

Wireless Capabilities

• Wireless 2.4 GHz Max Data Rate: 300 Mbit/s
• Wireless 2.4 GHz Number of Chains: 2
• Wireless 2.4 GHz Standards: 802.11b/g/n
• Antenna Gain dBi for 2.4 GHz: 1.5
• Wireless 2.4 GHz Chip Model: QCA9533
• Wireless 2.4 GHz Generation: Wi-Fi 4

Ethernet

• 10/100 Ethernet Ports: 4

Powering

• MicroUSB Input Voltage: 5V
• Number of DC Inputs: 1 (MicroUSB)
• Max Power Consumption: 3.5W
• FAN Count: Passive

Certification & Approvals

• Certification: FCC, IC

Wireless Specifications (2.4 GHz)

• Transmit (dBm) / Receive Sensitivity:
  • 1 MBit/s: 22 / -96
  • 11 MBit/s: 22 / -89
  • 6 MBit/s: 20 / -93
  • 54 MBit/s: 18 / -74
  • MCS0: 20 / -93
  • MCS7: 16 / -71

Conclusion

The MikroTik RB941-2nD-TC (hAP lite) is a powerful and compact access point designed for home and small office use. With its advanced features, reliable performance, and energy-efficient design, it provides an excellent solution for users seeking a dependable and versatile wireless network.
