CBS350-24T-4X

CBS350-24T-4X

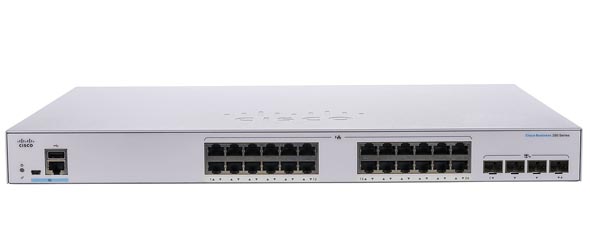

The Cisco CBS350-24T-4X is a managed switch designed for small to medium-sized business networks requiring high performance, security, and scalability. It features 24 Gigabit Ethernet ports and 4 10G SFP+ uplink ports, supporting full Layer 2 and Layer 3 capabilities. The switch offers an intuitive web dashboard for easy management and is built to deliver reliable connectivity with advanced networking features and Power over Ethernet (PoE) support, making it ideal for businesses transitioning to more demanding network environments.

Key Features

• 24 Gigabit Ethernet ports for robust network device connectivity
• 4 10G SFP+ uplink ports for high-speed fiber optic connections
• Full Layer 2 and basic Layer 3 routing capabilities including dynamic routing
• Advanced security features such as IEEE 802.1X, DHCP snooping, IP Source Guard, ARP inspection
• Power over Ethernet (PoE+) support for powering IP phones, wireless access points, and other PoE devices
• Support up to 4,094 VLANs and advanced VLAN management
• QoS and traffic prioritization to optimize voice, video, and data applications
• Fanless design for quieter and energy-efficient operation

SPECIFICATION OF CBS350-24T-4X

PRODUCT DETAILS

• Brand: Cisco
• Series: Cisco Business 220 Series
• Model Number: CBS220-24T-4X
• Product Type:
• Item Weight:
• Product Dimensions:
• Color: Grey
• Manufacturer: Cisco

⇒Technical Datasheet

PERFORMANCE

The CBS350-24T-4X delivers a switching capacity of 128 Gbps and a forwarding rate of 190.4 million packets per second (Mpps), ensuring wire-speed performance across all ports. The device supports wirespeed IPv4 and IPv6 routing with up to 990 static routes and 128 IP interfaces. Its hardware and software features facilitate high throughput with low latency, suitable for demanding enterprise traffic loads and applications.

RELIABILITY

The Cisco CBS350-24T-4X is designed for mission-critical business networks requiring 24/7 availability. It supports dual images, allowing software upgrades without downtime or network interruptions, ensuring continuous business operations. The switch features comprehensive security protocols and hardware failover protection to safeguard against unauthorized access, configuration errors, and network disruptions. Built with high-quality components and backed by a limited lifetime warranty and next-business-day advance replacement, the CBS350-24T-4X provides dependable performance, minimizing maintenance and maximizing uptime in demanding small to medium business environments.

ENERGY EFFICIENCY

This switch complies with Energy Efficient Ethernet (IEEE 802.3az), reducing power consumption during periods of low data activity. It features smart power management options like automatic power shutoff on ports with no active link and signal strength adjustment based on cable length, optimizing energy use while maintaining network performance.

APPLICATION AREAS

This switch supports a broad range of application areas including small to medium-sized corporate offices, branch offices, remote offices, open-plan offices, co-working spaces, executive suites, and home offices. It is also widely used in retail stores, hotels, hospitality venues, educational campuses including classrooms and administrative offices, healthcare facilities, data centers, and multi-tenant residential buildings. It is also an ideal fit include industrial environments,

wireless LAN deployments, video surveillance systems with PoE cameras, cloud application delivery setups, network closets, and businesses requiring secure guest networking and network segmentation for efficient resource management.

CONCLUSION

The Cisco CBS350-24T-4X managed switch is designed with high port density, advanced Layer 2/3 features, strong security, Power over Ethernet, and energy-efficient design. It provides a scalable, reliable foundation for growing small and medium businesses, enabling them to meet current connectivity needs while remaining ready for future network demands.
